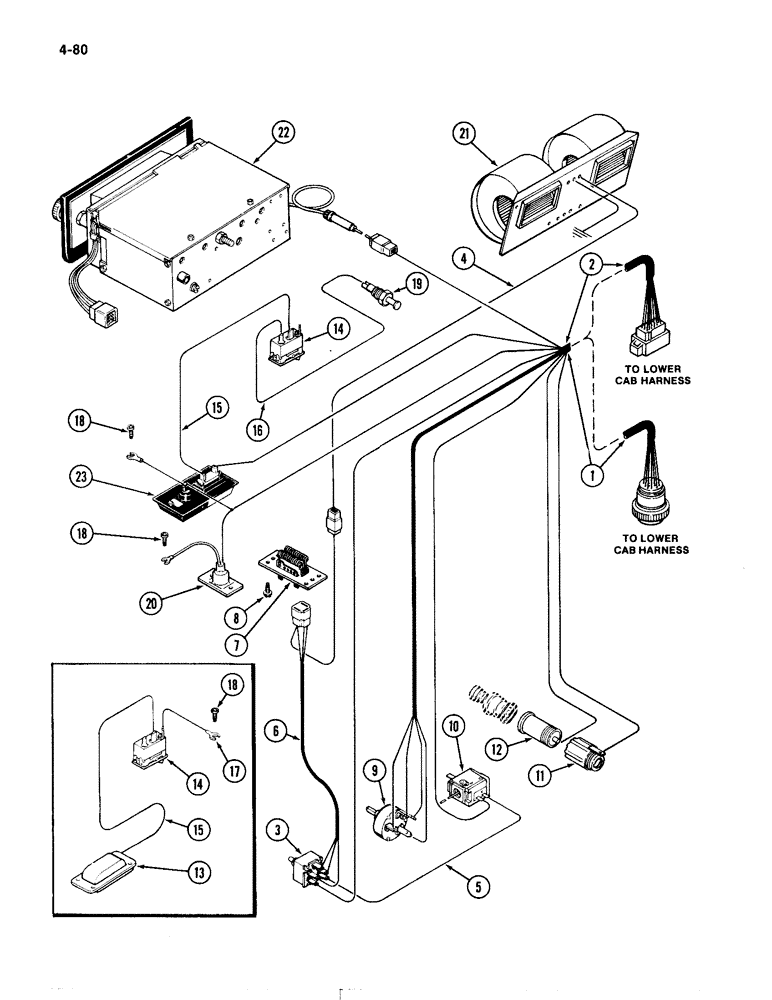

Запчасти Case IH 4490 (4-080) - CAB, HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F98195

HARNESS

ASSEMBLY - headliner wiring (Cab Serial Number 12036610 and after)

1шт.

1

F64546

HARNESS

ASSEMBLY - headliner wiring (Cab Serial Number 12033908 to Serial Number 12036610)(Order F98195)

1шт.

2

F64478

HARNESS

ASSEMBLY - headliner wiring (Prior to Cab Serial Number 12033908)

1шт.

3

REF

INSTRUCTION

SWITCH - blower (See Figure 9-424)

1шт.

4

F64443

ELECTRICAL WIRE

WIRE - switch to blower motor, red 88" (2235.2 mm)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - blower switch to air conditioner switch, black 6" (152.4 mm)

1шт.

6

F64222

HARNESS

- wire, blower switch resister (1st used Cab Serial Number 12016090)

1шт.

7

F44900

RESISTOR

RESISTER - voltage (1st used Cab Serial Number 12016090)

1шт.

8

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self tapping, #10-16 x 1/2" washer head

2шт.

9

REF

INSTRUCTION

SWITCH - wiper (See Figure 9-424)

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioner (See Figure 9-424)

1шт.

11

REF

INSTRUCTION

SHELL - lighter socket (See Figure 9-424)

1шт.

12

REF

INSTRUCTION

SOCKET - lighter (See Figure 9-424)

1шт.

13

REF

INSTRUCTION

LAMP - dome (See Figure 9-406)(Prior Cab Serial Number 12036610)

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 9-406)

1шт.

15

F64126

ELECTRICAL WIRE

WIRE - switch to lamp, black 4" (101.6 mm) (Prior to Cab Number 12036610)

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch, white 70" (1778 mm)

1шт.

17

F64476

WIRE - switch to ground, black 15" (381 mm) (prior to Cab Serial Number 12036610)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" Phillips pan head

1шт.

19

F63895

SWITCH

- lamp, door opening

1шт.

20

REF

INSTRUCTION

LAMP - console (See Figure 9-406 and 9-408)

1шт.

21

REF

INSTRUCTION

BLOWER ASSEMBLY - cab air (See Figure 9-412 and 9-414)

1шт.

22

REF

INSTRUCTION

RADIO - (See Figure 9-430 and 9-432)

1шт.

23

REF

INSTRUCTION

LAMP - dome (See Figure 9-408)(Cab Serial Number 12036610 and after)

1шт.
