Запчасти Case IH 4490 (4-078) - CAB, LOWER WIRING HARNESS (04) - ELECTRICAL SYSTEMS

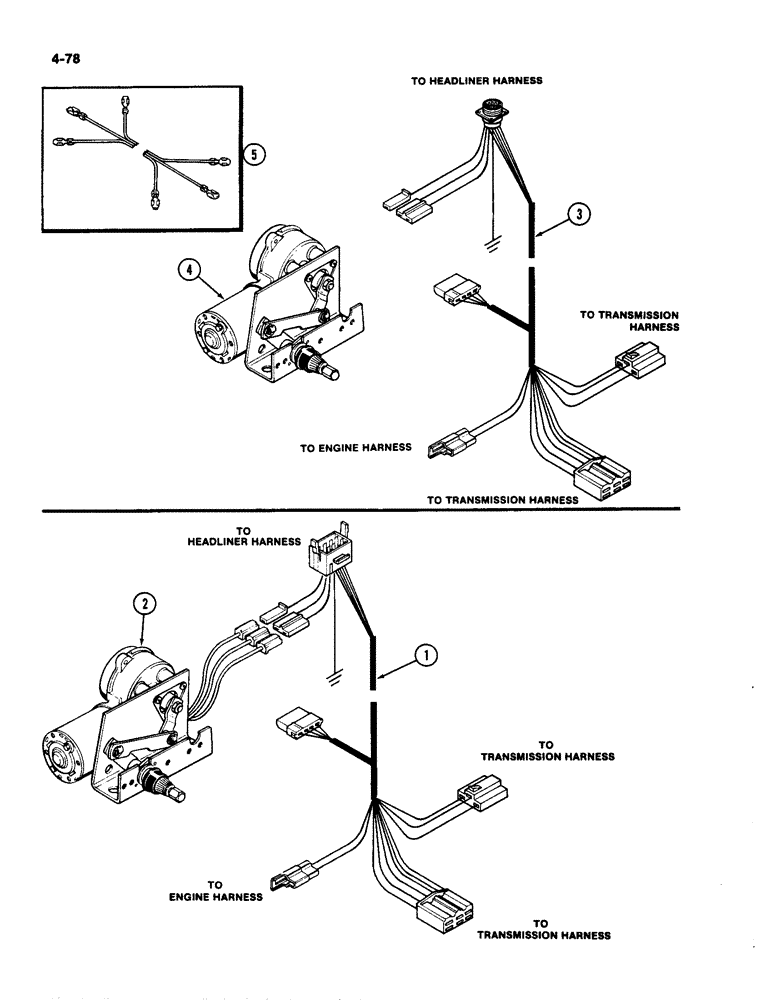

Схема запчастей Case IH 4490 - (4-078) - CAB, LOWER WIRING HARNESS (04) - ELECTRICAL SYSTEMS
2
1
5
3
4

Артикул

Название

Примечание

Количество

1

F64442

HARNESS

ASSEMBLY - lower, cab wiring, prior to cab serial no. 12033908

1шт.

2

F98108

WIPER

ASSEMBLY - windshield (See Figure 9-426) (Order F96764, F64530 and F64524), prior to cab serial no. 12033908

1шт.

3

F64524

HARNESS

ASSEMBLY - lower cab wiring, cab serial no. 12033908 and after

1шт.

4

F96764

WIPER

ASSEMBLY - windshield (See Figure 9-428), cab serial no. 12033908 and after

1шт.

5

F64530

ELECTRICAL WIRE

WIRE ASSEMBLY - adapter, cab serial no. 12033908 and after

1шт.

Выбрано товаров: 5
