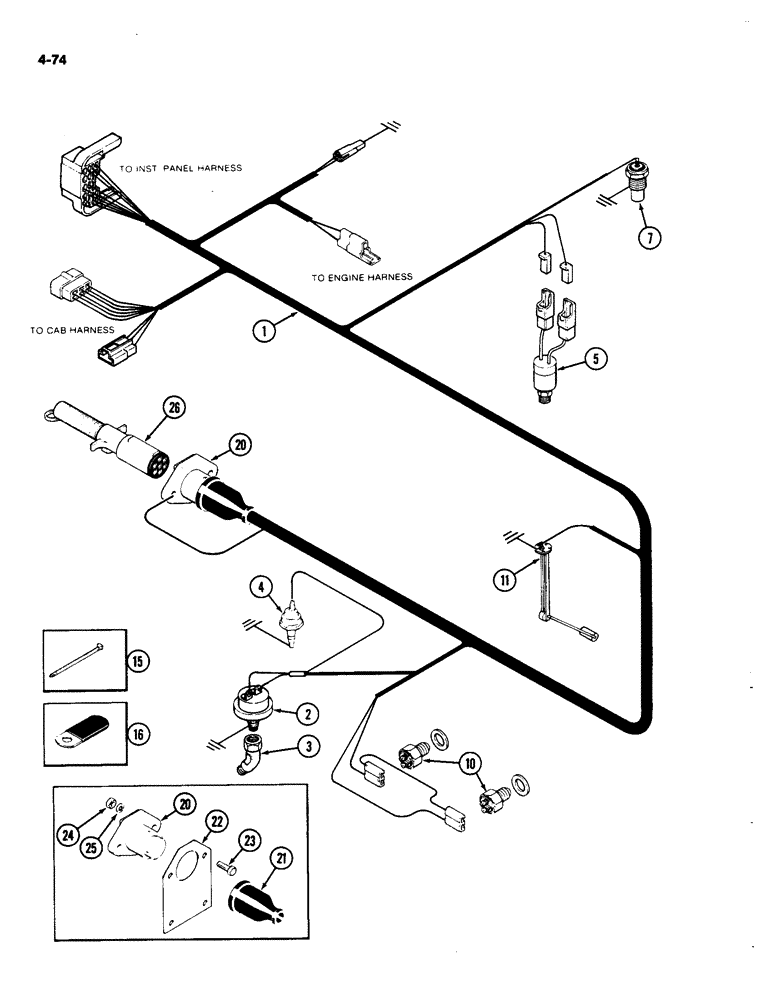

Запчасти Case IH 4490 (4-074) - TRANSMISSION WIRING, AUXILIARY ELECTRIC OUTLET (04) - ELECTRICAL SYSTEMS

1

A161496

HARNESS

ASSEMBLY - wire, transmission components

1шт.

2

A161461

SWITCH

- transmission differential pressure (at filter) (See Figure 8-252)

1шт.

3

222-401

CONNECTOR, ELEC

ELBOW - 1/8" PT 45 degree

1шт.

4

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure (See Figure 8-252)

1шт.

5

A162422

SWITCH

- transmission pressure (See Figure 8-246)(Replaces A145119)

1шт.

7

A135001

SWITCH

- transmission temperature

1шт.

10

A139078

SWITCH

- neutral start (See Figure 6-160)

2шт.

11

A160044

SENDER UNIT

SENDER - fuel tank level (See Figure 3-066)

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, harness

1шт.

18

A22880

CLIP

CLAMP - wire

2шт.

20

A38739

CONNECTOR, ELEC

CONNECTOR - female, 7 point, auxiliary electric outlet

1шт.

21

A38740

GUARD

COVER - connector wiring

1шт.

22

A149955

BRACKET

- mounting

1шт.

23

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1" NC hex (Grade 5)

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

26

A139672

PLUG

- male connector, 7 point

1шт.
