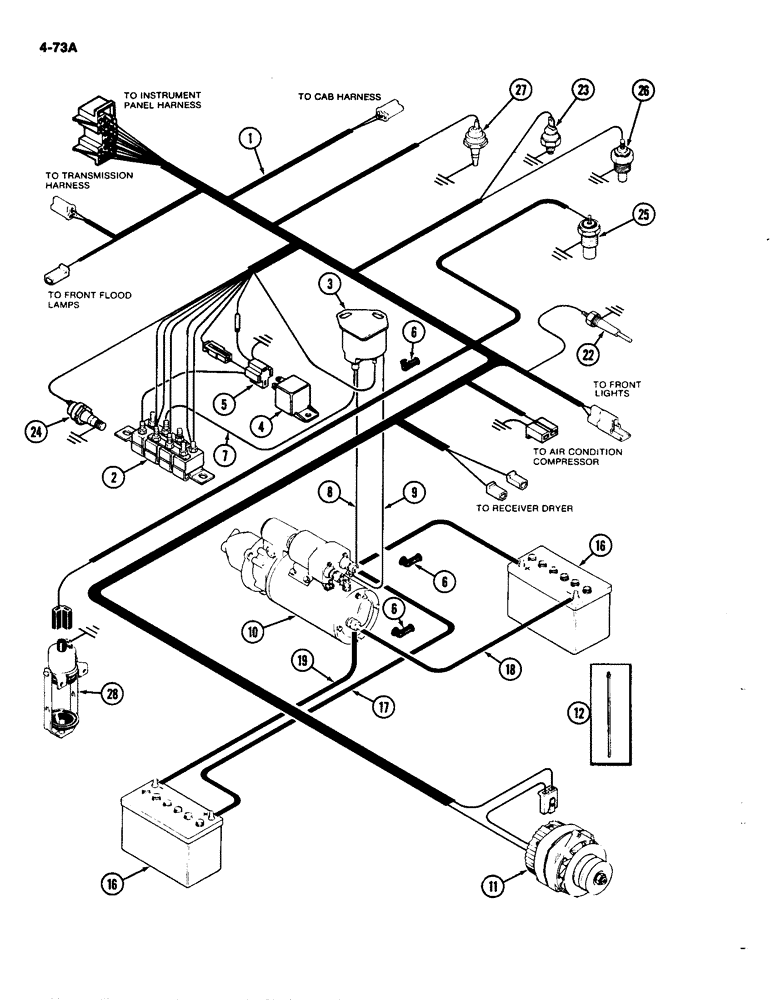

Запчасти Case IH 4490 (4-073A) - ENGINE HARNESS, AND WITH CAB RELAY (04) - ELECTRICAL SYSTEMS

1

A162332

HARNESS

ASSEMBLY - wire, engine components (Replaces A161056)

1шт.

2

REF

INSTRUCTION

BREAKER - circuit (See Figure 4-070)

1шт.

3

REF

INSTRUCTION

SOLENOID - intermediate (See Figure 4-070)

1шт.

4

A165315

CAB

RELAY - cab (See Figure 4-070)

1шт.

5

A165316

HARNESS

ASSEMBLY - cab relay

1шт.

6

A21753

CAP

COVER - rubber, terminal

6шт.

7

A160995

CABLE

- solenoid to circuit breaker, red 6" (152.4 mm)

1шт.

8

A160994

CABLE

- starter to intermediate solenoid, red 10-1/2" (266.7 mm)

1шт.

9

A75825

CABLE

- starter to intermediate solenoid, yellow 11-1/2" (292.1 mm)

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-100 and 4-106)

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, (See Figure 4-112 and 4-106)

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness

1шт.

16

REF

INSTRUCTION

BATTERY - (See Figure 4-096)

2шт.

17

REF

INSTRUCTION

CABLE - RH negative to starter ground (See Figure 4-096)

1шт.

18

REF

INSTRUCTION

CABLE - LH negative to starter ground (See Figure 4-096)

1шт.

19

REF

INSTRUCTION

CABLE - RH positive to starter solenoid (See Figure 4-096)

1шт.

20

REF

INSTRUCTION

CABLE - LH positive to starter solenoid (See Figure 4-096)

1шт.

22

A145513

SENSOR

PROBE - sensing, coolant level (See Figure 2-004)

1шт.

23

A154782

SWITCH

- sensing, air restriction (See Figure 2-014)

1шт.

24

A162297

SWITCH

- fuel pressure (See Figure 3058)(Replaces A66737)

1шт.

25

A141558

SWITCH

- engine temperature

1шт.

26

D65446

SENDER UNIT

SWITCH - engine water temperture (See Figure 2-006)

1шт.

27

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

28

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start (See Figure 2-018)

1шт.
