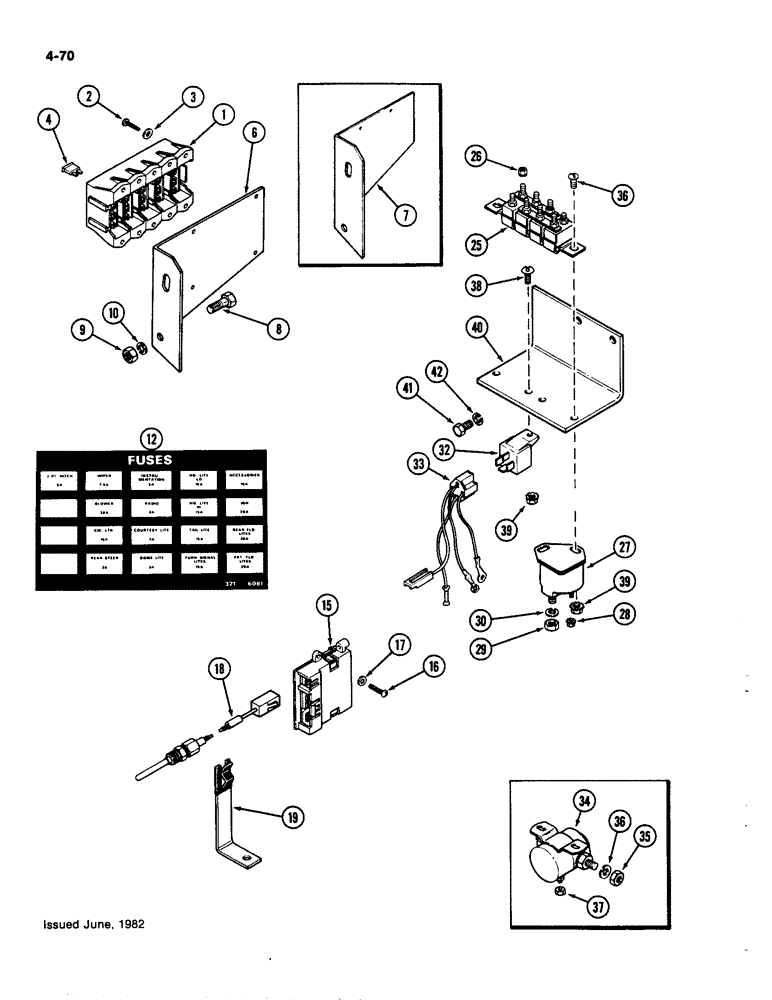

Запчасти Case IH 4490 (4-070) - FUSES AND FUSE HOLDER, INSTRUMENT PANEL HARNESS (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (part of A162115 harness)(See Figure 4-068)

1шт.

2

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10-24 x 3/4" pan head

4шт.

3

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.27 mm)

4шт.

4

A149796

FUSE

- 3 ampere

4шт.

4

A149798

FUSE

- 5 ampere

1шт.

4

A149799

FUSE

- 7.5 ampere

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere

6шт.

4

A149802

FUSE

- 20 ampere

4шт.

6

A164242

PLATE

- mounting, fuse holder (P.I.N. 8860450 and after)

1шт.

7

A149838

PLATE

- mounting, fuse holder (Prior to P.I.N. 8860450)

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

321-6081

DECAL

- fuse location (Replaces 321-4742 and 321-5976)

1шт.

15

A154256

CONNECTOR, ELEC

MODULE - pyrometer

1шт.

16

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan head

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

A154255

TRANSMITTER

THERMOCOUPLE - exhaust, Serial Range: pipe-module

1шт.

19

A147023

BRACKET

- thermocouple to exhaust pipe clamp

1шт.

25

A160983

BREAKER

- circuit, 20, 40 and 50 ampere

1шт.

26

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

4шт.

27

A39079

SOLENOID

- intermediate

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

32

A165315

CAB

RELAY - cab

1шт.

33

A165316

HARNESS

- relay

1шт.

34

NSS

NOT SOLD SEPARAT

SOLENOID ASSEMBLY - cab (Order A165315 and A165316), Includes: Ref. 35 - 37

1шт.

35

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5

2шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

37

129-36

NUT,#8-36

- #8-32 hex

1шт.

38

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" NC pan head

4шт.

39

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" NC Keps

4шт.

40

A151074

BRACKET

- solenoid and breaker mounting

1шт.

41

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
