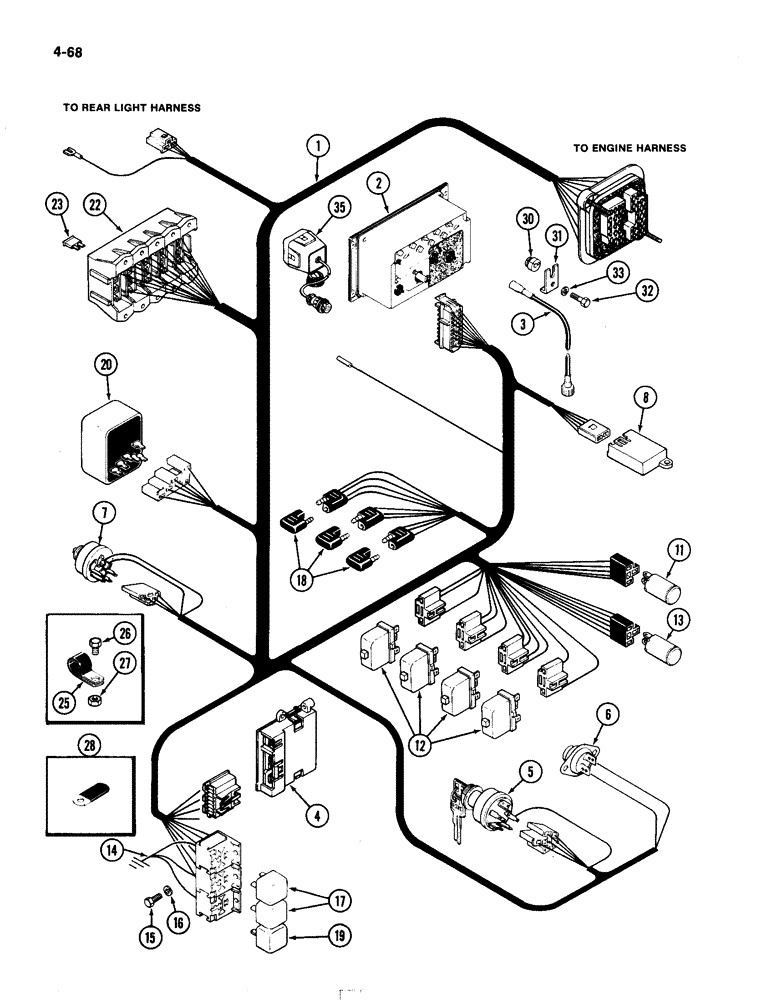

Запчасти Case IH 4490 (4-068) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

A162115

HARNESS

ASSEMBLY - wire, instrument panel (Replaces A160665 and 162333)

1шт.

2

REF

INSTRUCTION

CUSTER ASSEMBLY - instrument (See Figure 4-084)

1шт.

3

A135494

CABLE

ASSEMBLY - tachometer drive, 60" (1524.0 mm) long

1шт.

4

REF

INSTRUCTION

MODULE - pyrometer (See Figure 4-70)

1шт.

5

REF

INSTRUCTION

SWITCH - starting (See Figure 4-82)

1шт.

6

REF

INSTRUCTION

SWITCH - push-button, cold start (See Figure 2-018)

1шт.

7

REF

INSTRUCTION

SWITCH - light (See Figure 4-82)

1шт.

8

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (See Figure 4-082)(Replaces A147382)

1шт.

11

A160116

RELAY

- time delay (hydraulic oil filter pressure)

1шт.

12

A143506

BUZZER

- warning (See Figure 4-082)

4шт.

13

A145677

RELAY

- time delay

1шт.

14

A163005

ELECTRICAL WIRE

WIRE - ground, flood lamp relays and hitch (Replaces A149382)

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

16

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.1 x 15.8 x 1.9 mm)

1шт.

17

A147176

RELAY

S - flood lamp (part of flood lamp attatchment)

2шт.

18

A147976

DIODE

- lamp check

3шт.

19

A147176

RELAY

- electric hitch

1шт.

20

REF

INSTRUCTION

SWITCH - flasher and turn signal (See Figure 4-082)

1шт.

22

NSS

NOT SOLD SEPARAT

HOLDER - blade type fuse (See Figure 4-070)

1шт.

23

REF

INSTRUCTION

FUSE - blade type (See Figure 4-070)

1шт.

25

49789

CLAMP

- wire

2шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

A22880

CLIP

CLAMP - wire

2шт.

30

A152511

GROMMET

- tachometer cable

1шт.

31

A152518

BRACKET

- clamp, Serial Range: grommet-firewall

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

REF

INSTRUCTION

INDICATOR - turn, rear wheel (See Figure 4-082)

1шт.
