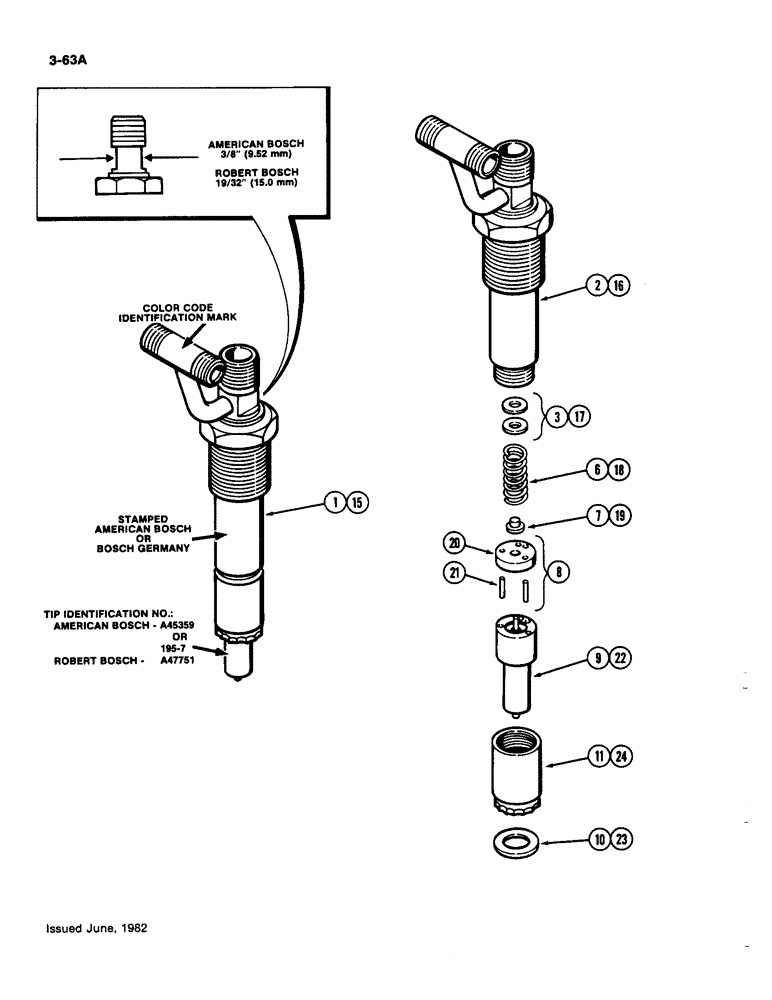

Запчасти Case IH 4490 (3-063A) - FUEL INJECTION NOZZLE, 504BDT DIESEL ENGINE, WHITE COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

1

A156329

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 24

6шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Grade A156329), Includes: Ref. 1 - 11

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156329)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062" (1.57 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002" (0.05 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007" (0.18 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025" (0.64 mm)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A45359

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, Robert Bosch (Order A156329), Includes: Ref. 16 - 24

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangable. See illustration for identification.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156329)

1шт.

A48186

KIT

- shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 17

1шт.

17

A48204

SHIM,1.00mm Thk

Nozzle, 5 in kit (.039") 1.00mm Thk

1шт.

17

A48205

SHIM,1.10mm Thk

Nozzle, 5 in kit (.043") 1.10mm Thk

1шт.

17

A48206

SHIM,1.20mm Thk

Nozzle, 5 in kit (.047") 1.20mm Thk

1шт.

17

A48207

SHIM,1.30mm Thk

Nozzle, 5 in kit (.051") 1.30mm Thk

1шт.

17

NLS

NO LONGER SERVICED

- nozzle, 5 in kit, 0.055" (1.40 mm)

1шт.

17

A48209

SHIM,1.50mm Thk

Nozzle, 5 in kit (.059") 1.50mm Thk

1шт.

17

A48210

SHIM,1.60mm Thk

Nozzle, 5 in kit (.063") 1.60mm Thk

1шт.

17

A48211

SHIM,1.70mm Thk

Nozzle, 5 in kit (.067") 1.70mm Thk

1шт.

17

A48212

SHIM,1.80mm Thk

Nozzle, 5 in kit (.071") 1.80mm Thk

1шт.

17

A48213

SHIM,1.90mm Thk

Nozzle, 5 in kit (.075") 1.90mm Thk

1шт.

18

A48198

SPRING

- nozzle pressure

1шт.

19

A48203

SEAT

- nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47751

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.
