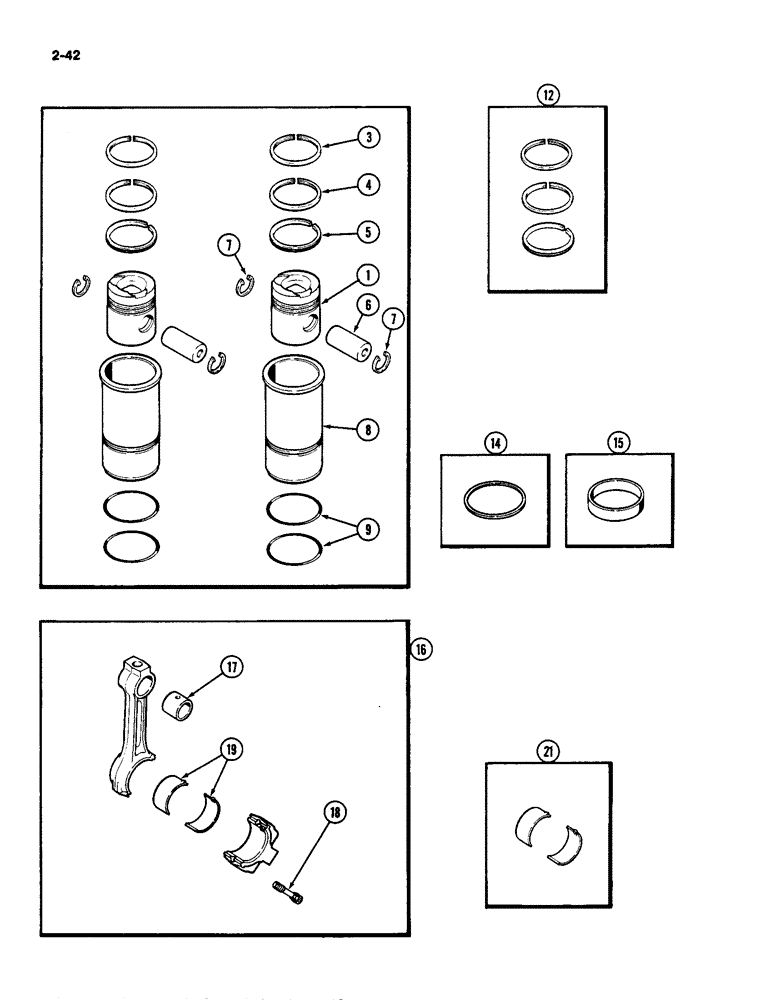

Запчасти Case IH 4490 (2-042) - PISTON ASSEMBLY, WITH TWO GROOVE SLEEVE, 504BDT DIESEL (02) - ENGINE

1

A146697

PISTON

PISTON - aluminum, 4-5/8" (117.47 mm) bore

6шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref 12)

6шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref 12)

6шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref 12)

6шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

6шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

12шт.

8

REF

INSTRUCTION

SLEEVE - cylinder (2 grooves)(Order Ref 8 and 9, Figure 2-044)

6шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - sleeve seal, 4-1/2 ID x 3/32" width (114.3 ID x 2.38 mm width)

12шт.

12

A44054

RING

RING KIT - replacement (Set of 1)

6шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 mm)(Repairs Only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 mm)(Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

16

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core-Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap

2шт.

19

NSS

NOT SOLD SEPARAT

INSERT - bearing, connecting rod (Order Ref 21)

12шт.

21

A41758

BEARING LINER

INSERT - connecting red bearing, standard (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.05 mm)(Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010" undersize (0.05 mm)(Set of 2)

6шт.

21

A41901

BEARING LINER

INSERT - connecting rod bearing, 0.020" undersize (0.50 mm) (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT - connecting rod bearing, 0.030" undersize (0.75 mm)(Set of 2)

6шт.
