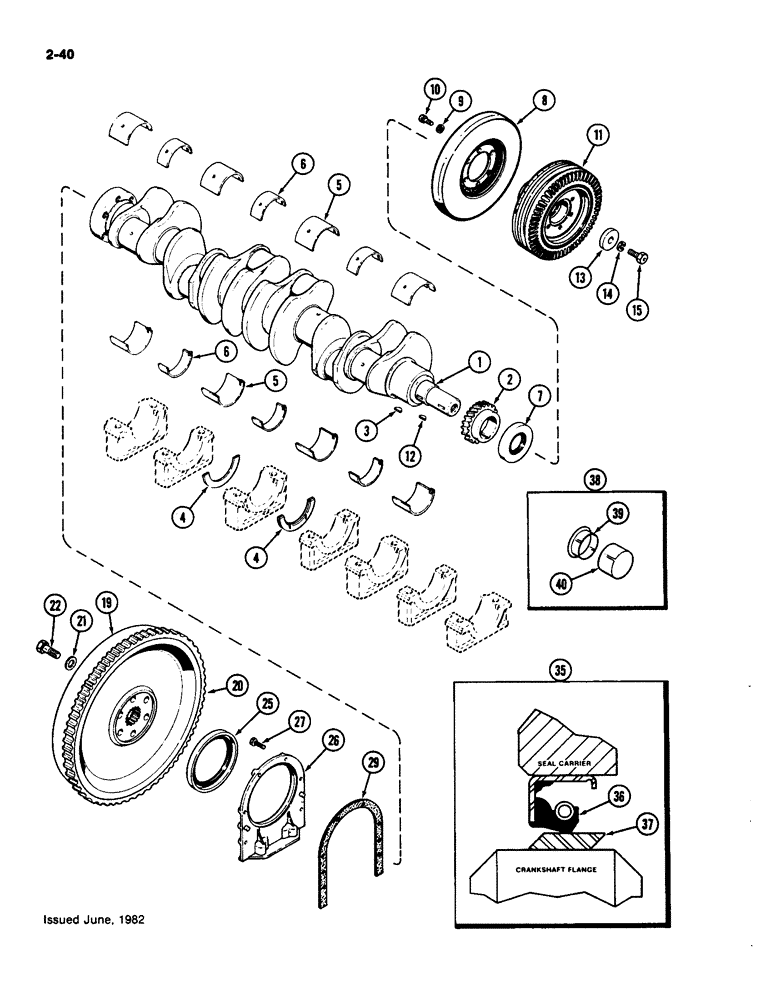

Запчасти Case IH 4490 (2-040) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- front

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, standard 0.156" (3.96 mm)

2шт.

4

A42447

WASHER

- thrust, oversize 0.162" (4.11 mm)

2шт.

5

A43090

BEARING LINER

LINER - main bearing, wide, standard (Set of 2)

2шт.

5

A43124

LINING

LINER - main bearing, wide, 0.002" undersize (0.05 mm)(Set of 2)

2шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide, 0.010" undersize (0.25 mm)(Set of 2)

2шт.

5

A43126

LINING

LINER - main bearing, wide, 0.020" undersize (0.51 mm)(Set of 2)

2шт.

5

A43127

LINING

LINER - main bearing, wide, 0.030" undersize (0.76 mm)(Set of 2)

2шт.

6

A43089

BEARING LINER

LINER - main bearing, narrow, standard (Set of 2)

3шт.

6

A43120

LINING

LINER - main bearing, narrow, 0.002" undersize (0.05 mm)(Set of 2

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, 0.010" (0.25 mm)(Set of 2)

3шт.

6

A43122

LINING

LINER - main bearing, narrow, 0.020" (0.51 mm)(Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, 0.030" undersize (0.76 mm) (Set of 2)

3шт.

7

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front - (Replaces A62049)

1шт.

8

A151598

DAMPER

- pulley (Replaces A66134)(Also Order A166050)

1шт.

9

A50820

WASHER

- damper

6шт.

10

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

11

A166050

PULLEY

- crankshaft, belt drive (Replaces A154908)

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

13

A156428

WASHER

- pulley bolt (Replaces A27903)

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW - pulley (5/8 x 1-1/2" NF hex head)(Replaces A28028)

1шт.

19

A153946

FLYWHEEL

ASSEMBLY - splined, Includes: Ref. 20

1шт.

20

A27920

GEAR

- ring (137 teeth)

1шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

22

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8 x 1-3/4" NF hex (Grade 5)

6шт.

25

A62050

OIL SEAL

- oil,rear (See Ref 35)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - 3/8 x 1-1/4" NC hex sems (Replaces 13-620 and 92-6)

6шт.

29

A32830

GASKET

- retainer

1шт.

35

A43194

KIT

WEAR KIT - rear oil kit, seal, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

38

A154684

SLEEVE

WEAR SLEEVE KIT - crankshaft pulley, seal, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
