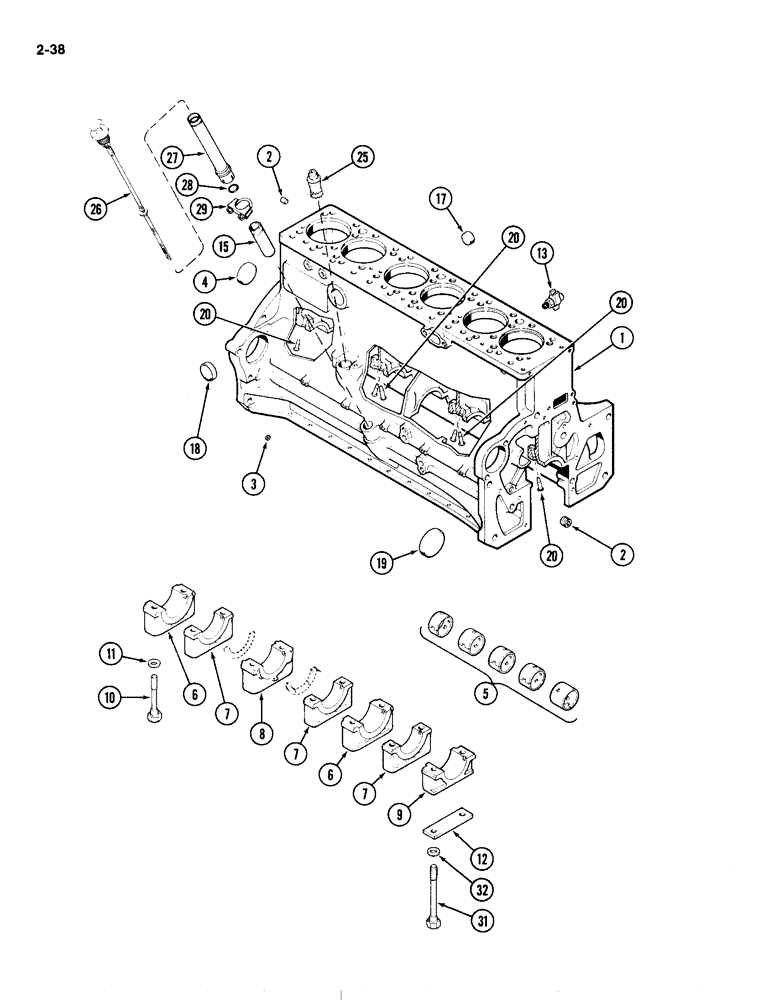

Запчасти Case IH 4490 (2-038) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A46038

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearing, crankshaft and bearing, camshaft, timing gears and lifters)(Casting No. A66527), Includes: Ref. 2 - 20

1шт.

AR77827

REMAN-BASIC ENGINE

Remanufactured

1шт.

AC77827

CORE-BASIC ENGINE

Return Number

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped, Includes: Ref. 2 - 20

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT socket head

4шт.

3

221-1849

PLUG

PLUG - 1/8" PT socket head

6шт.

4

A24361

PLUG

PLUG - 2-3/8" cup type (60.32 mm)

1шт.

5

REF

INSTRUCTION

BUSHINGS - camshaft (See Figure 2-36)

1шт.

6

A154398

BEARING CAP

CAP - wide crankshaft bearing (Replaces A58562)

2шт.

7

A154397

BEARING CAP

CAP - narrow crankshaft bearing (Replaces A58563)

3шт.

8

A154395

CAP

CAP - thrust, crankshaft bearing (Replaces A58564)

1шт.

9

A154396

BEARING CAP

CAP - front crankshaft bearing (Replaces A63902)

1шт.

10

A66948

STEP BOLT

BOLT - bearing cap 5/8 x 5" NC hex

12шт.

11

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8" (16.67 x 25.4 x 3.17 mm)

12шт.

12

A58859

SHIM,.005" Thk

SHIM, , Oil pump .005" Thk

1шт.

13

A23656

COCK, DRAIN

VALVE - drain

1шт.

15

A34540

TUBE

TUBE - oil filter and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type (34.92 mm)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - 2" cup type (50.8 mm)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - 3-1/4" cup type (87.55 mm)

1шт.

20

A63903

NOZZLE CAP

NOZZLE - piston cooling

6шт.

25

A67178

DRIVE

DRIVE ASSEMBLY - tachometer

1шт.

26

A154243

DIPSTICK

DIPSTICK - oil level

1шт.

27

A153835

TUBE

TUBE

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - 1-1/8 ID x 1/8" width (28.57 ID x 3.17 mm width)

1шт.

29

L47766

CLAMP

CLAMP - tube

1шт.

31

A66949

STEP BOLT

BOLT - oil pump and bearing cap, 5/8 x 7-1/4" NC

2шт.

32

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8" (16.67 x 25.4 x 3.17 mm)

2шт.
