Запчасти Case IH 4490 (2-030) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE

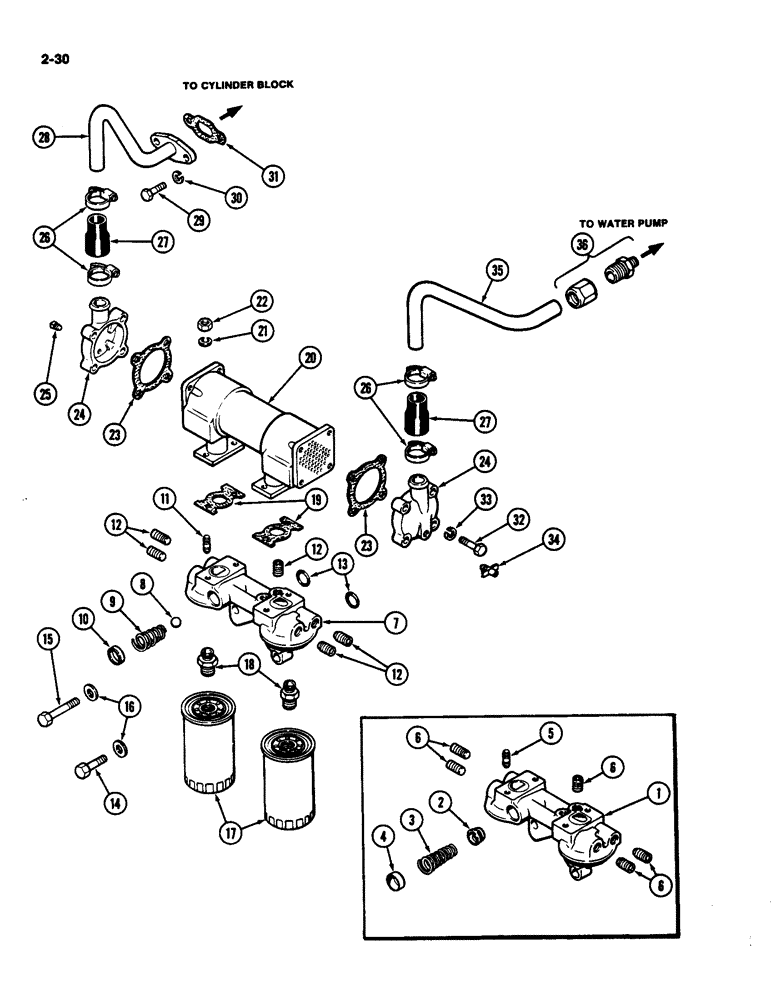

Схема запчастей Case IH 4490 - (2-030) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE
4
7
36
20
13
12
15
26
27
14
6
10
34
35
1
22
28
2
30
12
27
32
3
8
6
29
25
24
6
18
9
19
17
33
21
5
23
12
16
31
11
24
26
23

Артикул

Название

Примечание

Количество

1

A64107

BASE

ASSEMBLY - filter and heat exchanger (prior to Engine Serial Number 10307394)(Order A154541), Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief, 2-13/16 (71.44 mm) free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.75 mm)

1шт.

5

G102128

BOLT

- 3/8" NC x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket head

5шт.

7

A154541

BASE

ASSEMBLY - filter and heat exchanger (Engine Serial Number 10307394 and after), Includes: Ref. 8 - 12

1шт.

8

211-17

BALL,3/4" Dia

- relief valve, 3/4" (19.05 mm) diameter

1шт.

9

A146897

SPRING

- relief

1шт.

10

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" (19.05 mm) cup type

1шт.

11

A62234

STUD

- 3/8" NC x 1-5/16"

4шт.

12

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex head

5шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 59/64" ID x 7/64" width (23.42 ID x 2.78 mm width)

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

15

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

195-33

WASHER,1/2"

- 17/32 x 1-1/16" x 7/64" (13.5 x 2.8 mm)

2шт.

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Factory installed, 6-7/8" long)(174.75 mm) (Order A44081)

2шт.

17

A44081

ENGINE OIL FILTER

ELEMENT - oil filter (For Service, 8-5/8" long)(218.94 mm)

1шт.

18

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

19

A65359

GASKET

- heat, Serial Range: exchange-base

2шт.

20

A75295

OIL COOLER

HEAT EXCHANGER - oil

1шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

A63920

GASKET

- end cover

2шт.

24

A64349

HOOD

COVER - end, heat exchanger

2шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

4шт.

27

A64353

HOSE

- cover to water tubes

2шт.

28

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

29

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

A58670

GASKET

- tube

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

33

92-6

LOCK WASHER,3/8"

8шт.

34

217-107

VALVE

- drain, heat exchanger

1шт.

35

A75298

TUBE

- heat exchanger to water pump

1шт.

36

222-2020

FITTING

CONNECTOR - 1" tube x 3/4" PT

1шт.

Выбрано товаров: 37
