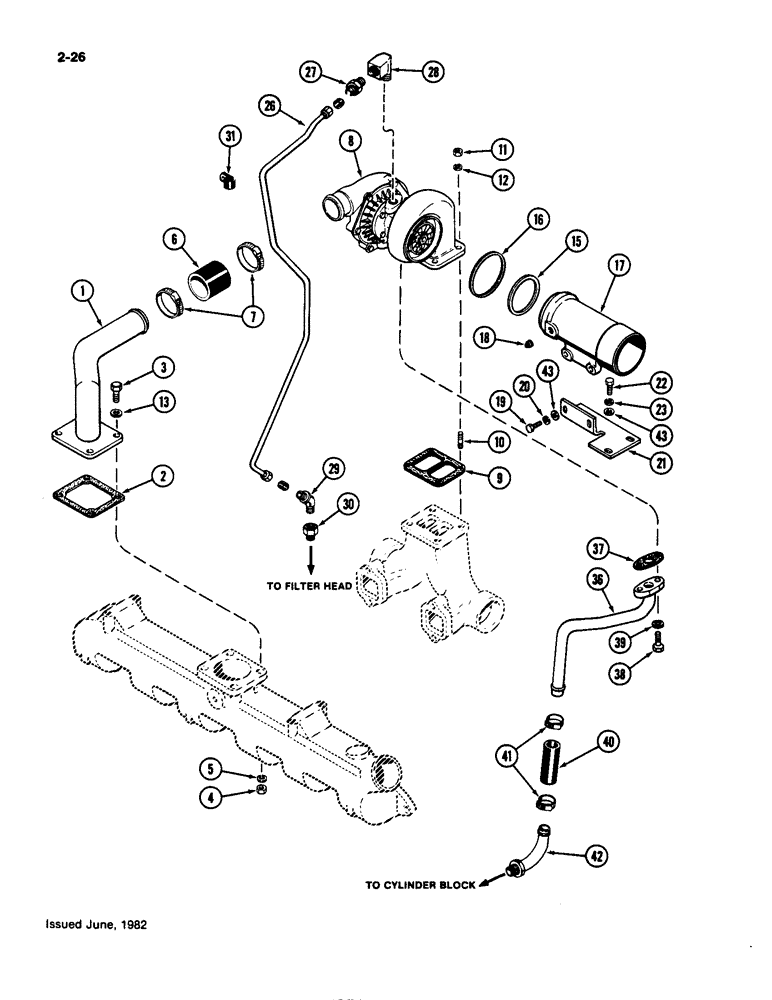

Запчасти Case IH 4490 (2-026) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A150450

ELBOW

- air intake

1шт.

2

A58910

GASKET

- elbow flange

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46.04 x 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

8

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-028)

1шт.

9

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

10

G102128

BOLT

- turbocharger, 3/8" NC x 1-1/2"

4шт.

11

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez Pruf

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 7/64" (11.1 x 25.4 x 2.8 mm)

4шт.

15

A138817

RING,2.64mm Thk

- seal, turbocharger outlet

1шт.

16

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- outlet elbow

1шт.

17

A152392

FITTING

ELBOW - straight, exhaust outlet

1шт.

18

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" PT square head

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A152391

BRACKET

- outlet elbow

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

23

92-6

LOCK WASHER,3/8"

5шт.

26

A166064

TUBE

- oil supply, turbocharger (Replaces A153800)

1шт.

re it no. 26, if dealer is looking for sleeve located between no. 26 and 27 or between 26 and 28 the part no. is 222-154 sleeve, per hard copy catalog note. pat hood.

1шт.

27

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - turbocharger, 3/8" tube x 1/4" PT

1шт.

28

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 1/4" PT 90deg.

1шт.

29

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- filter, 3/8" tube x 1/4" PT 45deg.

1шт.

30

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8 PT x 1/4" PT

1шт.

31

49845

CLAMP

- oil supply tube

1шт.

36

A62518

TUBE

- oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

- tube flange

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 2-3/4" (46.04 x 69.85 mm)

2шт.

42

A58897

FITTING

- drain hose

1шт.

43

95-6

WASHER,3/8"

- 7/16 x 1 x 5/56" (11.1 x 25.4 x 1.9 mm)

5шт.
