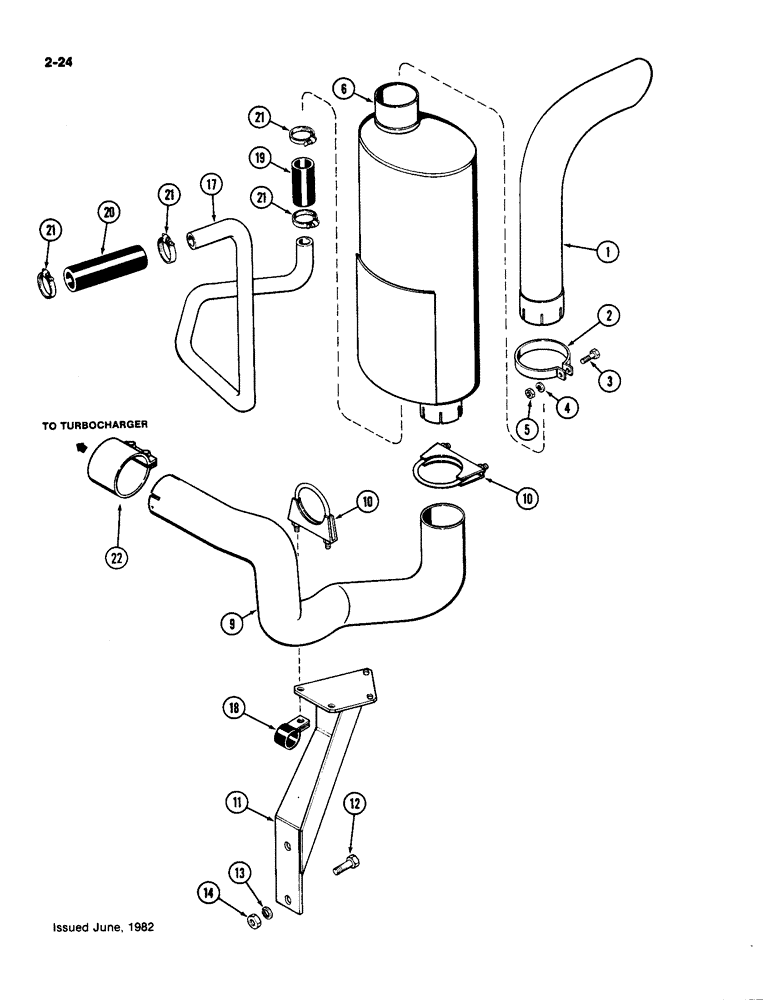

Запчасти Case IH 4490 (2-024) - MUFFLER AND ASPIRATOR, 504BDT DIESEL ENGINE (02) - ENGINE

1

A147045

PIPE

- exhaust, muffler

1шт.

2

A162895

CLAMP

- pipe to muffler (Replaces A147097)

1шт.

3

113-2266

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex (Grade 5)

1шт.

4

192-82

LOCK WASHER,3/8"

3/8"

1шт.

5

129-191

NUT,7/16"-14, G5

- 3/8" NC hex

1шт.

6

A162463

MUFFLER

- exhaust (black)(Replaces A161368)

1шт.

6

A161368

MUFFLER

- exhaust (Silver)(Order A162463)

1шт.

9

A149903

PIPE

- exhaust, Serial Range: turbocharge-muffler

1шт.

10

A162896

CLAMP

ASSEMBLY - pipe (Includes hardware)(Replaces A56092)

3шт.

11

A149547

SUPPORT

- exhaust pipe

1шт.

12

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

17

A149566

TUBE

- aspirator

1шт.

18

49773

CLAMP

-, Serial Range: tube-support

1шт.

19

R34237

HOSE

- aspirator tube to muffler, 1-1/2" ID x 4" (43.1 x 101.6 mm)(Order R43299)

1шт.

20

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Aspirator tube to pre-cleaner 1.50" ID

1шт.

21

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, 1-9/16" to 2-1/2" (39.69 x 63.5 mm)

4шт.

22

A149249

ASSEMBLY

CLAMP - muffler pipe

1шт.
