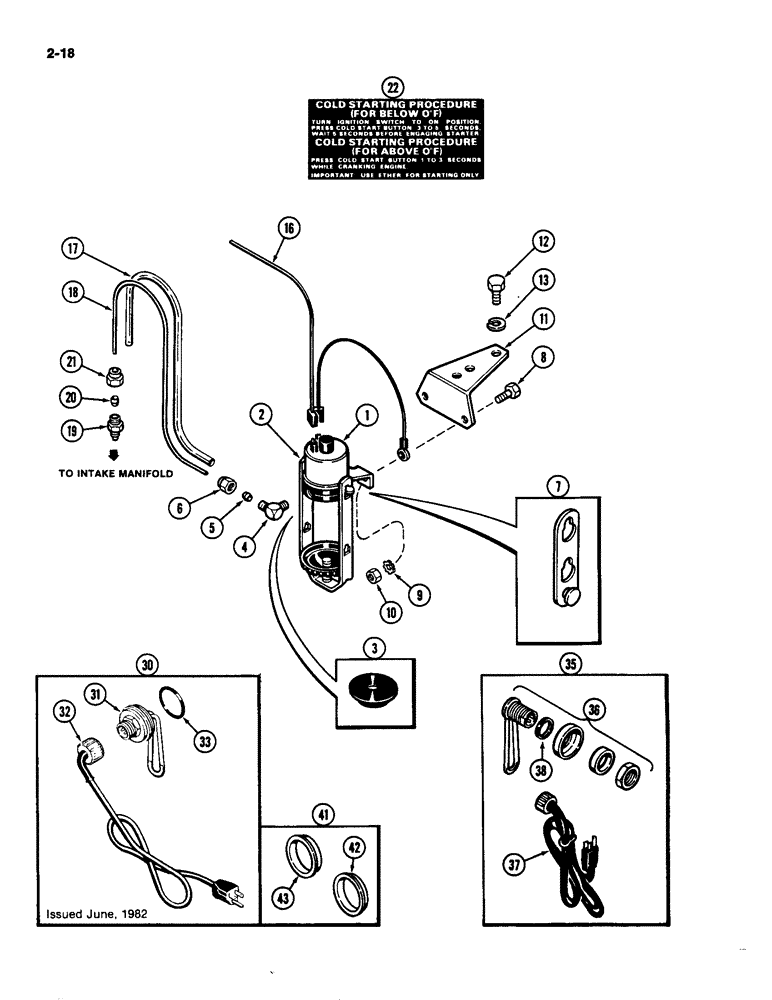

Запчасти Case IH 4490 (2-018) - ETHER COLD START, 504BDT DIESEL ENGINE (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 - 6

1шт.

2

185552A1

SOLENOID

HANGER - either can (replaces D55936)

1шт.

3

R30786

GASKET

- can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, 1/8" tube, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

(3.17 mm) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube (3.17 mm) 5/16"-24, 45º Fl, Comp

1шт.

7

R30812

LINK

- hanger extension

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

A152208

SUPPORT

- solenoid

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

REF

INSTRUCTION

HARNESS - engine (See Figure 4-72)

1шт.

17

A67322

TUBE

- outer, 1/4" OD x 7" (6.35 x 177.3 mm)

1шт.

18

A138483

TUBE

- plastic, solenoid to injector, 1/8" OD x 9" (3.17 mm x 228.6 mm)(also Order two of Ref. 20)

1шт.

19

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - nozzle, Includes: Ref. 20 and 21

1шт.

20

222-650

SLEEVE,1/8" Tube, Comp

(3.17 mm) 1/8" Tube, Comp

1шт.

21

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube (3.17 mm) 5/16"-24, 45º Fl, Comp

1шт.

22

321-2946

DECAL

- instruction

1шт.

30

A154740

UNIT HEATER

HEATER KIT - engine coolant (Order A155436), cylinder block, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

32

A44813

CABLE EXTENSION

CORD - 12" (304.8 mm)

1шт.

33

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element

1шт.

35

A155436

RESISTOR

HEATER KIT - engine coolant (Replaces A154740), cylinder block, Includes: Ref. 36 - 38

1шт.

Item #35 A155436 subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" dia. A182059 has a 1" thread.

1шт.

36

A155436

RESISTOR

ELEMENT - heater

1шт.

37

A44813

CABLE EXTENSION

CORD - 12" (304.8 mm)

1шт.

38

A45114

GASKET

- element

1шт.

41

A44006

SLEEVE

KIT - heater installation, cylinder block, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16" (52.39 mm) diameter hole

1шт.

43

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8" (53.97 mm) diameter hole

1шт.
