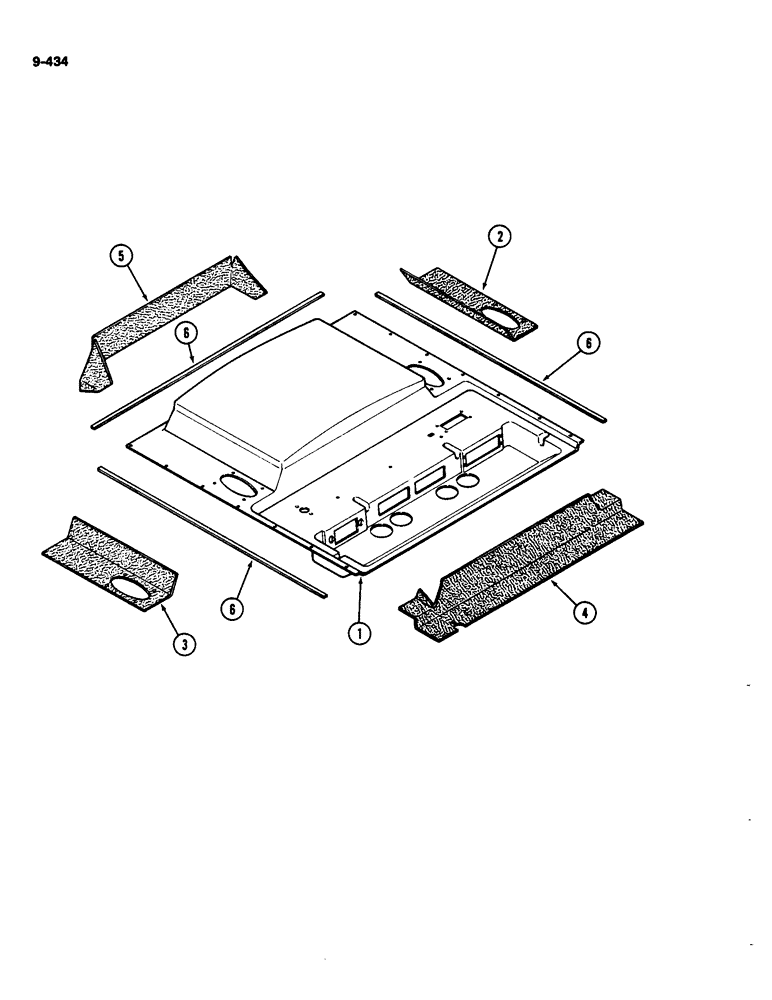

Запчасти Case IH 4490 (9-434) - CAB, HEADLINER NOISE PADS, USE WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12036610 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HEADLINER - cab (See Figure 9-406 and 9-408)

1шт.

2

F64245

PAD

- damping, LH

1шт.

3

F64246

PAD

- damping, RH

1шт.

4

F64477

PAD

- damping, front

1шт.

5

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1 117.6 mm) long (Order F64119)

3шт.

F64119

SEALING STRIP

- seal, 100' (328 m) roll, Serial Range: (cut-length)

1шт.
