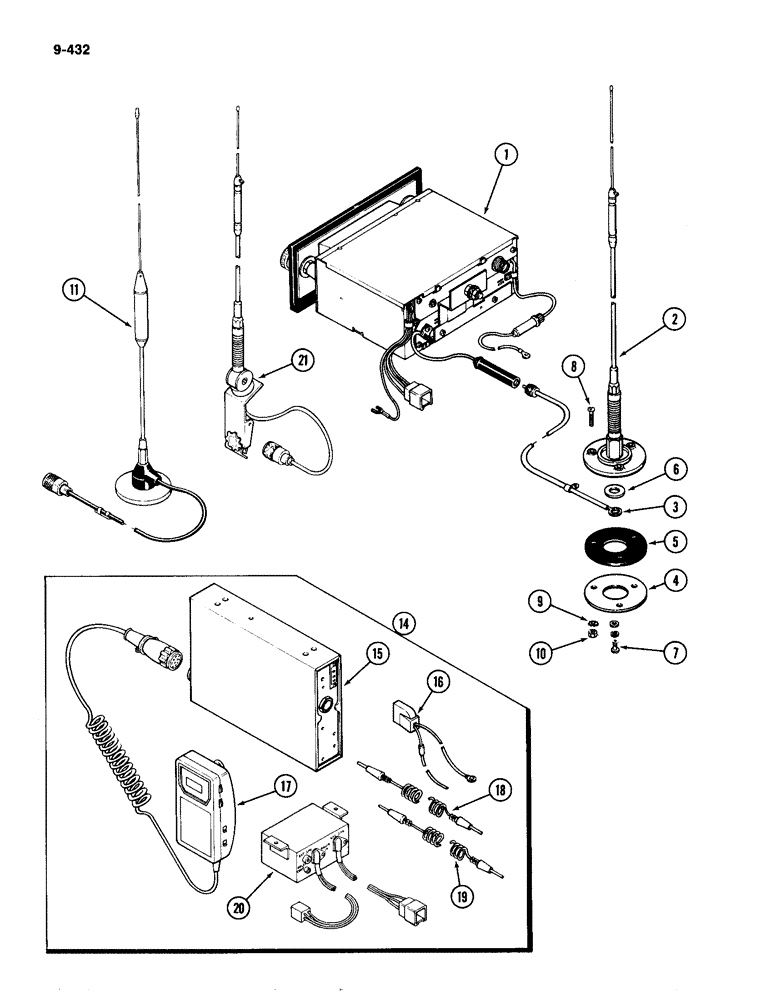

Запчасти Case IH 4490 (9-432) - CAB, RADIO KIT (09) - CHASSIS/ATTACHMENTS

1

A164223

RADIO

- AM, FM with cassette tape player

1шт.

1

A149929

RADIO - AM, FM with eight track tape player

1шт.

2

A149939

ANTENNA

MAST ASSEMBLY - CB antenna (Base Mounted)

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - antenna

1шт.

4

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - insulator

1шт.

6

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 mm)

1шт.

7

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" round slotted head

1шт.

8

182-538

SCREW,Slotted Pan Hd, #10-32 x 1"

- #10-32 x 1" round slotted head

3шт.

9

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex sems

4шт.

11

A147274

ANTENNA - CB magnetic mounting

1шт.

14

A162520

RADIO KIT - CB

1шт.

Used on tractors equipped with radio only.

1шт.

15

NSS

NOT SOLD SEPARAT

UNIT - CB radio transceiver

1шт.

16

NSS

NOT SOLD SEPARAT

HARNESS - transceiver

1шт.

17

NSS

NOT SOLD SEPARAT

MICROPHONE - CB transmitting

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - relay control, 3/32" diameter plug-in (2.34 mm)

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - output, 9/64" diameter plug-in (3/45 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

RELAY - control box

1шт.

21

A162517

ANTENNA

- CB radio (Roof Gutter Mounted)

1шт.
