Запчасти Case IH 4490 (9-412) - CAB, BLOWER ASSEMBLY, PRIOR TO CAB SERIAL NUMBER 12054687 (09) - CHASSIS/ATTACHMENTS

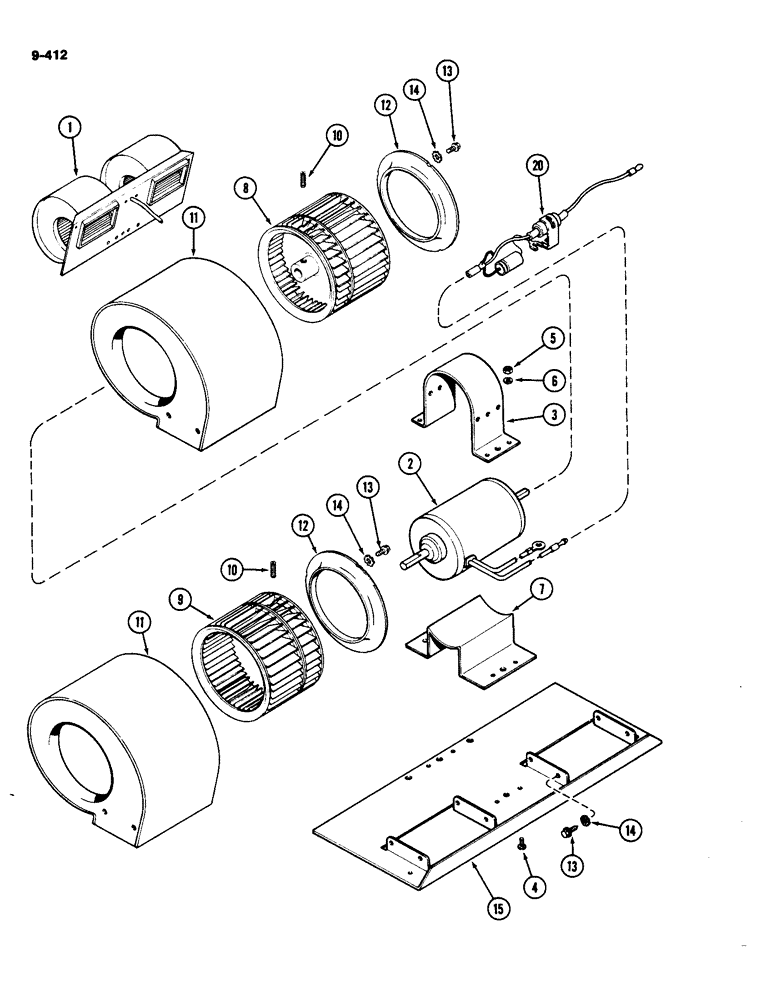

Схема запчастей Case IH 4490 - (9-412) - CAB, BLOWER ASSEMBLY, PRIOR TO CAB SERIAL NUMBER 12054687 (09) - CHASSIS/ATTACHMENTS
10
13
12
4
10
3
14
13
2
14
13
7
5
15
20
14
11
6
1
9
11
8
12

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab air, Includes: Ref. 2 - 15

1шт.

2

F89388

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

F63438

CLAMP

- motor

1шт.

4

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" pan head

4шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

F63439

MOUNTING PARTS

MOUNT - motor

1шт.

8

A42568

WHEEL

FAN - LH

1шт.

9

A42569

BLOWER,Fan, RH

FAN - RH

1шт.

10

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW - set, 1/4 x 5/8" NF headless cup point

2шт.

11

F89797

HOUSING

- blower

2шт.

12

F63655

RETAINER

EYE - inlet

2шт.

13

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex washer head

12шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

12шт.

15

F63616

BASE

- mounting

1шт.

20

F64184

CAPACITOR

- radio noise

1шт.

Выбрано товаров: 16
