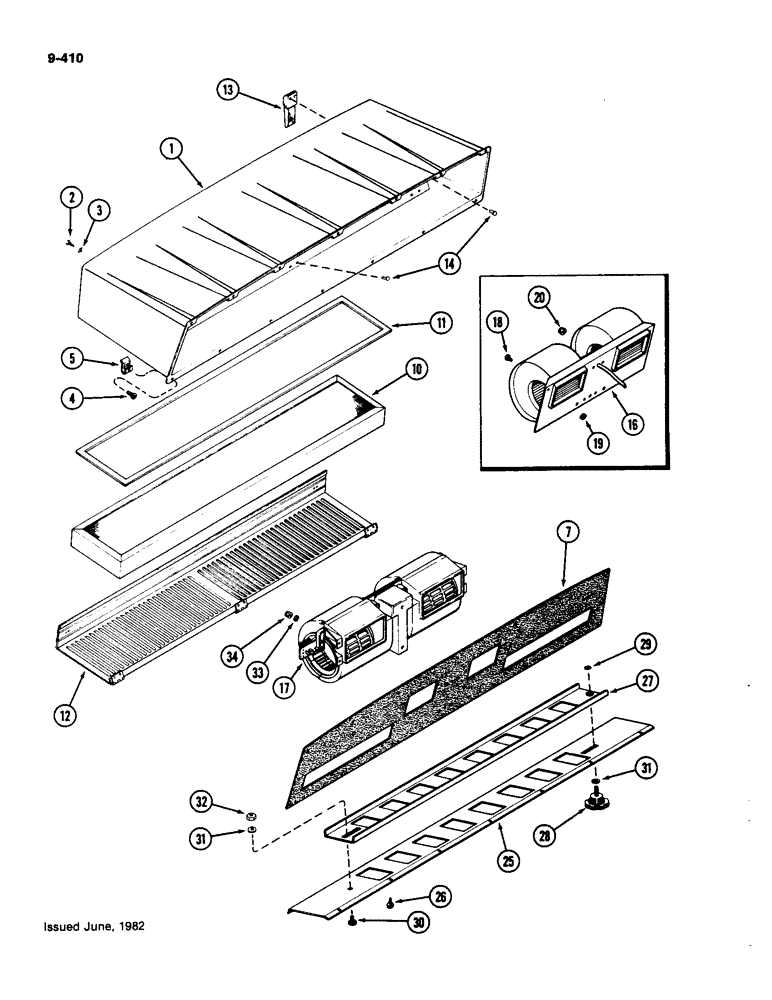

Запчасти Case IH 4490 (9-410) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F64772

COVER

HOUSING - filter and blower (Replaces F64058)

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping #10-16 x 3/4" round head

7шт.

3

F63765

WASHER

- finishing

7шт.

4

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

- #10-32 x 1" hex slotted

7шт.

5

131-859

JAM NUT

- #10-32 J type (Replaces F64374)

7шт.

7

F63592

SEAL

-, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F64515

SEAL

- filter to housing (Used prior to Cab SN 12015702)

1шт.

11

F63669

SEAL

- filter to housing (Used Cab SN 12015702 and after)

1шт.

12

F89926

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-518

RIVET,Pop, 1/8" x .440"

- 1/8" diameter pop type

10шт.

16

REF

INSTRUCTION

BLOWER ASSEMBLY - cab (See Figure 9-412 and 9-414)

1шт.

17

REF

INSTRUCTION

BLOWER ASSEMBLY - cab (See Figure 9-414A)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex head

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex

2шт.

20

353-700

BUSHING

- blower wire hole, 3/8" diameter

1шт.

25

F64705

PLATE

- air circulating (Replaces F64081)

1шт.

26

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex washer head

15шт.

27

F98175

DOOR

- air circulating

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

30

111-265

BOLT

- 5/16 x 3/4" NC round head square neck

1шт.

31

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.7 x 17.5 x 1.6 mm)

2шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex

1шт.

33

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5/57 x 12.7 x 1.30 mm)

4шт.

34

86625057

NUT,#10-24, GB

NUT - 1/4" NC lock

4шт.
