Артикул
Название
Примечание
Количество

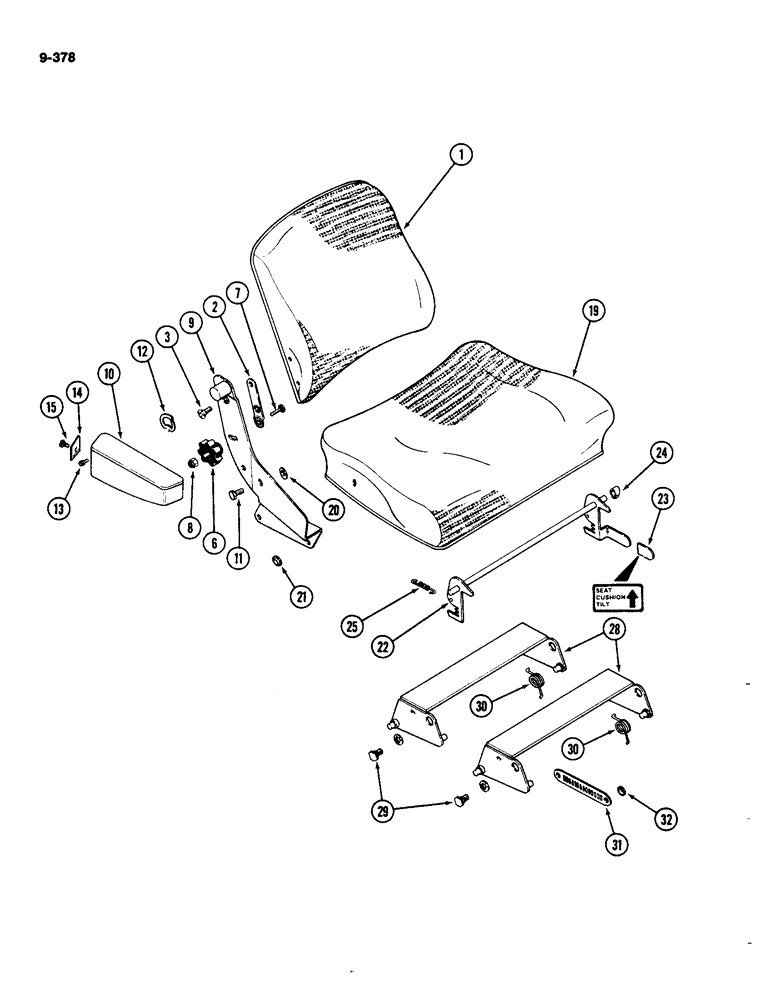

A163314
SEAT
AND SUSPENSION ASSEMBLY - operator, Includes: Ref. 1 - 32
1шт.
A48184
BACKREST
ASSEMBLY - seat, Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
CUSHION - backrest (Order A48184)
1шт.
1989979C1 Optional Seat. Cloth W/ Mechanical Suspension
1шт.
2
A47342
LINK
- backrest tilt
2шт.
3
171-228
SCREW,Sl Flat Hd, 3/8" - 16 x 1"
- 3/8 x 1" NC flat head
2шт.
6
A45487
BUTTON
KNOB - tilt backrest
2шт.
7
A45527
CARRIAGE BOLT
- 3/8 x 1-1/2" NC round head square neck
2шт.
8
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - 3/8" NC hex jam lock
2шт.
9
A45529
BRACKET
- armrest, right
1шт.
9
A45528
SUPPORT
BRACKET - armrest, left
1шт.
10
A45489
ARMREST
- seat, right
1шт.
10
A45488
ARMREST
- seat, left
1шт.
11
113-473
BOLT - 1/2 x 1-1/2" NC hex, black
2шт.
12
A47352
WASHER
- wave
4шт.
13
61-3256
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW - armrest, 1/4 x 1/2" NC socket head
2шт.
14
A45584
COVER
PLATE - armrest, right
1шт.
14
A45583
PLATE
COVER PLATE - armrest, left
1шт.
15
187-330
SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"
SCREW - #10 x 5/8" pan head, self tapping
2шт.
19
A48183
SEAT
CUSHION - seat
1шт.
20
A45110
WASHER
- seat retainer, fiber
2шт.
21
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, , Seat fastener Push, 1/2"
4шт.
22
A47346
LEVER
- seat assembly tilt
1шт.
23
A47347
CAP
- tilt lever
1шт.
24
A45482
BUSHING
SPACER - tilt lever shaft
2шт.
25
NLS
NO LONGER SERVICED
- tilt lever shaft tension
2шт.
28
A47379
LINK
- seat mounting cross
2шт.
29
A45473
STEP BOLT
BOLT - 1/2 x 3/4" NC hex shoulder
4шт.
30
A47384
SPRING
- torsion
2шт.
31
A47383
LINK
- connecting
2шт.
32
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, , Connecting link to cross link Push, 1/2"
4шт.
Выбрано товаров: 31
