Запчасти Case IH 4490 (9-374) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

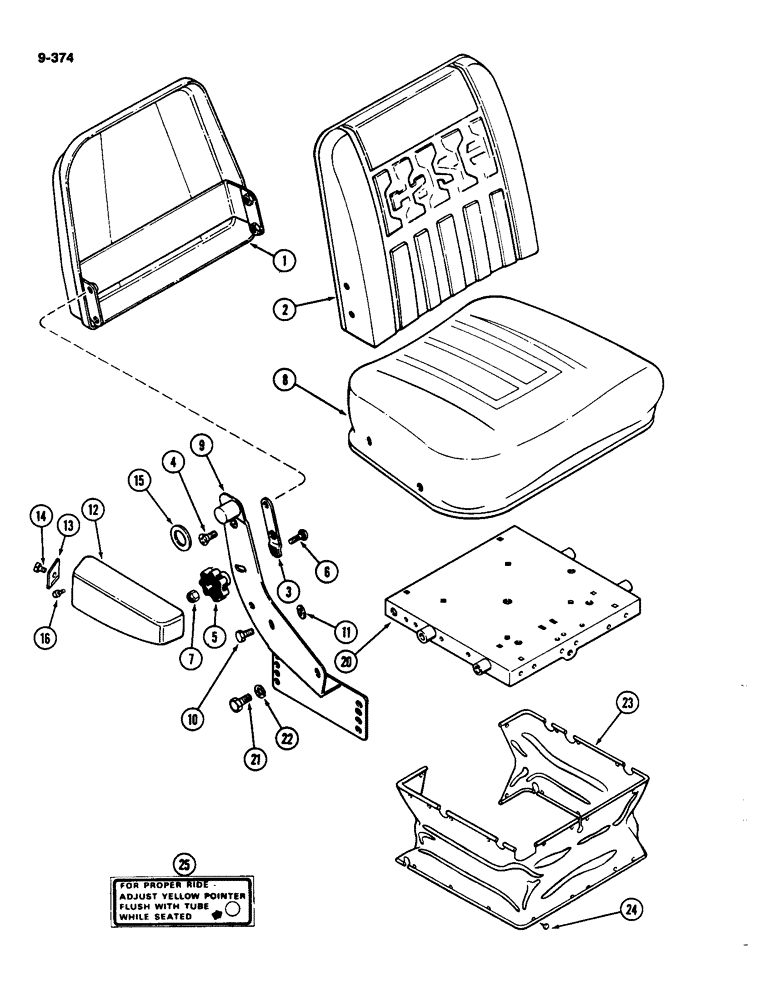

Схема запчастей Case IH 4490 - (9-374) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS
22
11
14
1
13
16
12
24
4
21
9
6
20
25
10
5
3
15
2
8
23
7

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

SEAT AND SUSPENSION ASSEMBLY - vinyl without swivel (Order A163314), Includes: Ref. 1 - 25

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest

1шт.

3

A47342

LINK

- tilt, backrest

2шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- 3/8 x 1" NC flat head Phillips

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- 3/8 x 1-1/2" NC round head square neck

2шт.

7

131-206

NUT,3/8"-16

NUT - 3/8" NC hex, jam

2шт.

8

A45570

CUSHION

SEAT - cushion

1шт.

9

A45579

BRACKET

- RH side

1шт.

9

A45580

BRACKET

- LH side

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" NC hex (Grade 5)

2шт.

11

A45519

WASHER

SPACER - cushion

12шт.

12

A45489

ARMREST

- RH

1шт.

12

A45488

ARMREST

- LH

1шт.

13

A45584

COVER

PLATE - RH armrest

1шт.

13

A45583

PLATE

COVER PLATE - LH armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - #10 x 5/8" NC self tapping

1шт.

15

192-123

WASHER

- wave, 1-1/8" ID x 1-5/8" OD

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - #10 x 1/2" NC hex socket head

2шт.

20

A45577

PLATE

- upper housing

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

23

A45576

BOOT

COVER - suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2"

24шт.

25

321-3721

DECAL

- instruction

1шт.
