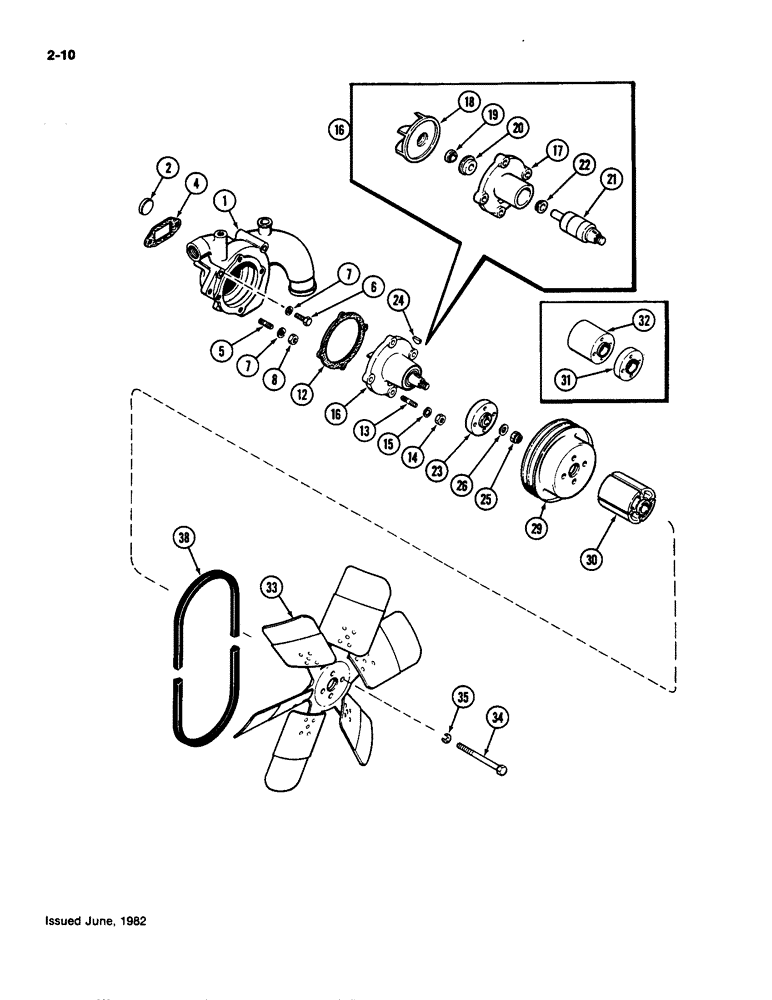

Запчасти Case IH 4490 (2-010) - WATER PUMP AND FAN, WITH KEYWAY SHAFT, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A60630
HOUSING
BODY ASSEMBLY - water pump, Includes: Ref. 2
1шт.
2
A58568
PLUG,Cup, 1 3/8", Stainless
- 1-3/8" cup type (34.92 mm)
1шт.
4
A58649
GASKET
-, Serial Range: body-block
1шт.
5
G102128
BOLT
- body to block, 3/8" NC x 1-1/2"
2шт.
6
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
7
92-6
LOCK WASHER,3/8"
4шт.
8
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
2шт.
12
A58646
GASKET
-, Serial Range: pump-body
1шт.
13
A62234
STUD
- pump to body, 3/8" NC x 1-5/16"
4шт.
14
25-146
JAM NUT,Jam, 3/8"-16, G5
- jam, 3/8" NC hex
4шт.
15
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
16
A152153
PUMP
ASSEMBLY - water (Order A157145 and 114-400 Figure 2-012), Includes: Ref. 17 - 22
1шт.
17
NSS
NOT SOLD SEPARAT
HOUSING - pump
1шт.
18
A152156
PACKAGE
IMPELLER - water
1шт.
19
A34000
SEAL
- impeller
1шт.
20
A142499
SEAL
- pump shaft
1шт.
21
A154521
SHAFT
ASSEMBLY - (Order A156995 and 114-400 Figure 2-012), Includes: Ref. 22
1шт.
22
A29440
SLINGER
- water
1шт.
23
A146221
HUB
- fan and pulley
1шт.
24
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
Hub #9, 3/16" x 3/4", HT
1шт.
25
131-1106
LOCK NUT,1/2"-20, GB
NUT, LOCK, 1/2"-20, GB
1шт.
26
A58651
WASHER
- hub nut
1шт.
29
A146982
PULLEY
- belt
1шт.
30
A161679
BUSHING
SPACER - fan, 3-7/8" (98.4 mm)(Replaces A61268 and A76912) (Used P.I.N. 8858508 and after)
1шт.
31
A61268
BUSHING
SPACER - fan, 1" (25.4 mm) thick (Used prior to P.I.N. 8858508)
1шт.
32
A76912
BUSHING
SPACER - fan, 2-7/8" (72.02 mm) thick (Used prior to P.I.N. 8858508)(Order A164647)
1шт.
33
A164663
FAN
- 22" (558.8mm)(Replaces A145323)
1шт.
34
13-680
CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5
BOLT, Hex, 3/8"-16 x 5", G5
4шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
38
A61048
SET OF BELTS,0.69" W x 58.00" L
BELT , Drive, Fan and pump (Set of 2) 0.69" W x 58.00" L
1шт.
Выбрано товаров: 30
