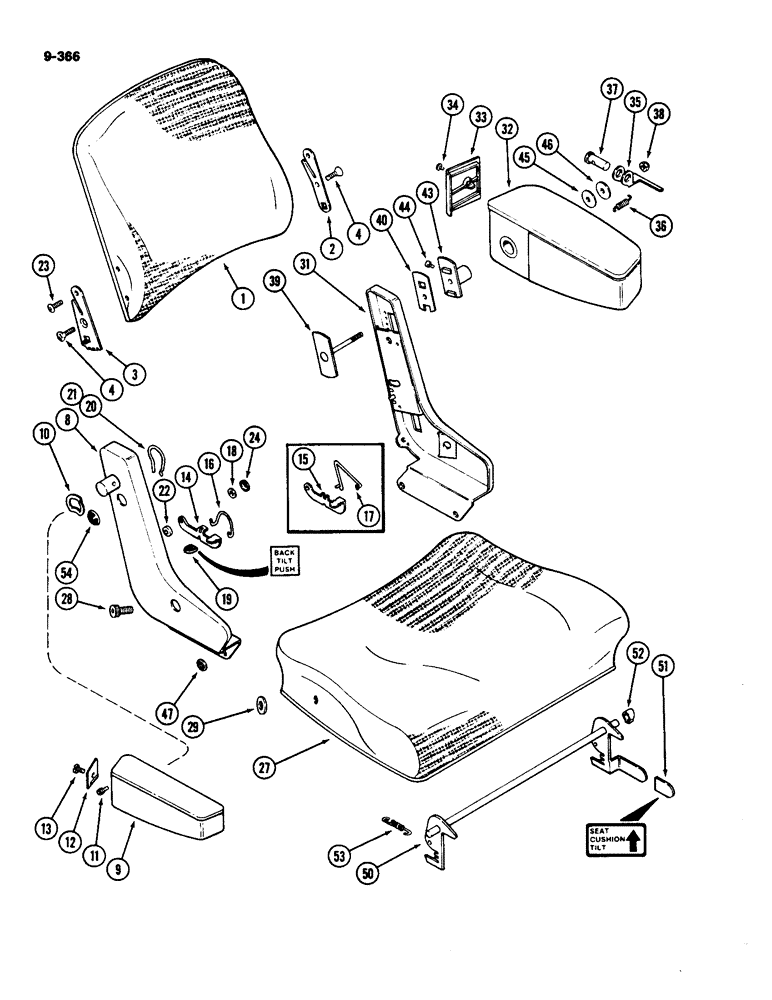

Запчасти Case IH 4490 (9-366) - SWIVEL SEAT ASSEMBLY, ARMS AND BACKREST (09) - CHASSIS/ATTACHMENTS

A161408

SEAT

ASSEMBLY - operator (Replaces A149682)(Order A163314), Includes: Ref. 1 - 54

1шт.

A47348

BACKREST

ASSEMBLY - seat, Includes: Ref. 1 - 4

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

2

A47365

LINK

- tilt, LH

1шт.

3

A47364

LINK

- tilt, RH

1шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- 3/8 x 1" NC flat head Phillips

2шт.

8

A47351

BRACKET

- RH arm rest (Early production)(Order Kit A47628)

1шт.

8

A47629

BRACKET

- RH arm rest (Late production)

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

A47628

BRACKET

KIT - RH armrest (Includes Ref 8, 14 and 16)

1шт.

9

A45489

ARMREST

- RH

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

10

A47352

WASHER

- wave, RH

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

11

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - armrest, RH (1/4 x 1/2" NC socket head)

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

12

A45584

COVER

PLATE - RH armrest

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

13

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" pan head self tapping

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

14

A47630

LATCH

- tilt, backrest (Late production)

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

15

NSS

NOT SOLD SEPARAT

LATCH - tilt, backrest (Early production)(Order Ref 14 and 16)

1шт.

16

A47631

SPRING

- tilt latch, RH (Late production)

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

17

A47357

SPRING

- tilt latch, RH (Early production)

1шт.

18

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.7 x 17.5 x 1.6 mm)

1шт.

19

A47702

CAP

- tilt latch, RH (Replaces A47358)

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

20

A47353

SPRING

- tilt link, RH

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

21

A47354

SPRING

- tilt link, LH

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

22

A47355

BUSHING

SPACER - tilt link, RH and LH

2шт.

Part of Seat Repair Kit, P/N A47701

1шт.

23

164-551

HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1"

SCREW - 3/8 x 1" NC butt head

2шт.

Part of Seat Repair Kit, P/N A47701

1шт.

24

131-432

LOCK NUT,Push, 5/16"

NUT - Push, 5/16"

2шт.

Part of Seat Repair Kit, P/N A47701

1шт.

27

A47349

SEAT

CUSHION - operator

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

28

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

- 1/2 x 1-1/4" NC socket head

2шт.

Part of Seat Repair Kit, P/N A47701

1шт.

29

A45110

WASHER

- fiber, seat retainer

2шт.

A47350

BRACKET ASSEMBLY - LH armrest, Includes: Ref. 31 - 46

1шт.

Part of Seat Repair Kit, P/N A47701

1шт.

31

A47780

BRACKET

- LH arm rest (Replaces A47366)

1шт.

32

A47373

ARMREST

- LH

1шт.

33

A47377

COVER

PLATE - LH armrest

1шт.

34

187-333

SCREW,Slotted Pan Hd, #10 x 1"

- #10 x 1" pan head self-tapping

1шт.

35

A47374

HANDLE

- adjusting cam release

1шт.

36

A47375

SPRING

- handle

1шт.

37

S47376

PIN - handle pivot

1шт.

38

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - lock, 3/8 NC hex

1шт.

39

A47367

PLATE

- handle back up

1шт.

40

A47368

BUSHING

SPACER - plate

1шт.

43

A47369

COLLAR

BOSS - handle pivot

1шт.

44

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - pivot lock (1/4 x 1/2" NC socket head)(Replaces A47370)

2шт.

45

A47371

WASHER

- fiber

1шт.

46

A47372

WASHER

- hardened steel

1шт.

47

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Seat to suspension) Push, 1/2"

4шт.

50

A47346

LEVER

- tilt, seat assembly

1шт.

51

A47347

CAP

- tilt lever

1шт.

52

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

53

A45471

- tension, tilt lever shaft

2шт.

54

353-252

PLUG,1"

- cap, hole 1"

2шт.

A47701

SEAT

KIT - seat repair, Includes: ref. nos. P/N A47348, P/N A47629, 9, 10, 11, 12, 13, 14, 16, 19, 20, 21, 22, 23, 24, 27, 28

1шт.
