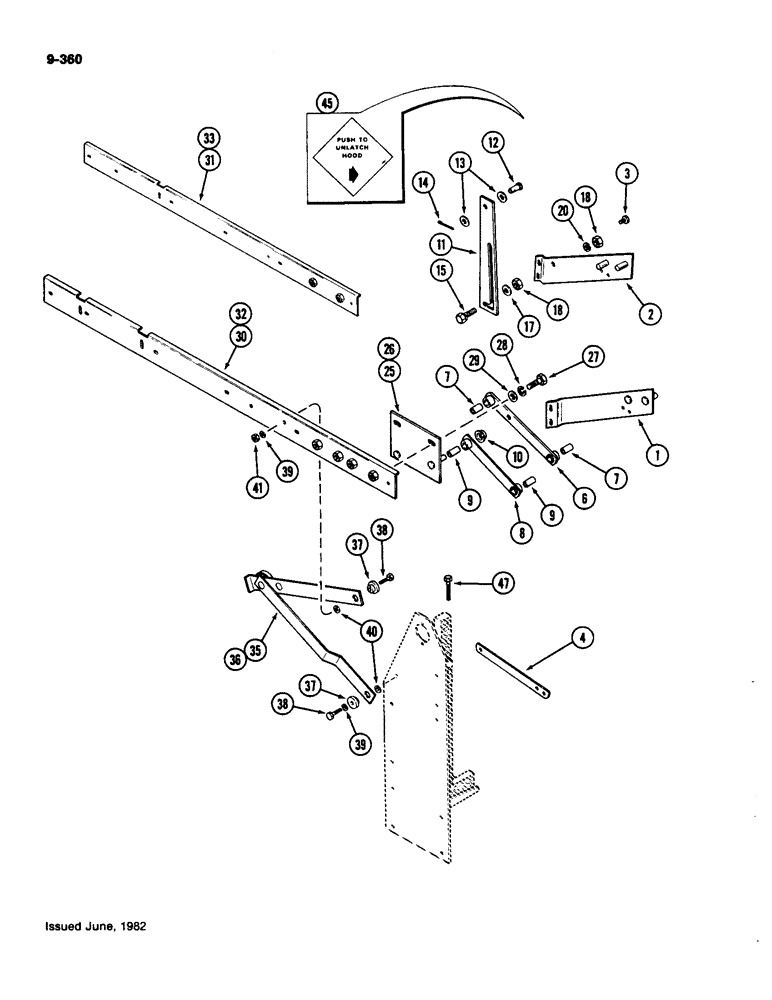

Запчасти Case IH 4490 (9-360) - HOOD HINGE AND LIFT (09) - CHASSIS/ATTACHMENTS

1

A151383

PLATE

- hinge pivot, RH

1шт.

2

A151385

PLATE

- hinge pivot, LH

1шт.

3

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

4

A161131

BAR

- hinge pivot

2шт.

6

A149730

ARM

ASSEMBLY - lower, hinge pivot, Includes: Ref. 7

2шт.

7

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

8

A149732

ARM

ASSEMBLY - upper, hinge pivot, Includes: Ref. 9

2шт.

9

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

10

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Replaces A143129) Push, 1/2"

8шт.

11

A164841

PLATE

- lock, hinge arm (Replaces A149942)

1шт.

12

A12470

PIN

- lock, Serial Range: plate-arm

1шт.

13

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (Replaces A30752)

2шт.

14

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

15

A61946

STEP BOLT

BOLT - shoulder, 7/16 x 1-3/4" NF hex (Grade 5)

1шт.

17

195-105

WASHER,7/16"

- flat, 7/16"

1шт.

18

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

2шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

25

A162890

PLATE

- pivot, RH hood support (Replaces A149724)

1шт.

26

A162891

PLATE

- pivot, LH hood support (RH shown)(Replaces A149725)

1шт.

27

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

29

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.5 x 27 x 2.4 mm)

4шт.

30

A161609

BRACKET

ANGLE - support, hood lift RH (Late production)

1шт.

31

A151369

BRACKET

ANGLE - support, hood lift RH (Early production)

1шт.

32

A161608

BRACKET

ANGLE - support, hood lift LH (RH shown)(Late production)

1шт.

33

A151371

BRACKET

ANGLE - support, hood lift LH (RH shown)(Early production)

1шт.

35

A160164

ARM

- RH, hood lift assist

1шт.

36

A160163

ARM

- LH, hood lift assist (RH shown)

1шт.

37

A160153

BUSHING

SPACER - assist arm

4шт.

38

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

4шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

45

321-3985

DECAL

- lock plate

1шт.

47

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

(Stop bolt) Hex, 3/8"-16 x 2 1/2", G5, Full Thd

2шт.
