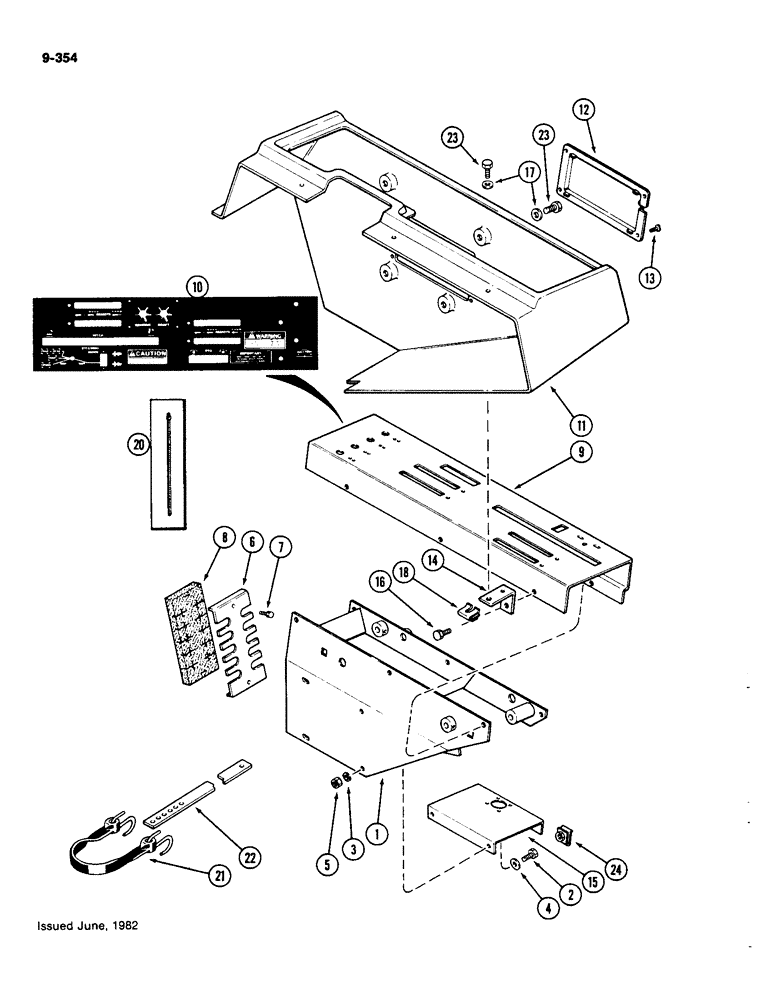

Запчасти Case IH 4490 (9-354) - OPERATORS CONSOLE, PRIOR TO P.I.N. 8860450 (09) - CHASSIS/ATTACHMENTS

1

A161038

PANEL

CONSOLE - operators control

1шт.

2

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.5 x 22.2 x 2 mm)

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

A151092

PLATE

- rear, cable guide

1шт.

7

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - self tapping, 1/4 x 1/2" hex

2шт.

8

A151093

FOAM

- seal, cable guide

1шт.

9

A160184

COVER

- console

1шт.

10

321-6264

DECAL

- console cover (Replaces 321-6207)

1шт.

11

A161367

GUARD

COWL - console (Replaces A149630)

1шт.

12

F64386

COVER

- cowl access

1шт.

13

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- #6 x 1/2" slotted pan head

4шт.

Ref #13A - 131-618 Nut used on the 182-46 Screw (Ref #13)

1шт.

14

A162593

BRACKET

- upper, cowl and cover

3шт.

15

A149448

BRACKET

- lower, cowl

1шт.

16

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, 5/16 x 3/4" hex

6шт.

17

195-2038

WASHER,13/32" x 7/8" x .035"

- 13/32 x 7/8 x 5/64" (10.3 x 22.2 x 2 mm)

8шт.

18

131-97

SPRING NUT,Tinn, U, 5/16"-18

- speed, 5/16" NC Tinnerman, Type V

5шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, control cable harness

2шт.

21

A147815

STRAP

- cable harness

1шт.

22

A161222

STRAP

- mounting, harness strap

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

24

131-97

SPRING NUT,Tinn, U, 5/16"-18

- 5/16" Tinnerman "U" Type

5шт.
