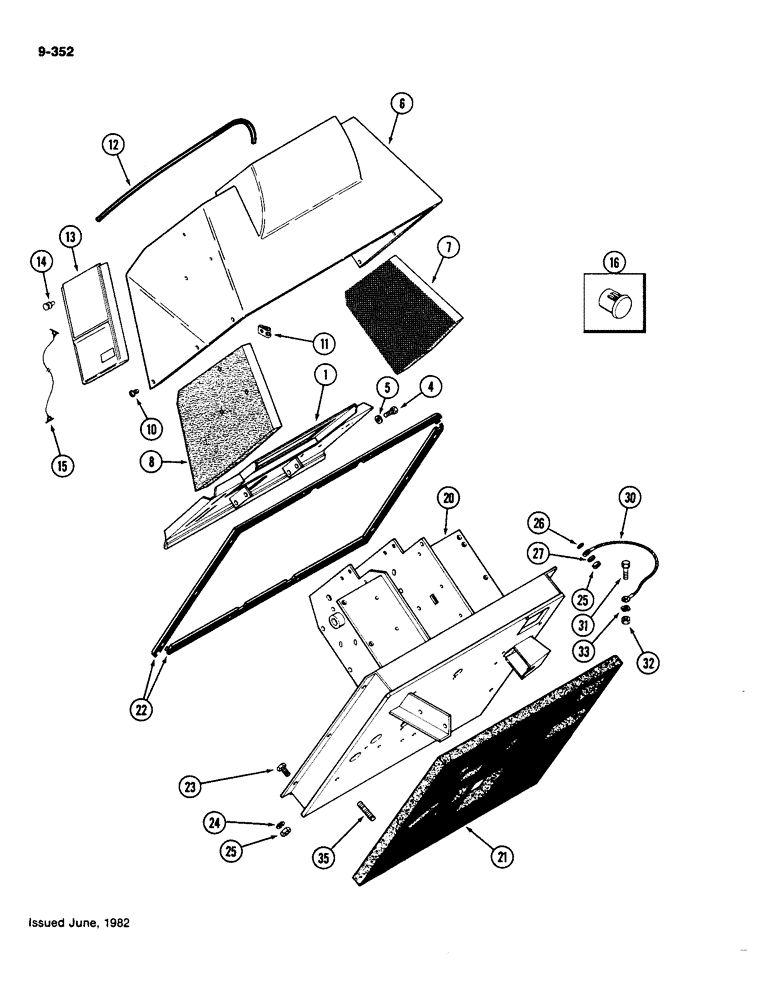

Запчасти Case IH 4490 (9-352) - INSTRUMENT PANEL AND COWL (09) - CHASSIS/ATTACHMENTS

1

A160661

PANEL

- instrument

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

A144388

GUARD

COWL - instrument cluster

1шт.

7

A149411

INSULATOR

PAD - left hand, cowl

1шт.

8

A149412

FOAM

PAD - right hand, cowl

1шт.

10

A75390

STUD

- fastener

6шт.

11

A36042

CLIP

RECEPTACLE - fastener

6шт.

12

A76234

ROPE

CORD - cowl support

1шт.

13

A141933

BOX

- operators manual

1шт.

14

A162364

FASTENER

- box to cowl (Replaces A143300)

3шт.

15

A141917

ROPE

CORD - manual retaining

2шт.

16

353-400

PLUG,Dome, .250" hole, Nylon

(Steering indicator opening) Dome, .250" hole, Nylon

1шт.

20

A162290

SUPPORT

- instrument and firewall (Replaces A160655)

1шт.

21

A152530

PAD

- firewall

1шт.

22

A162986

GASKET

- support (Replaces A152532)

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

26

193-72

LOCK WASHER

- lock, 3/8" internal-external Shakeproof

2шт.

27

195-104

WASHER,3/8"

- 7/16 x 1 x 21/16" (11.1 x 25.4 x 1.6 mm)

12шт.

30

A64704

STRAP

- ground

1шт.

31

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

33

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

35

A59077

STUD

-, Serial Range: support-cab

2шт.
