Запчасти Case IH 4490 (9-348) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS

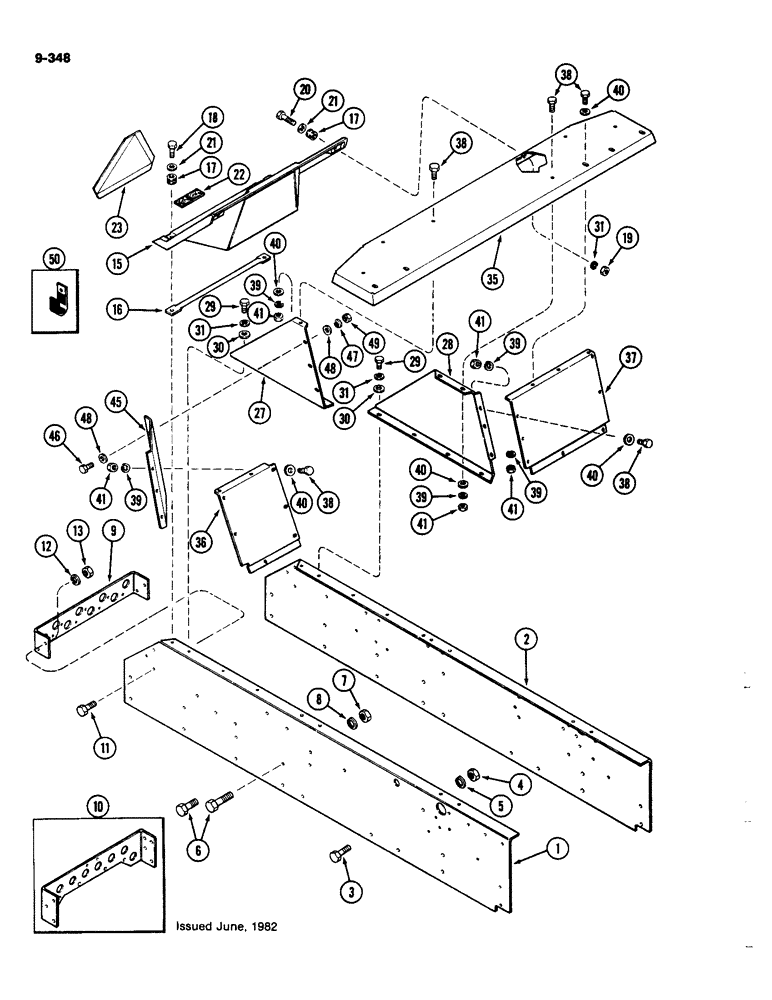

Схема запчастей Case IH 4490 - (9-348) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS
38
41
39
4
41
21
27
48
41
41
38
23
28
31
40
15
41
35
18
31
30
49
11
50
17
39
1
17
7
29
40
12
5
40
8
6
30
10
31
37
21
46
36
39
29
39
2
48
47
3
20
13
9
39
40
38
22
16
19
40
38
45

Артикул

Название

Примечание

Количество

1

A161941

PLATE

- side, RH (Replaces A149413)

1шт.

2

A161942

PLATE

- side, LH (Replaces A149414)

3шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

6

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8 x 2-1/4" NC hex (Grade 5)

8шт.

7

129-107

NUT,5/8"-11, G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A165362

PLATE

- mounting, hydraulic coupling (Replaces A162453)

1шт.

10

A149229

PLATE

- rear, hydraulic coupling mounting (Order A162453)

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

12--105

NUT - 1/2" NC hex

1шт.

15

A149659

RIGID PLATFORM

PLATFORM - rear

1шт.

16

A160390

SUPPORT

- cross, rear cover

1шт.

17

A162019

GROMMET

- rear cover mounting (Replaces A149880)

4шт.

18

113-2275

BOLT - 3/8 x 1-1/4" NC hex (Grade 5)

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

113-2276

BOLT (SPREADER),Locking, 3/8" - 16 x 1-1/2", Gr 8

BOLT - 3/8 x 1-1/2" NC hex (Grade 5)

4шт.

21

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

4шт.

22

A143553

TREAD

- non slip, rear platform

6шт.

23

321-4311

DECAL

- SMV emblem

1шт.

27

A149450

SHEET

- RH side, rear platform

1шт.

28

A149449

SHEET

- LH, rear platform

1шт.

29

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

30

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

6шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

35

NLS

NO LONGER SERVICED

- rear

1шт.

36

A149646

GUARD

- RH rear

1шт.

37

A149647

GUARD

- LH rear

1шт.

38

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

9шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

40

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

6шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

45

A149645

GUARD

- console cables (RH rear corner)

1шт.

46

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

48

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

12шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

50

A149624

CLIP

- retaining

3шт.

Выбрано товаров: 42
