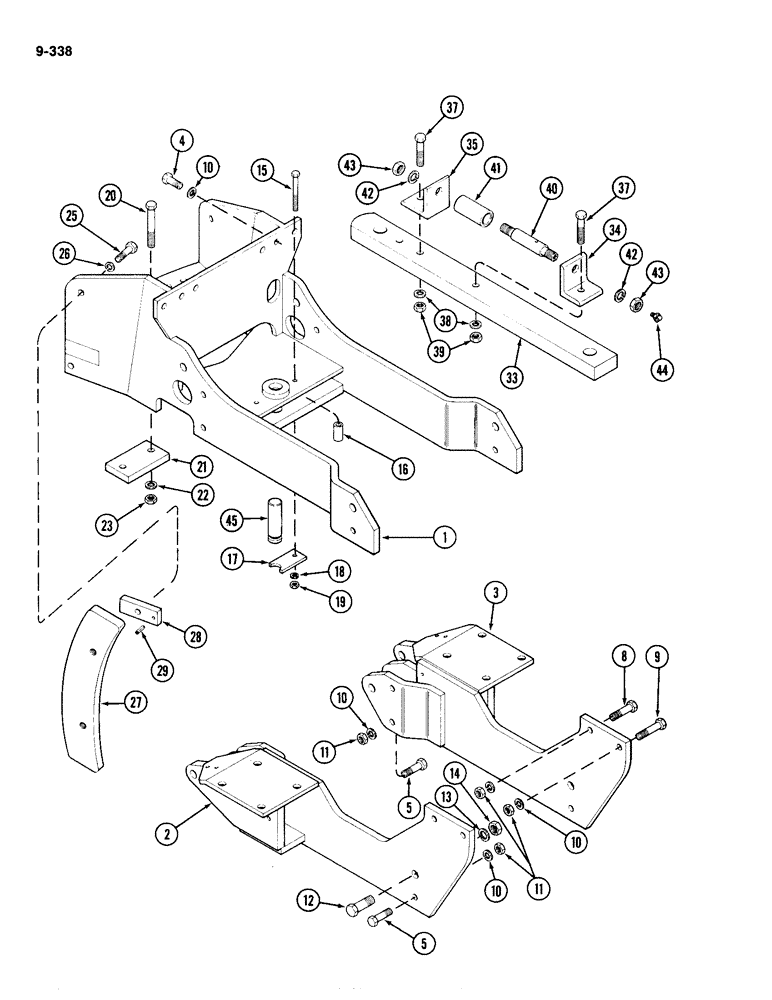

Запчасти Case IH 4490 (9-338) - DRAWBAR AND SUPPORTS, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A162545

DRAWBAR, SWINGING

SUPPORT - drawbar

1шт.

2

A161984

BRACE

- drawbar, R.H. (with hitch)

1шт.

3

A161983

BRACE

- drawbar, L.H. (with hitch)

1шт.

4

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

5

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex head

6шт.

8

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex head

3шт.

9

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

10

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

11

129-108

NUT,3/4"-10, G5

10шт.

12

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

2шт.

13

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

14

129-110

NUT,1"-8, G5

2шт.

15

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

16

A75459

BUSHING

SPACER - drawbar bolt lock

2шт.

17

T38570

LOCK

- strap, drawbar pin

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

20

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" NC hex head

2шт.

21

T38563

PLATE

- fixed, drawbar

1шт.

22

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

129-108

NUT,3/4"-10, G5

2шт.

25

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex head

4шт.

26

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

27

A165275

BLOCK

- sway (Replaces A164410)

2шт.

28

A162548

BUSHING

SPACER ASSEMBLY - sway block, Includes: Ref. 29

4шт.

29

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, (6.4 mm 31.8 mm) 1/4" x 1 1/4", Slotted

1шт.

33

A160305

DRAWBAR, SWINGING

DRAWBAR - towing

1шт.

A163269 Drawbar Support

1шт.

34

T38568

BRACKET

ANGLE - roller mounting, forward

1шт.

35

A75458

BRACKET

ANGLE - roller mounting, rear

1шт.

37

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

39

25-1012

NUT,3/4"-10, G5

2шт.

40

T38572

PIN

- drawbar roller

1шт.

41

A145831

BUSHING

- roller, drawbar

1шт.

42

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

43

129-110

NUT,1"-8, G5

2шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

45

T38569

PIN,38.1mm OD x 127mm L

- front, drawbar

1шт.
