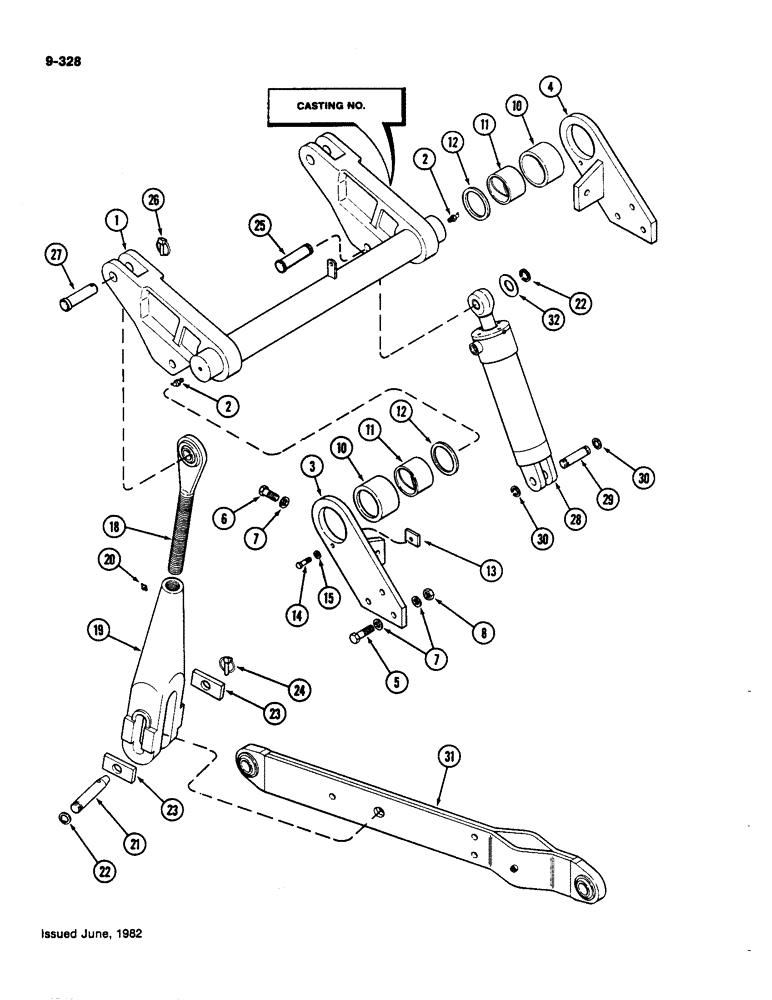

Запчасти Case IH 4490 (9-328) - THREE POINT HITCH, LIFT LINKS AND ROCKSHAFT, P.I.N. 8860450 & AFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A164413
ROCKSHAFT
- hitch (Stamped A164411 on arm)
1шт.
1
A164276
ROCKSHAFT
- hitch (Stamped A164275 on arm)
1шт.
For repairs order 1-A164413 rockshaft, 2-A163277 pin, 2-A165314 pin, 2-17406 ring, and 2-195-559 washer.
1шт.
2
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - lube, 45 degree x 1/8" PT
2шт.
3
A146765
SUPPORT
- bearing, rockshaft R.H
1шт.
4
A146766
SUPPORT
- bearing, rockshaft L.H
1шт.
5
28-1248
BOLT,Hex, 3/4" - 16 x 3", Gr 8
- 3/4 x 3" NF hex head
6шт.
6
26-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8
- 3/4 x 1-3/4" NC hex head
2шт.
7
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- support bolt
14шт.
8
131-186
LOCK NUT,3/4"-16, GB
NUT - lock, 3/4" NF hex (Esna)
6шт.
10
A161892
BEARING ASSY
HOUSING ASSEMBLY - bearing rockshaft, Includes: Ref. 11
2шт.
11
A162505
BUSHING
- rockshaft
1шт.
12
A32804
WASHER
- thrust, rockshaft
2шт.
13
A146768
KEY
- retainer, housing
2шт.
14
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
15
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
18
A141049
ROD
ASSEMBLY - lift link
2шт.
19
A75969
LINK
- lift, clevis
2шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - lube, straight 1/8"
2шт.
21
A76286
PIN,31.6mm OD x 193.04mm L
- lift link, lower
2шт.
22
17406
RING
- snap, link pin
2шт.
23
A63515
PLATE
- stop, lift link
4шт.
24
A64204
PIN
ASSEMBLY - klik, locking
2шт.
25
A165314
PIN
- pivot, hitch cylinder upper
2шт.
26
A30338
PIN
ASSEMBLY - klik, locking
2шт.
27
A163277
PIN
- lift link, upper (Replaces A76284)
2шт.
28
REF
INSTRUCTION
CYLINDER ASSEMBLY - hitch (See Figure 8-324)
2шт.
29
A76281
PIN
- pivot, hitch cylinder lower
2шт.
30
A12667
RING
- snap, lower pin
4шт.
31
REF
INSTRUCTION
ARM ASSEMBLY - draft (See Figure 9-330)
2шт.
32
195-2125
WASHER,1 5/16" x 2" x .109"
-- 1-5/16 x 2 x 7/64" (33.34 x 50.8 x 2.78 mm)
2шт.
Выбрано товаров: 31
