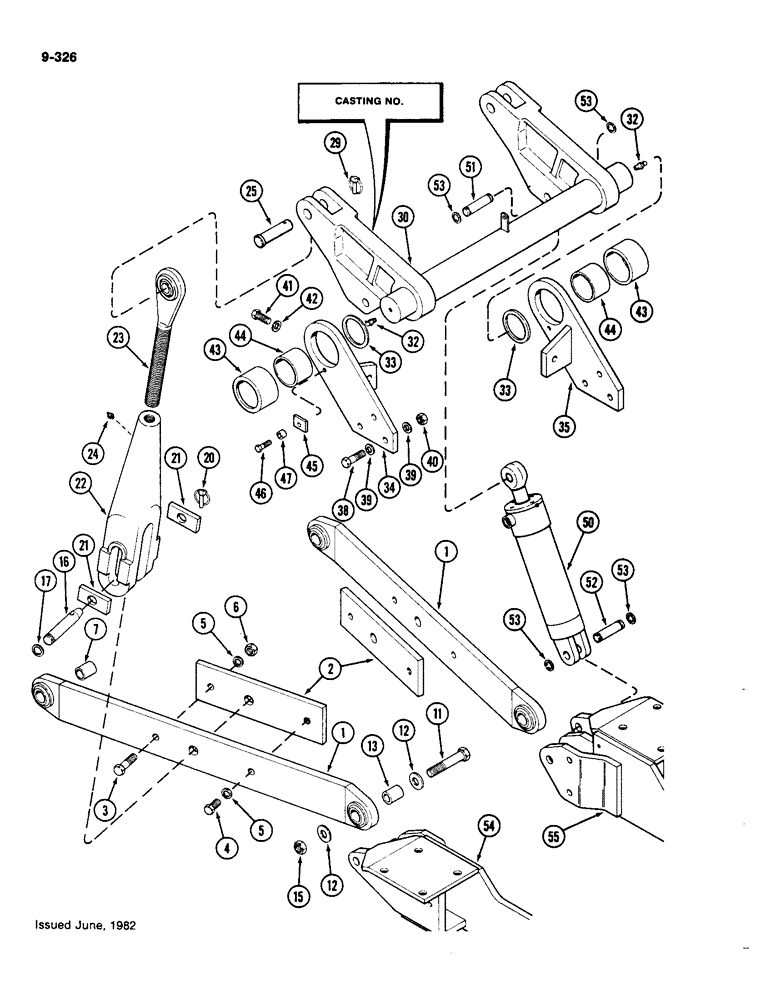

Запчасти Case IH 4490 (9-326) - THREE POINT HITCH, DRAFT ARMS, LIFT LINKS AND ROCKSHAFT, PRIOR TO P.I.N. 8860450 (09) - CHASSIS/ATTACHMENTS

1

A75392

ARM

- draft, RH and LH

2шт.

2

A75473

STRAP

- stiffener

2шт.

3

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex (Grade 5)

2шт.

4

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

L10463

BUSHING

- hitch pin (Category ll)

2шт.

11

114-904

BOLT,Hex, 1" - 14 x 5", Gr 8

- arm pivot, 1 x 5" NF hex (Grade 5)

2шт.

12

A139817

WASHER

- pivot

4шт.

13

T38561

BUSHING

- pivot, draft arm

2шт.

15

131-188

LOCK NUT,1"-14, GB

NUT - lock, 1" NF hex

2шт.

16

A76286

PIN,31.6mm OD x 193.04mm L

- lift link to draft arm

2шт.

17

17406

RING

- snap

2шт.

20

A64204

PIN

- klik

2шт.

21

A63515

PLATE

- stop

4шт.

22

A75969

LINK

- clevis

2шт.

23

A141049

ROD

- lift link

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

25

A163277

PIN

- lift link to rockshaft (Replaces A76284 pin 17406 ring)

2шт.

29

A30338

PIN

- klik

2шт.

30

A164431

ROCKSHAFT

- hitch (Stamped A164417 on arm)

1шт.

30

A160509

ROCKSHAFT

- hitch (Stamped A160487 on arm)

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" PT 45 degrees

2шт.

33

A32804

WASHER

- thrust

1шт.

34

A75396

SUPPORT

- RH bearing, rockshaft

1шт.

35

A75397

SUPPORT

- LH bearing, rockshaft

1шт.

38

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- 3/4 x 3" NF hex (Grade 8)

6шт.

39

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4 x 1-3/8 x 9/64" (19.05 x 34.92 x 3.57 mm)

12шт.

40

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" NF hex

6шт.

41

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- 3/4 x 1/3/4" NC hex (Grade 8)

2шт.

42

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4 x 1-3/8 x 9/64" (19.05 x 34.92 x 3/57 mm)

2шт.

43

A75399

HOUSING

ASSEMBLY - bearing, Includes: Ref. 44

2шт.

44

A75401

BUSHING

BEARING - rockshaft pivot

1шт.

45

A75402

KEY

- bearing retainer

2шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

47

A148908

SPACER

- locking (Replaces 192-23)

2шт.

50

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic lift (See Figure 8-322 and 8-324)

2шт.

51

A164416

PIN

- upper, 4-1/2" (114.3 mm) long

2шт.

52

A76281

PIN

- lower, 3-12" (88.9 mm) long

2шт.

53

A12667

RING

- snap

8шт.

54

REF

INSTRUCTION

BRACE - drawbar, RH (See Figure 9-336)

1шт.

55

REF

INSTRUCTION

BRACE - drawbar, LH (See Figure 9-336)

1шт.
