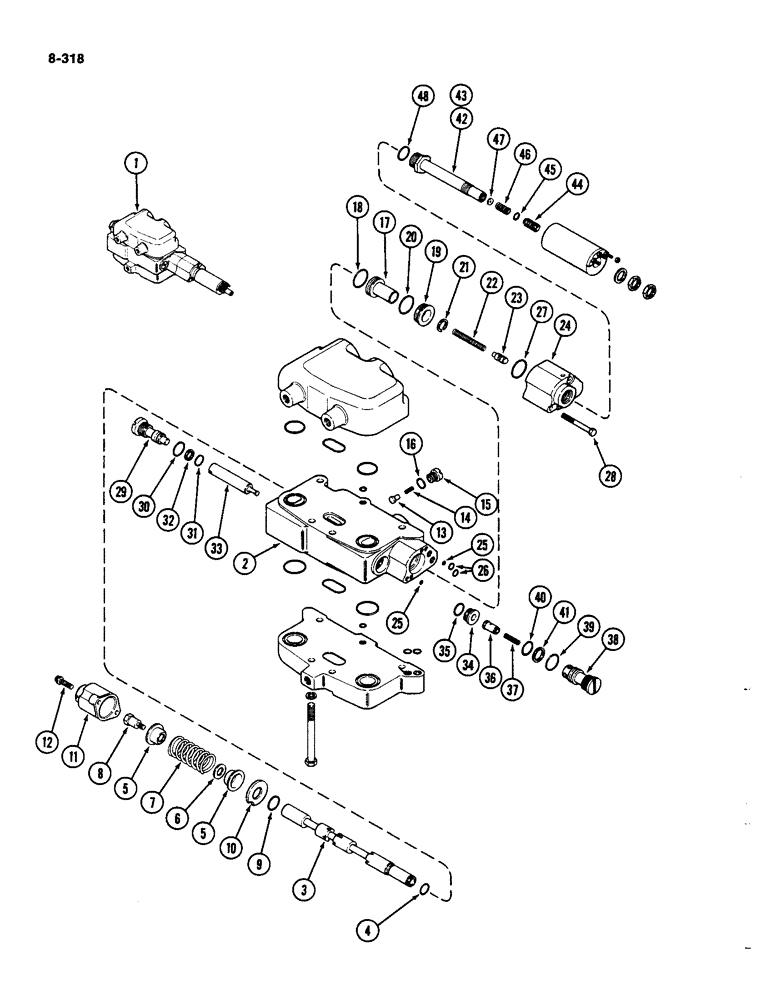

Запчасти Case IH 4490 (8-318) - HITCH CONTROL VALVE ASSEMBLY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A161686
VALVE
ASSEMBLY - hitch control, Includes: Ref. 2 - 48, 49 - 60 on Figure 8-320, and kit
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - three way (Order A161686), Includes: Ref. 2 - 48 and kit
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - three way valve
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
- valve spool
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
5
A47963
WASHER
- spring seat
2шт.
6
F8235
WASHER
- spool screw
1шт.
7
A47975
SPRING
- spool
1шт.
8
H138248
SCREW,1/4" - 20 x 7/16"
- valve spool
1шт.
9
A47982
O-RING,0.489" ID x 0.629" OD
- valve spool (In body)
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
10
H205070
RETAINER
- o-ring
1шт.
11
A47964
CAP
- end, valve
1шт.
12
166-505
12 PT SCREW,Flg, 1/4" - 28 x 7/8", Gr 8
SCREW - 1/4 x 7/8 NF, 12 point head
2шт.
13
F36081
VALVE POPPET
PLUNGER - lift check
1шт.
14
F36082
SPRING
- lift check
1шт.
15
H229203
PLUG
ASSEMBLY - lift check, Includes: Ref. 16
1шт.
16
H756627
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
- lift check plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
17
A47965
SLEEVE
ASSEMBLY - valve spool, Includes: Ref. 18
1шт.
18
A47966
SEAL
O-RING - spool sleeve
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
19
A47967
BUSHING
ASSEMBLY - spool sleeve, Includes: Ref. 20
1шт.
20
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- sleeve bushing
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
21
A47973
RING
- snap, spool retainer
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
22
A47974
SPRING
- valve spool
1шт.
23
A47968
SPOOL
- servo control
1шт.
24
A47969
CAP
- solenoid adapter
1шт.
25
T30271
O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro
- valve body
2шт.
Part of three way valve repair kit, P/N A47985
1шт.
26
A27358
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
- valve body
2шт.
Part of three way valve repair kit, P/N A47985
1шт.
27
H757492
SEAL
O-RING - valve body
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
28
13-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
Includes: Ref. 30 - 32 Hex, 1/4"-20 x 2 1/4", G5
2шт.
29
A47970
PLUG
ASSEMBLY - lockout
1шт.
30
D31410
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
- lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
31
H756783
O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro
- lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
32
A47971
RING
- backup, lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
33
NSS
NOT SOLD SEPARAT
PLUNGER - lockout
1шт.
34
A47977
SEAT
ASSEMBLY - poppet, Includes: Ref. 35
1шт.
35
D48359
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
- poppet seat
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
36
A47962
VALVE POPPET
POPPET - lockout
1шт.
37
A47976
SPRING
- poppet (light blue)
1шт.
38
A47978
PLUG
ASSEMBLY - lockout, Includes: Ref. 39 - 41
1шт.
39
A41316
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
- lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
40
D31410
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
- lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
41
A41346
RING
- backup, lockout plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
42
A47957
CORE
ASSEMBLY - solenoid, Includes: Ref. 43 - 48
1шт.
43
NSS
NOT SOLD SEPARAT
CORE ASSEMBLY - sub, solenoid
1шт.
44
A47959
PLUG
- adjustment
1шт.
45
A47983
O-RING,2.38mm Thk x 18.82mm ID
- adjustment plug
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
46
A47961
SPRING
- solenoid
1шт.
47
A47960
WASHER
- solenoid core
1шт.
48
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
- solenoid core
1шт.
Part of three way valve repair kit, P/N A47985
1шт.
A47985
SEAL
KIT - repair, three way valve, Includes: Refs. 4, 9, 16, 18, 20, 21, 25, 26, 27, 30, 31, 32, 35, 39 40, 41, 45 and 48
1шт.
