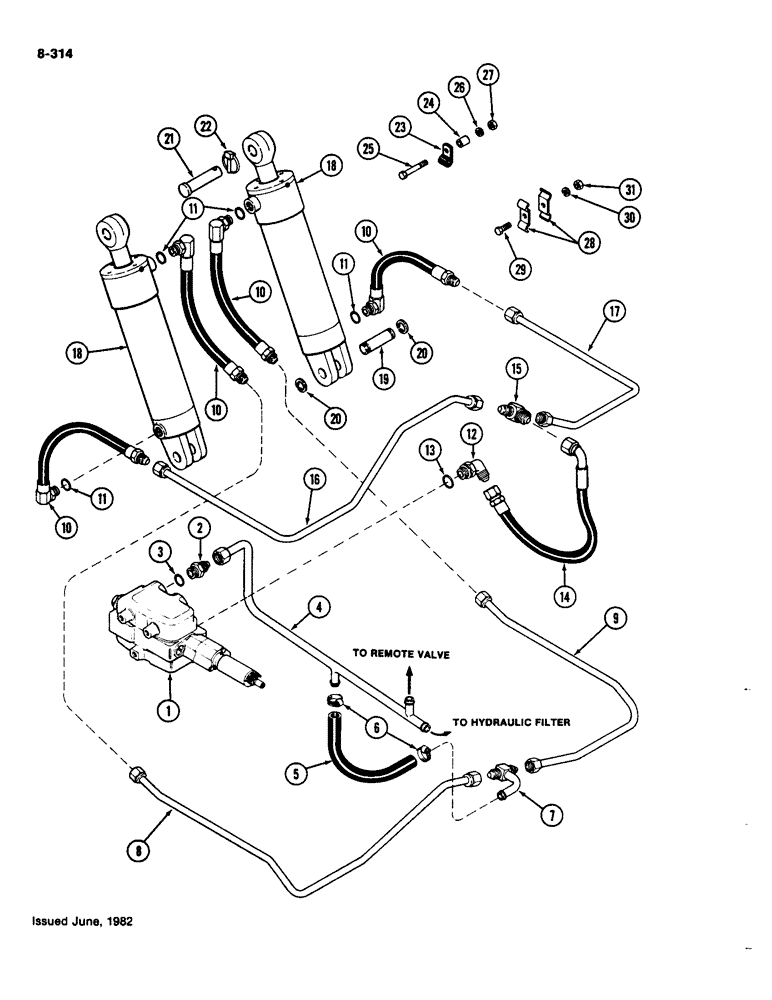

Запчасти Case IH 4490 (8-314) - HITCH CONTROL CIRCUITRY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

A161686

VALVE

ASSEMBLY - hitch control (See Figure 8-318)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4" tube with 1-5/16"-12 thread, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width)

1шт.

4

A162571

TUBE

ASSEMBLY - drain, hitch valve

1шт.

5

A162206

HOSE - drain, 16" (406.04 mm) long (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.2 to 44.5 mm)

2шт.

7

A162204

TUBE

JUNCTION - 90 degrees 5/8" hose stem x 7/8"-14 thread

1шт.

8

A162039

TUBE

ASSEMBLY - return, RH

1шт.

9

A162040

TUBE

ASSEMBLY - return, LH

1шт.

10

A75438

HOSE

ASSEMBLY - hitch cylinder

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

4шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4" tube tube with 1-1/16"-12 thread, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

14

A148749

HOSE

ASSEMBLY - pressure, hitch valve (Replaces L16415)

1шт.

15

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

CONNECTOR - tee, 5/8" tube with 7/8"-14 thread (Ends) x 3/4" tube with 1-1/16"-12 thread (Branch)

1шт.

16

A161893

TUBE

ASSEMBLY - cylinder pressure, RH

1шт.

17

A161894

TUBE

ASSEMBLY - cylinder pressure, LH

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch lift (See Figure 8-324)

2шт.

19

A76281

PIN

- cylinder, lower, 3-1/2" (88.9 mm) long

2шт.

20

12667

CAM

RING - snap, lower pin

2шт.

21

A165314

PIN

- cylinder, upper, 1-1/4" (31.8 mm) diameter (replaces A162396)

2шт.

22

A30338

PIN

ASSEMBLY - klick, upper pin

2шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- cylinder tube

4шт.

24

A140434

BUSHING

SPACER - tube clamp

2шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex head

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

28

A17542

CLAMP

- tube support

2шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.
