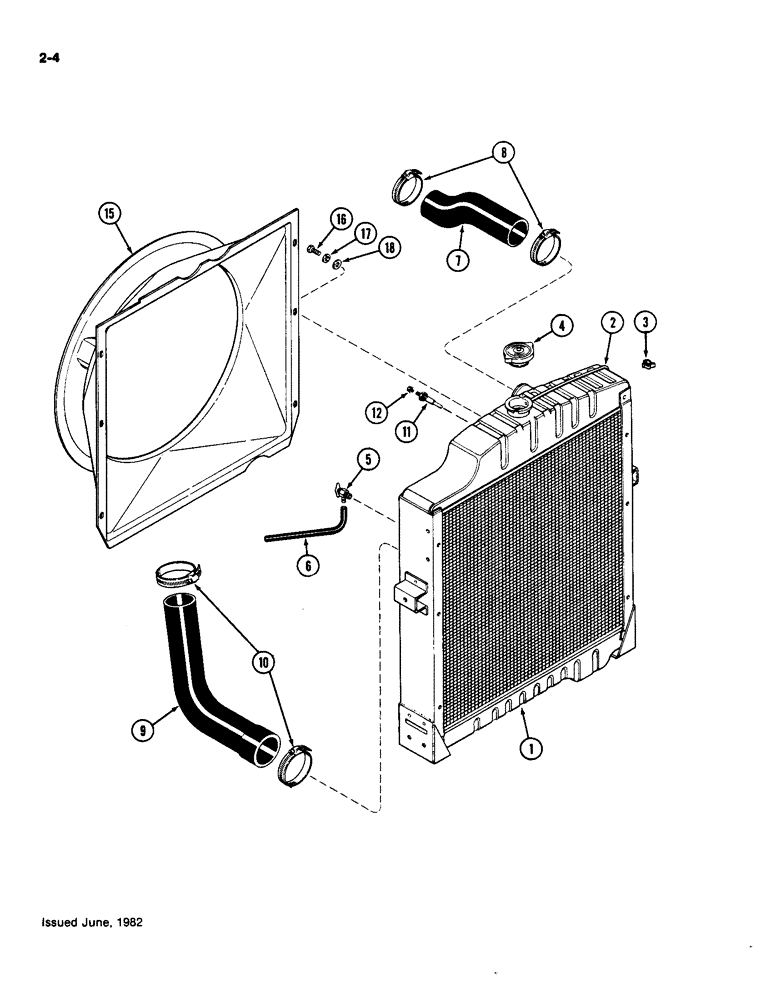

Запчасти Case IH 4490 (2-004) - RADIATOR AND HOSES, 504BDT DIESEL ENGINE (02) - ENGINE

1

A160424

RADIATOR

- engine coolant

1шт.

2

A45690

TUBE

- radiator overflow

1шт.

3

A62079

CLIP

- overflow tube retaining

2шт.

4

A143721

CAP

- pressure, 10 PSI (68.95 kPa)

1шт.

5

A27862

COCK, DRAIN

VALVE - drain (1/4" PT)

1шт.

6

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.

7

A150566

RADIATOR HOSE,63.5 mm ID x 313.7 mm, SAE 20R4

Upper, Radiator to Head 63.5 mm ID x 313.7 mm, SAE 20R4

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-1/2" to 3-1/2" (63.5 x 88.9 mm)

2шт.

9

A150567

RADIATOR HOSE,2.62" ID, 3.00" ID x 13.40", SAE 20R4

Lower, Water Pump to Radiator 2.62" ID, 3.00" ID x 13.40", SAE 20R4

1шт.

10

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16" to 3-3/4" (71.44 x 95.25 mm)

2шт.

11

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

15

A151085

GUARD

SHROUD - fan

1шт.

16

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Fan shroud Hex, 3/8"-16 x 5/8", G5, Full Thd

6шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fan shroud 3/8"

6шт.

18

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.1 x 25.4 x 1.9 mm), fan shroud

6шт.
