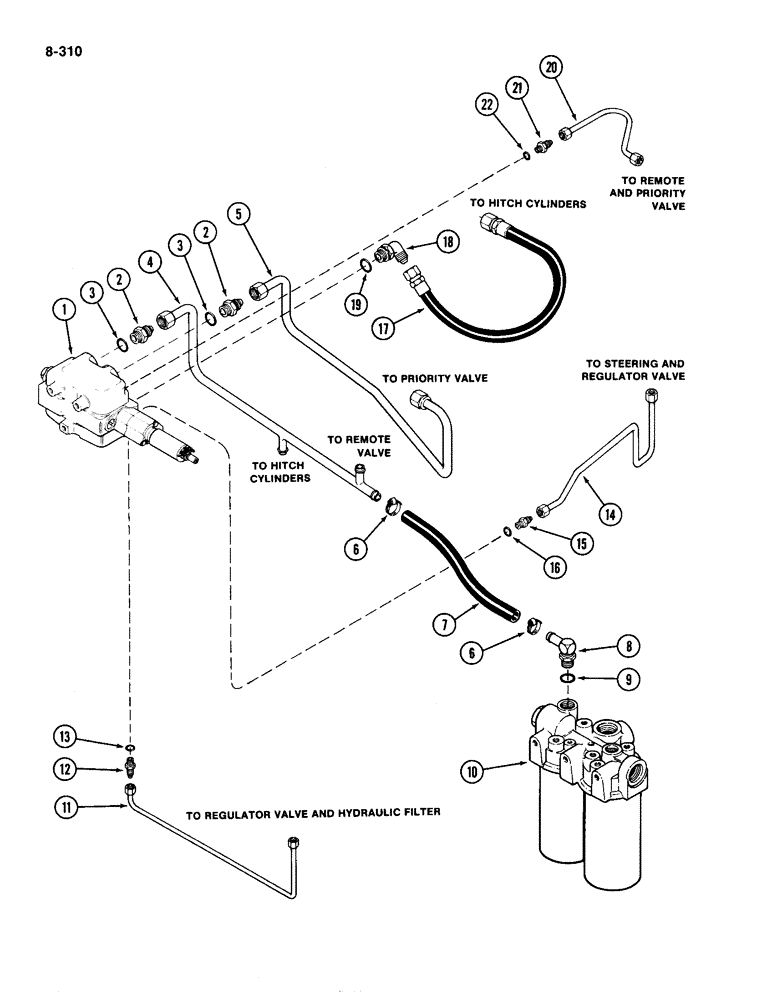

Запчасти Case IH 4490 (8-310) - DEPTH CONTROL VALVE CIRCUITRY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

A161686

VALVE

ASSEMBLY - hitch depth control (See Figure 8-318)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4" tube with 1-1/15"-12 thread, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width)

1шт.

4

A162571

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162570

TUBE

ASSEMBLY - priority valve to hitch valve

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.2 to 44.5 mm)

1шт.

7

A162206

HOSE - drain, 16" (406.4 mm) long (with out PTO) (Order D55911 and, Serial Range: cut-length)

4шт.

7

A162205

HOSE - drain, 9-1/2" (241.3 mm) long (with PTO) (Order D55911 and, Serial Range: cut-length)

4шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degrees, 3/4" hose stem x 3/4" tube, 1-1/16"-12 thread, Incl. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width)

1шт.

10

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-252)

1шт.

11

A163223

TUBE

ASSEMBLY - hitch valve drain

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 1/4" tube with 7/16"-20 thread, Includes: Ref. 13

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

14

A162611

TUBE

ASSEMBLY - hitch valve to steering valve

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8" tube with 9/16"-18 thread, Incl. Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

17

A148749

HOSE

ASSEMBLY - pressure, hitch valve (replaces L16415)

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4" tube with 1-1/16"-12 thread, Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16" ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

20

A162568

TUBE

ASSEMBLY - hitch valve sensing

1шт.

21

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8" tube with 9/16"-18 thread x 1/4" tube with 7/16"-20 thread, Includes: Ref. 22

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.
