Запчасти Case IH 4490 (8-308) - DEPTH CONTROL VALVE CIRCUITRY, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

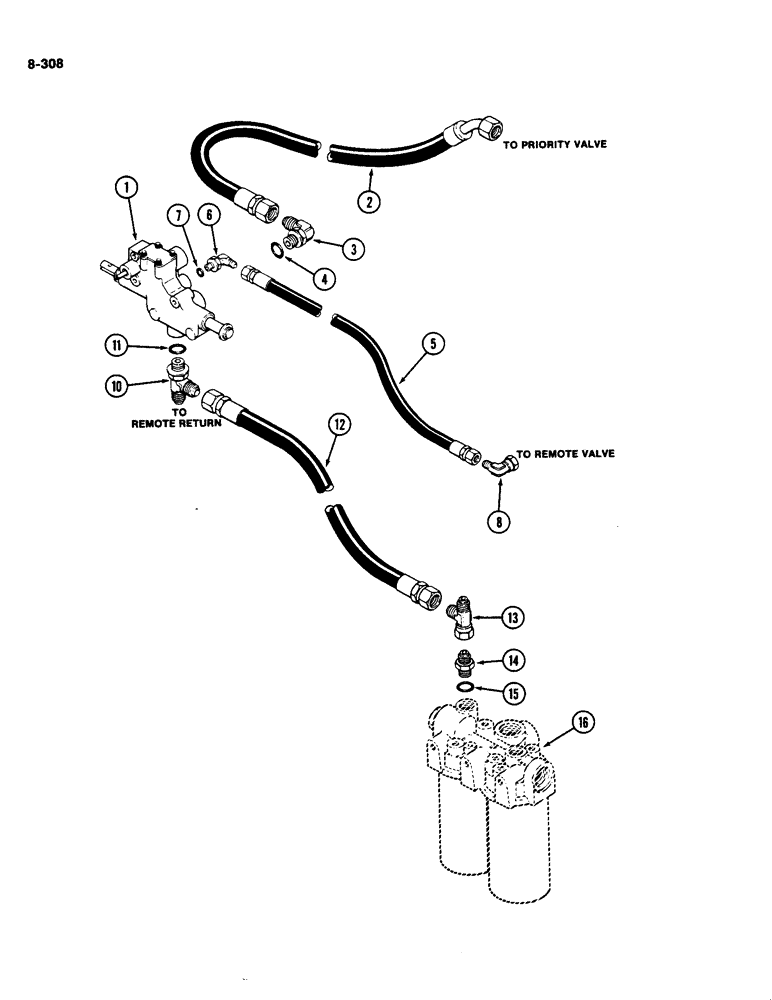

Схема запчастей Case IH 4490 - (8-308) - DEPTH CONTROL VALVE CIRCUITRY, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS
10
5
2
15
4
16
6
12
8
14
3
7
11
1
13

Артикул

Название

Примечание

Количество

1

A143173

VALVE

ASSEMBLY - depth control (See Figure 8-316)

1шт.

2

A162013

HOSE

- priority valve to tee to depth control valve (Replaces A148038)

1шт.

3

208-5108

ELBOW ASSEMBLY - 90 degrees, 3/4" tube x 1-1/16"-12, Includes: Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" with (23.47 ID x 2.95 mm width)

1шт.

5

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , Remote Valve Tee to Depth Control Valve 0.38" ID x 18.75", SAE 100R1

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degrees, 3/8" tube x 9/16" - 18, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees, 3/8" tube x 9/16" -18 (at remote valve tee)

1шт.

10

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tee, return, 3/4" tube x 1-1/16" - 12, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

12

A160403

HOSE,0.75" ID x 37.00", SAE 100R4

- Return, Valve Tee to Filter Tee 0.75" ID x 37.00", SAE 100R4

1шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Connector, 3/4" tube 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/4" tube x 1-1/16"-12, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

16

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-252)

1шт.

Выбрано товаров: 15
