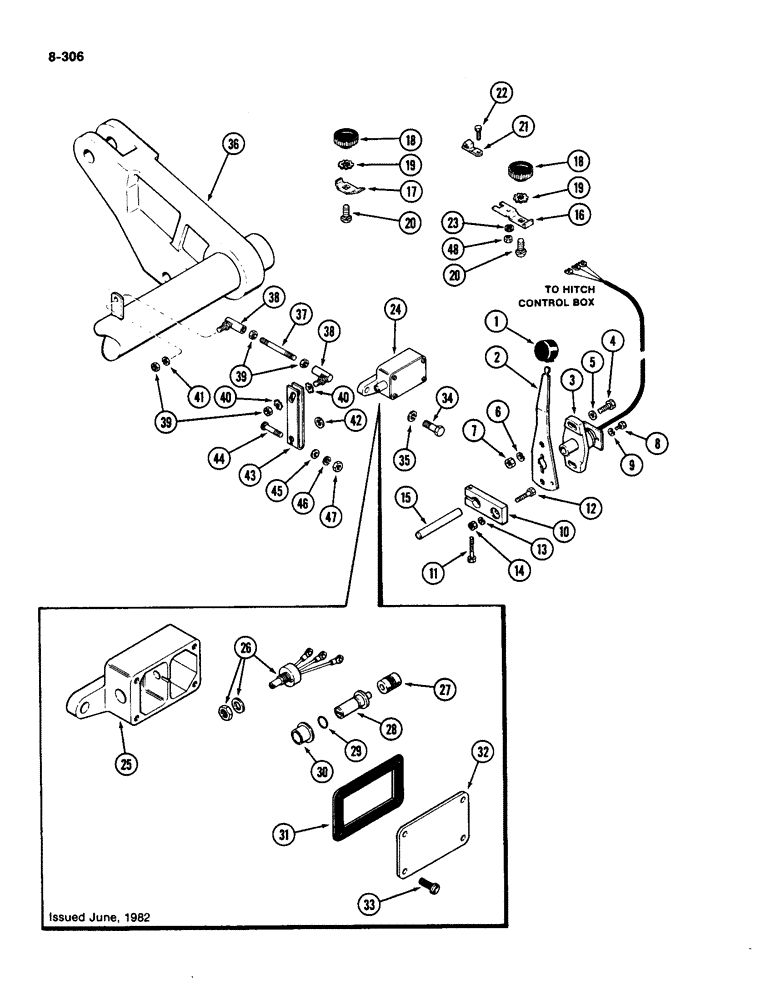

Запчасти Case IH 4490 (8-306) - HITCH DEPTH CONTROLS, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

A137806

KNOB

Hand lever

1шт.

2

A162363

LEVER

Hand control, hitch

1шт.

3

A162359

TRANSMITTER

SENSOR ASSEMBLY - hitch lever (See Figure 4-116)

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

195-104

WASHER,3/8"

WASHER - flat, 7/16 x 1 x 5/64" (11.1 x 25.4 x 1.9 mm)

2шт.

6

192-21

LOCK WASHER,3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

10

A162366

BLOCK

Friction

1шт.

11

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

(Replaces 113-14)

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

192-21

LOCK WASHER,3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

15

A162326

SHAFT

Hand lever

1шт.

16

A162758

CLAMP

Lever stop, front

1шт.

17

A161030

CLAMP

Lever stop, rear

1шт.

18

A143181

NUT

Stop clamp

2шт.

19

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

3/8" external-internal

2шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

2шт.

21

141542

DRIVING SPROCKET

SPARE PART TAB - lockout

1шт.

22

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

(Replaces A160353 wave washer)

1шт.

24

A162103

TRANSMITTER

SENSOR ASSEMBLY - rockshaft (See Figure 4-116), Includes: Ref. 25 - 33

1шт.

25

A162084

HOUSING

Sensor

1шт.

26

A162104

POTENTIOMETER,5000 Ohm, 8 VDC

Sensor

1шт.

27

A162622

FLEXIBLE COUPLING

Flexible

1шт.

28

A162085

SHAFT

Sensor

1шт.

29

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

Sensor shaft

1шт.

30

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor Shaft

1шт.

31

A162090

GASKET

Housing cover

1шт.

32

A162089

COVER

Housing

1шт.

33

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

Machine, 1/4 x 3/4" NC pan head slotted (Replaces 182-204)

4шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces 113-417)

2шт.

35

192-23

LOCK WASHER,1/2"

2шт.

36

REF

INSTRUCTION

ROCKSHAFT - hitch (See Figure 8-328)

1шт.

37

A161914

ROD

Sensor control

1шт.

38

A6604

BALL JOINT ASSEMBLY - sensor rod

2шт.

39

129-122

NUT,5/16"-24, G5

4шт.

40

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

42

A162087

WASHER

Thrust, sensor

1шт.

43

A162755

LEVER

Sensor

1шт.

44

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - 1/4 x 1-1/4" NC round head square neck

1шт.

45

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") (7.14 x 15.87 x 1.67 mm)

1шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

47

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

48

131-1180

LOCK NUT,1/4"-20, GA

1шт.
