Запчасти Case IH 4490 (8-296) - REMOTE VALVE BODY ASSEMBLY, ADD ON THIRD OR FOURTH CIRCUIT (08) - HYDRAULICS

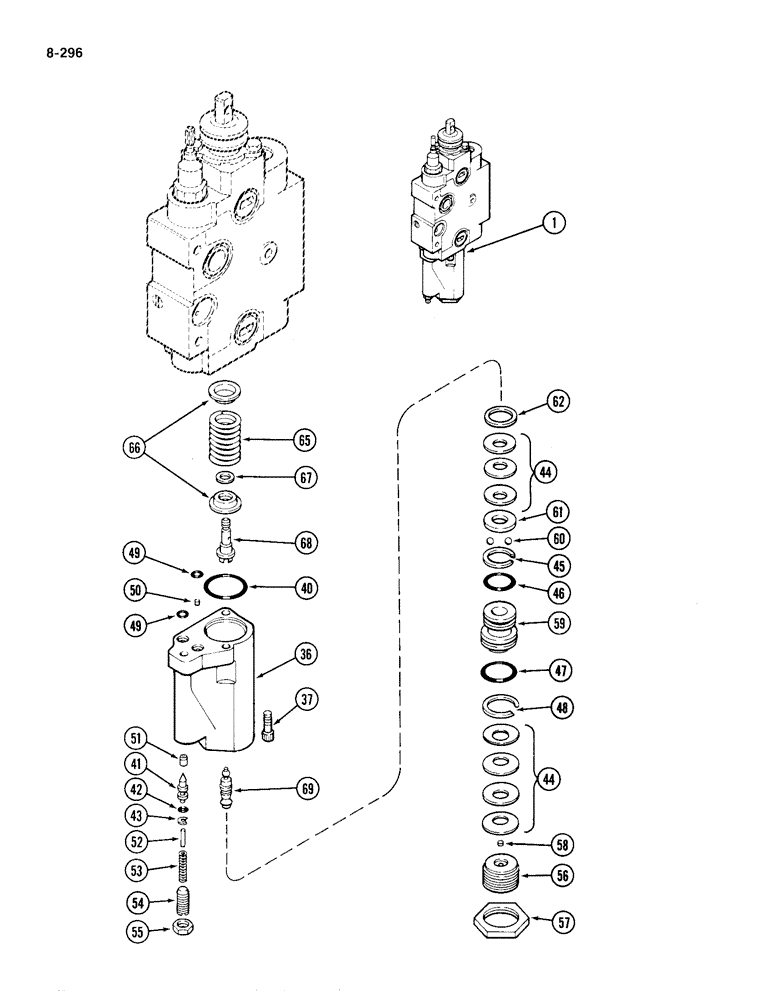

Схема запчастей Case IH 4490 - (8-296) - REMOTE VALVE BODY ASSEMBLY, ADD ON THIRD OR FOURTH CIRCUIT (08) - HYDRAULICS
61
55
62
49
48
49
58
47
52
66
54
44
59
68
46
1
51
65
37
44
50
40
36
42
53
67
45
60
69
57
43
56
41

Артикул

Название

Примечание

Количество

1

A162213

HOUSING

BODY ASSEMBLY - remote hydraulic control valve (Continued from Page 8-295), Includes: Ref. 36 - 69 and 2 - 36 on Figure 8-294

1шт.

36

A47655

HOUSING

ASSEMBLY - detent

1шт.

37

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - cap, 1/4 x 1" NC socket head

3шт.

A47572

KIT

- seal, detent housing, Includes: Ref. 40 - 49

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

- housing

1шт.

41

A47192

SPOOL

POPPET - pilot

1шт.

42

A51274

O-RING,0.145" ID x 0.285" OD

- poppet

1шт.

43

D54860

RING

- backup

1шт.

44

D78437

WASHER

- dished

7шт.

45

A47100

RING

- backup

1шт.

46

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston

1шт.

47

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- piston

1шт.

48

C14656

RING

- backup

1шт.

49

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- housing

2шт.

50

D78456

PLUG

- orifice

1шт.

51

A47201

SEAT

PILOT

1шт.

52

A47104

PIN

- spring guide

1шт.

53

D78468

SPRING

- pilot

1шт.

54

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting, 3/8 x 31/32" NF

1шт.

55

126-163

NUT - 3/8" NF hex

1шт.

56

A47211

PLUG

- detent adjusting

1шт.

57

A47175

LOCK NUT

NUT - lock

1шт.

58

A47206

FILTER

- float

1шт.

59

A47207

PISTON

- float

1шт.

60

211-256

BALL

- chrome steel, 7/32" (5.6 mm) diameter

7шт.

61

A47198

RETAINER

- ball

1шт.

62

D78438

WASHER

- detent, spring washer

1шт.

A47573

KIT

- detent centering spring, Includes: Ref. 65 - 69

1шт.

65

A47177

SPRING

- detent, 1" OD x 2-1/2" free length (25.4 x 63.5 mm)

1шт.

66

A47197

RETAINER

- spring

2шт.

67

A47199

BUSHING

SPACER - detent

1шт.

68

A47193

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

69

A47190

SHAFT

- pivot, detent

1шт.

Выбрано товаров: 33
