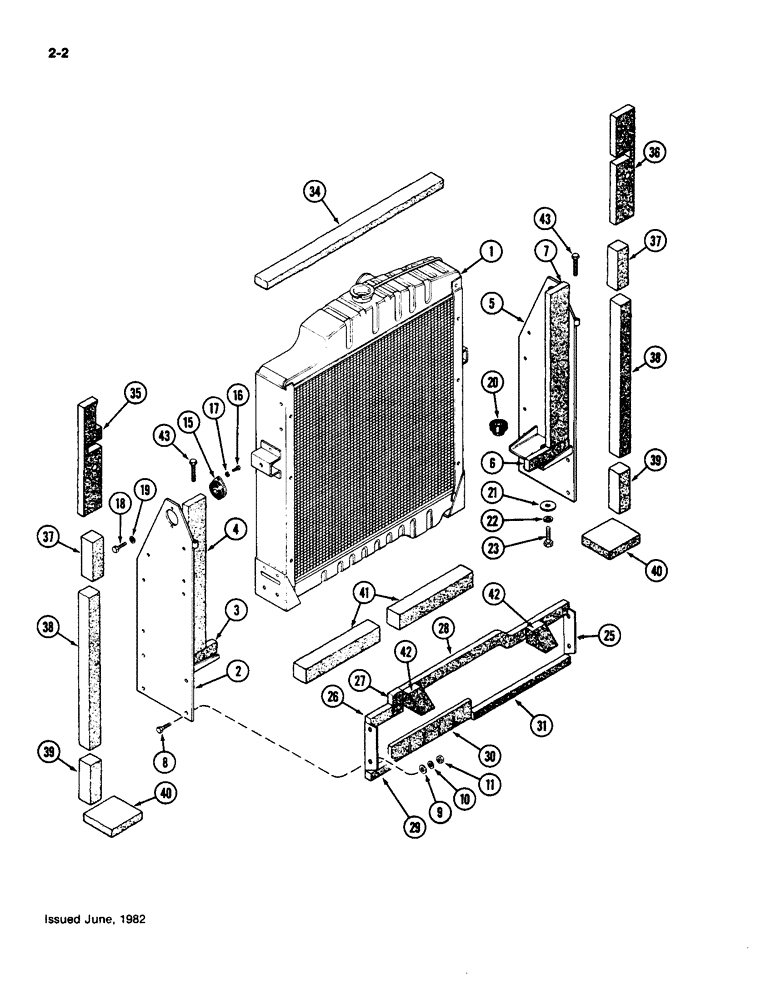

Запчасти Case IH 4490 (2-002) - RADIATOR SUPPORT AND SEALS, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - Engine coolant (See Figure 2-004)

1шт.

2

A151473

SUPPORT

ASSEMBLY - RH side, radiator

1шт.

3

A152089

SEAL

- by-pass, RH, 3/4 x 1-1/2 x 4-9/16" (19.05 x 38.1 x 115.89 mm) (cut from A152094 with pressure sensitive adhesive)

1шт.

4

A152093

SEAL

- inner, 3/4 x 3 x 21-13/16" (19.5 x 76.2 x 554.0 mm)

1шт.

Attach with adhesive 345-22.

1шт.

5

A151476

SUPPORT

ASSEMBLY - LH side, radiator

1шт.

6

A152090

SEAL

- by-pass, LH, 3/4 x 1-1/2 x 6-1/2" (19.05 x 38.1 x 225.1 mm)(Cut from A152094 with pressure sensitive adhesive)

1шт.

7

A152093

SEAL

- inner, 3/4 x 3 x 21-13/16" (19.5 x 76.2 x 554.0 mm)

1шт.

Attach with adhesive 345-22.

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

9

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (front bolts only)

8шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

16

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - #10-24 X 3/8" hex head

4шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

A142542

MOUNTING PARTS

MOUNT - radiator to lower support

2шт.

21

51200247

WASHER

- 9/16 x 1-3/4 x 9/64" (14.29 x 44.45 x 3.57 mm), Spring, Gear Spacer

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

25

A152083

BAFFLE

ASSEMBLY - lower

1шт.

26

A152086

SEAL

- upper RH, 3/4 x 1-1/2 x 3-29/32" (19.5 x 38.1 x 99.44mm)(Cut from A152088)

1шт.

Attach with adhesive 345-22.

1шт.

27

A152087

SEAL

- upper center, 3/4 x 1-1/2 x 2-29/32" (19.5 x 38.1 x 73.82mm)(Cut from A152088)

1шт.

Attach with adhesive 345-22.

1шт.

28

A152088

SEAL

- upper center, 3/4 x 1-1/2 x 28-1/8" (19.5 x 38.1 x 712.2mm)

1шт.

Attach with adhesive 345-22.

1шт.

29

A152091

SEAL

- lower RH, 3/4 x 1 x 3-29/32" (19.5 x 25.4 x 99.22mm)(Cut from A152092)

1шт.

Attach with adhesive 345-22.

1шт.

30

A152085

SEAL

- split, lower center

1шт.

Attach with adhesive 345-22.

1шт.

31

A152092

SEAL

- lower LH, 3/4 x 1 x 15-9/16" (19.5 x 25.4 x 381.0 mm)

1шт.

Attach with adhesive 345-22.

1шт.

34

A149928

SEAL

- top, 1 x 2 x 28-1/2" (25.4 x 50.8 x 724.9 mm)

1шт.

Attach with adhesive 345-22.

1шт.

35

A160475

SEAL

- top RH radiator

1шт.

36

A160476

SEAL

- top LH radiator

1шт.

37

A149923

SEAL

- hood side lower, 1-1/2" square x 5-1/2" (38.1 x 139.7 mm)

2шт.

Attach with adhesive 345-22.

1шт.

38

A149924

SEAL

- side panel, 2" square x 21" (50.8 x 533.4 mm)

2шт.

Attach with adhesive 345-22.

1шт.

39

A149925

SEAL

- lower grille, 1-3/4" square x 4-1/2" (44.45 x 114.3 mm)

2шт.

Attach with adhesive 345-22.

1шт.

40

A149926

SEAL

- bottom corner, 5" square x 1" (127.0 x 25.4 mm)

2шт.

Attach with adhesive 345-22.

1шт.

41

A149927

SEAL

- bottom front, 2" square x 15" (50.8 x 381.0 mm) (Cut from A150488 with pressure sensitive adhesive)

2шт.

42

A165329

FOAM

SEAL - bottom front (Replaces A161361)

4шт.

43

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.
