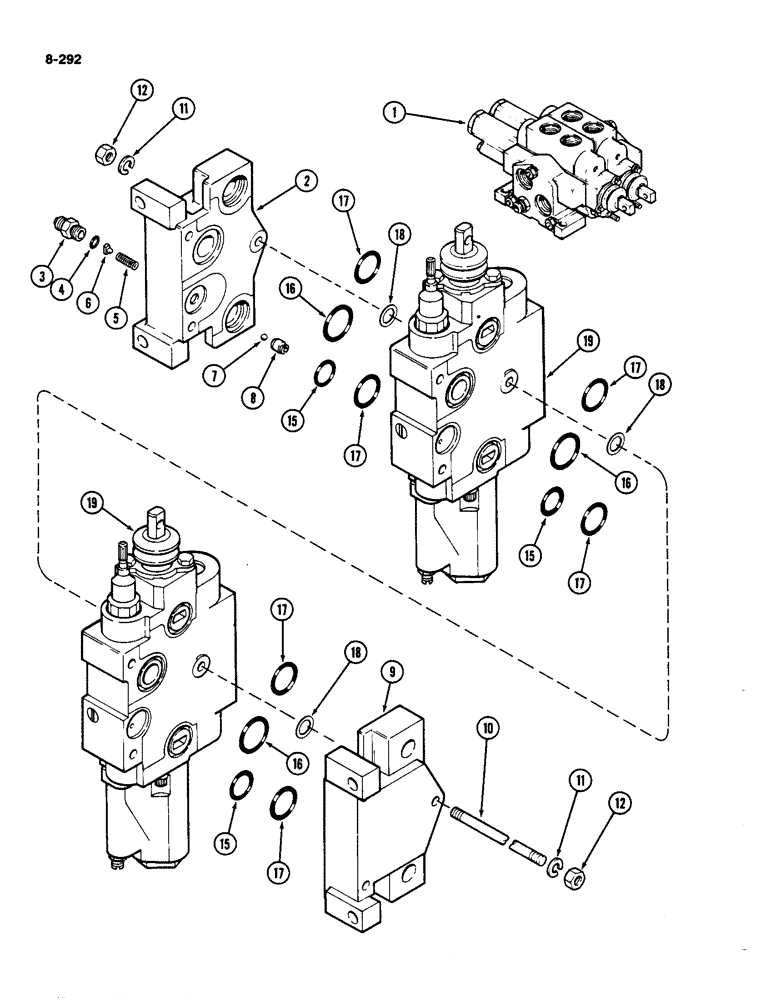

Запчасти Case IH 4490 (8-292) - REMOTE HYDRAULIC VALVE ASSEMBLY, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A162211

VALVE

ASSEMBLY - remote hydraulic (Replaces A141622), Includes: Ref. 2 - 9

1шт.

2

A47169

COVER

ASSEMBLY - inlet, RH side

1шт.

3

A47185

FITTING

- inlet, pilot tube

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

5

A47176

SPRING

- valve, 11/16" (17.53 mm) free length

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6.4 mm) 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- LH side

1шт.

10

A147506

STUD

- 3/8" NC x 8" (203.2 mm) long

3шт.

11

92-6

LOCK WASHER,3/8"

8шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

A47576

KIT

- valve seal, Includes: Ref. 15 - 18

1шт.

15

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8" width (19.05 ID x 3.05 mm width)

1шт.

16

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 ID x 1/8" width (25.4 ID x 3.05 mm width)

2шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 ID x 3/32" width (23.88 ID x 2.29 mm width)

2шт.

18

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.9 x 19.05 x 0.008 mm) .0030" Thk

3шт.

19

A162213

HOUSING

BODY ASSEMBLY - valve (Replaces A162213)(See Figure 8-294)

2шт.
