Запчасти Case IH 4490 (8-286) - REMOTE HYDRAULIC ATTACHMENT, THIRD CIRCUIT, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

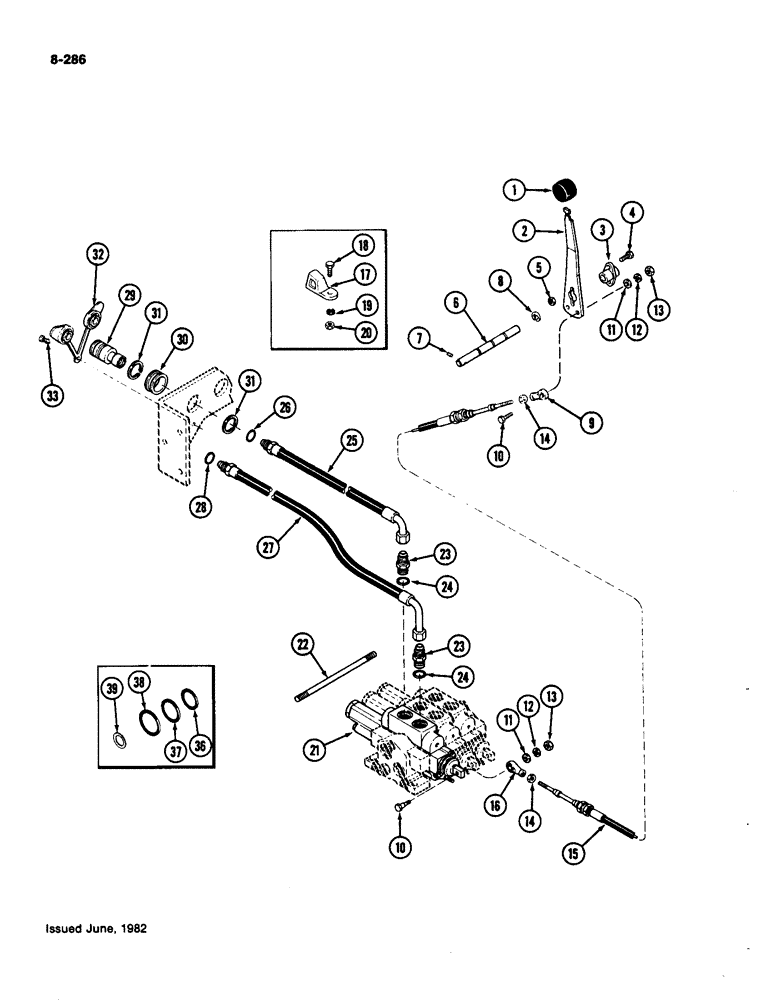

Схема запчастей Case IH 4490 - (8-286) - REMOTE HYDRAULIC ATTACHMENT, THIRD CIRCUIT, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
23
31
30
38
21
24
14
16
37
10
28
2
32
27
33
29
12
25
23
11
31
39
19
7
13
4
5
6
3
12
1
18
13
9
26
24
14
11
20
17
8
36
22
15
10

Артикул

Название

Примечание

Количество

A77389

ATTACHMENT - remote hydraulics (machinery Item)

1шт.

1

A137806

KNOB

- hand lever

1шт.

2

A162361

LEVER

- third remote circuit (inner rear)

1шт.

3

A162299

BEARING,15.95mm ID

- lever pivot

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

A162325

SHAFT

-, Serial Range: lever-console

1шт.

7

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC headless socket

1шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

9

A10329

BALL JOINT,1/4" - 28 x 1"

-, Serial Range: cable-lever

1шт.

10

A148510

BOLT

- shoulder, 1/4" NC

2шт.

11

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.1 x 15.9 x 2 mm)

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

14

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

15

A152757

CABLE

ASSEMBLY - control

1шт.

16

A146456

BALL

JOINT - cable to valve spool

1шт.

17

A141542

LEVER

TAB - lever, float position

1шт.

18

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Replaces A160353 spring washer) 1/4"

1шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, (Replaces 131-71) 1/4"-20, GA

1шт.

21

A162213

HOUSING

BODY ASSEMBLY - remote valve (See Figure 8-294)

1шт.

22

A147507

STUD

- valve body, 3/8" NC x 9-7/8"

3шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8" tube x 7/8"-14 thread, Includes: Ref. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

25

A162486

HOSE

ASSEMBLY - valve to coupling, 19-1/2" (495.3 mm) long, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

27

A162487

HOSE

ASSEMBLY - valve to coupling, 23" (584.2 mm) long, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

29

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away

2шт.

30

A149221

RETAINER

-, Serial Range: coupling-plate

2шт.

31

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

4шт.

32

A145468

PLUG

- dust, coupler

1шт.

33

A162364

FASTENER

- dust plug

1шт.

30

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8" width (19.05 ID x 3.05 mm width)

5шт.

37

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 ID x 3/32" width (23.88 ID x 2.29 mm width)

10шт.

38

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 ID x 1/8" width (25.4 ID x 3.05 mm width)

5шт.

39

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.9 x 19.05 x 0.008 mm) .0030" Thk

5шт.

Выбрано товаров: 38
