Запчасти Case IH 4490 (8-282) - REMOTE HYDRAULIC HOSES AND COUPLINGS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

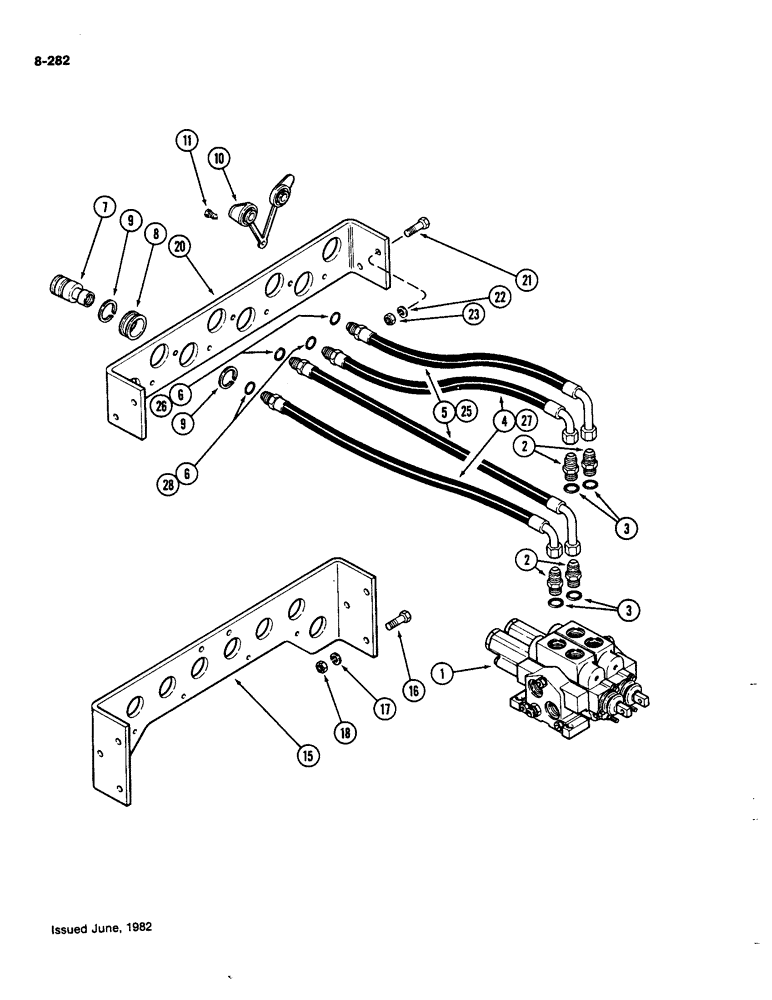

Схема запчастей Case IH 4490 - (8-282) - REMOTE HYDRAULIC HOSES AND COUPLINGS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS
25
9
3
2
23
4
6
20
7
5
1
11
2
15
21
8
18
17
26
27
9
22
6
16
3
10
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A162211

VALVE

ASSEMBLY - remote hydraulic control (See Figure 8-292)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - 5/8" tube x 7/8"-14, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

4

A160402

HOSE

- valve to coupling, 23/1/2" (596.9 mm) long (includes Ref 6 (Prior P.I.N. 8860450), Includes: Ref. 6

2шт.

5

A160401

HOSE

- valve to coupling, 25" (635.0 mm) long (Prior to 8860450), Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

7

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (See Page 8-301)

4шт.

8

A149221

RETAINER

- coupling to rear plate

4шт.

9

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

8шт.

10

A145468

PLUG

- dust, coupling

2шт.

11

A162364

FASTENER

- dust plug (Replaces 113-4)

2шт.

15

A149229

PLATE

- rear, coupling mounting (Prior P.I.N. 8860450)

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

20

A165362

PLATE

- mounting, remote coupling (P.I.N.8860450 and after) (Replaces A162453)

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

25

A162487

HOSE

ASSEMBLY - valve to coupling, 23" (584.2 mm) long (P.I.N. 8860450 and after), Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

27

A162486

HOSE

ASSEMBLY - valve to coupling, 20-1/2" (520.7 mm) long (P.I.N. 8860450 and after), Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.
