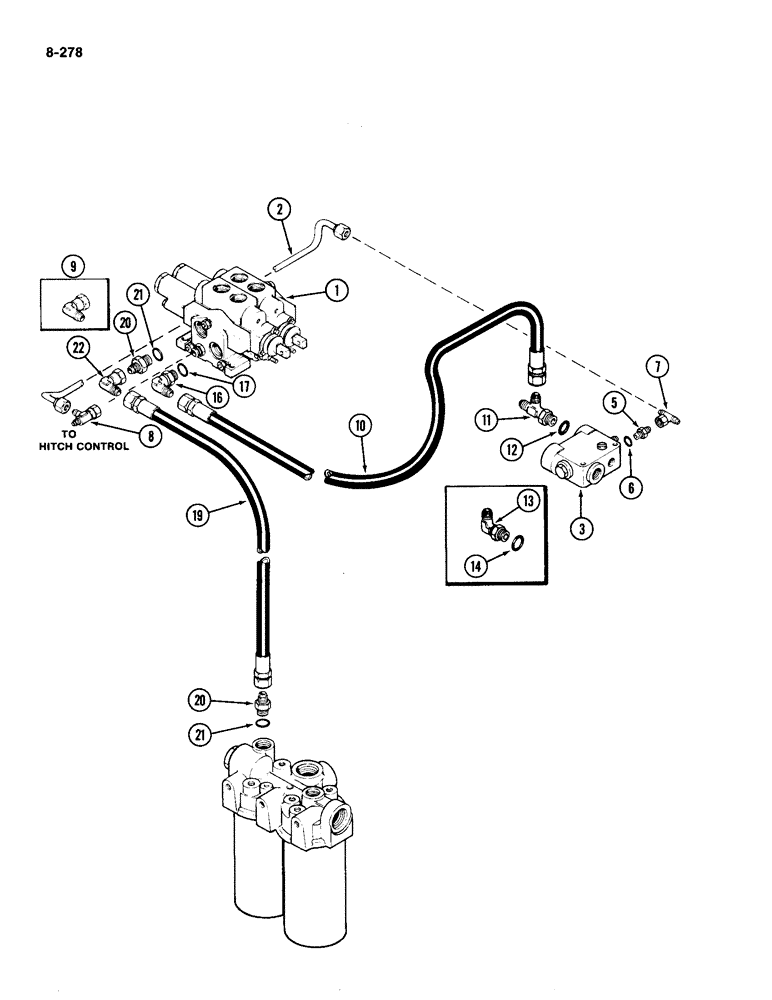

Запчасти Case IH 4490 (8-278) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

A162211

VALVE

ASSEMBLY - control, two circuit system (Replaces A141622) (See Figure 8-292)

1шт.

2

A160254

TUBE

- priority valve to remote valve

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-146)

1шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - 3/8 tube x 1/4" tube (at priority valve), Includes: Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

7

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR - tee 3/8 tube x 3/8 tube x 9/16"-16 (at priority valve)

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

CONNECTOR - tee 3/8 tube x 3/8 tube x 9/16"-18 (at priority valve)

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees, 3/8 tube x 9/16"-18 (at remote valve without hitch)

1шт.

10

A140575

HOSE

Priority Valve to Remote Valve

1шт.

11

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tee 3/4" tube 3/4" tube x 1-1/16"-12 (at priority valve with hitch), Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, 3/4" x 1-1/16" (at priority valve w/hitch), Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 764" width (23.47 ID x 2.95 mm width)

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degrees, 3/4" tube x 1-1/16"-12 (at remote valve), Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

19

A160403

HOSE,0.75" ID x 37.00", SAE 100R4

- Remote Valve to Filter 0.75" ID x 37.00", SAE 100R4

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/4" tube x 1-1/16" (at remote valve and filter), Incl. Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4" tube (at remote valve) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.
