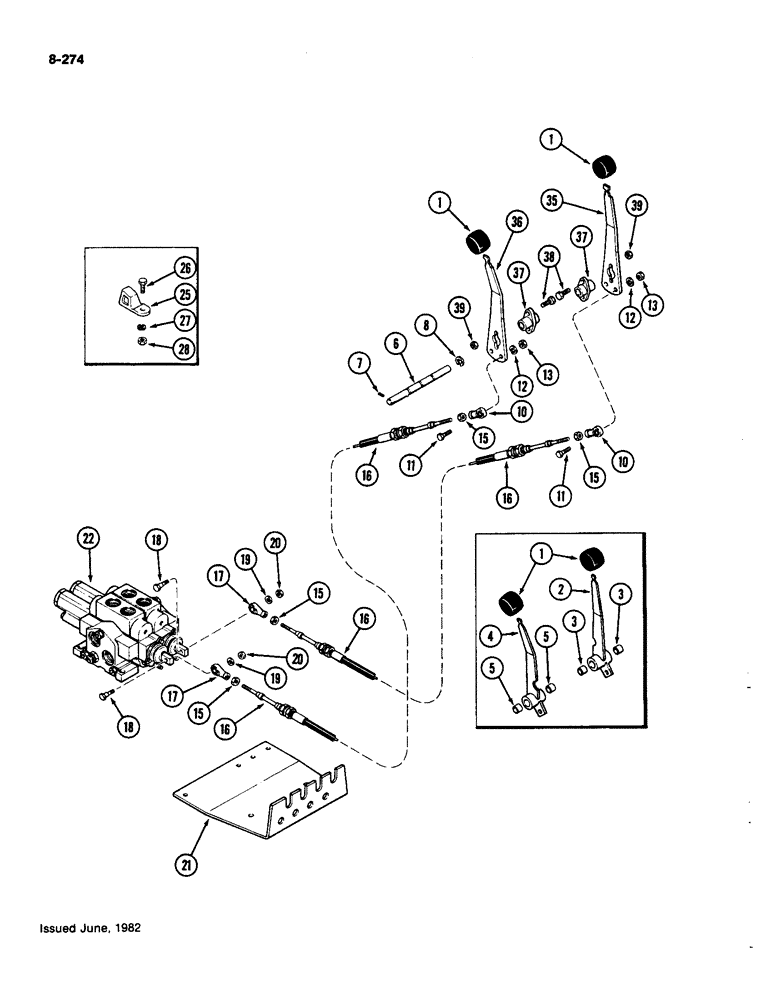

Запчасти Case IH 4490 (8-274) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A137806
KNOB
- hand lever
2шт.
2
A161022
LEVER
ASSEMBLY - inner (Prior to P.I.N. 8860450), Includes: Ref. 3
1шт.
3
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- lever pivot
2шт.
4
A161032
LEVER
ASSEMBLY - outer (Prior to P.I.N. 8860450), Includes: Ref. 5
1шт.
5
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- lever pivot
2шт.
6
A161039
SHAFT
-, Serial Range: lever-console
1шт.
7
178-24
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set, 1/4 x 1/4" NC headless socket
1шт.
8
A27785
CIRCLIP,#62, .480" Dia, E-Type
Ring, Retaining, #62, .480" Dia, E-Type
2шт.
10
A146456
BALL
JOINT - control, Serial Range: cable-lever
2шт.
11
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
12
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
13
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
15
425-154
JAM NUT,Jam, 1/4"-28, G5
6шт.
16
A152757
CABLE
- control
2шт.
17
A146456
BALL
JOINT - control cable to valve spool
2шт.
18
A148510
BOLT
- shoulder (1/4" NC)
2шт.
19
195-518
WASHER,1/4", SAE
- 9/32 x 5/8 x 5/64" (7.1 x 15.9 x 1.9 mm)
6шт.
20
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
21
A152128
BRACKET
- anchor, control cable
1шт.
22
REF
INSTRUCTION
VALVE ASSEMBLY - remote hydraulic (See Figure 8-292)
1шт.
25
A141542
LEVER
TAB - lever, float position
2шт.
26
113-66
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
27
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, (Replaces A160353 spring washer) 1/4"
2шт.
28
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, (Replaces 131-71) 1/4"-20, GA
2шт.
35
A162361
LEVER
- inner (P.I.N. 8860450 and after)
1шт.
36
A162362
LEVER
- outer (P.I.N. 8860450 and after)
1шт.
37
A162299
BEARING,15.95mm ID
- control lever pivot
2шт.
38
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
39
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
4шт.
Выбрано товаров: 29
