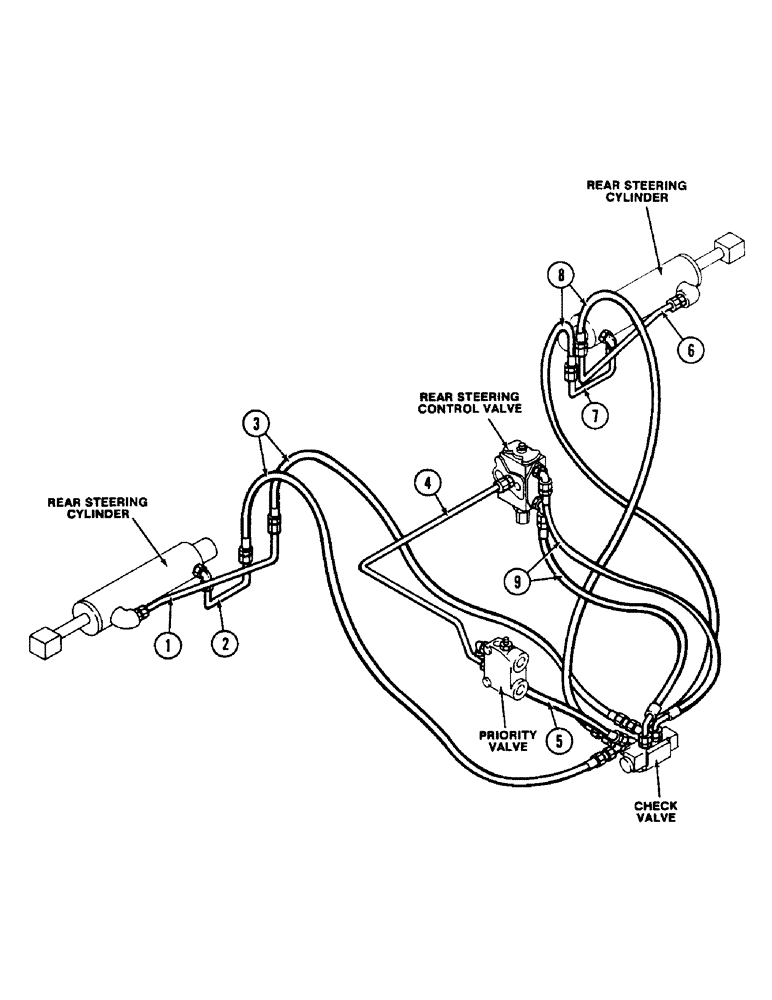

Запчасти Case IH 4490 (1-018) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX
4
3
7
9
6
2
1
5
8
№
Артикул
Название
Примечание
Количество
1
Cylinder Hose to Right Hand Steering Tube, Page 5-135
1шт.
2
Valve Hose to Cylinder Tube, Page 5-135
1шт.
3
Check Valve to Cylinder Tube Hose, Page 5-135
1шт.
4
Priority Valve to Steering Control Valve Tube, Page 5-133
1шт.
5
Priority Valve to Check Valve Hose, Page 5-133, 135
1шт.
6
Cylinder Hose to Left Hand Steering Tube, Page 5-135
1шт.
7
Valve Hose to Cylinder Tube, Page 5-135
1шт.
8
Check Valve to Cylinder Tube Hose, Page 5-135
1шт.
9
Control Valve to Check Valve Hoses, Page 5-133, 135
1шт.
Выбрано товаров: 9
