Запчасти Case IH 4490 (8-272) - TRIPLE HYDRAULIC PUMP ASSEMBLY, GEAR PUMP SECTION (08) - HYDRAULICS

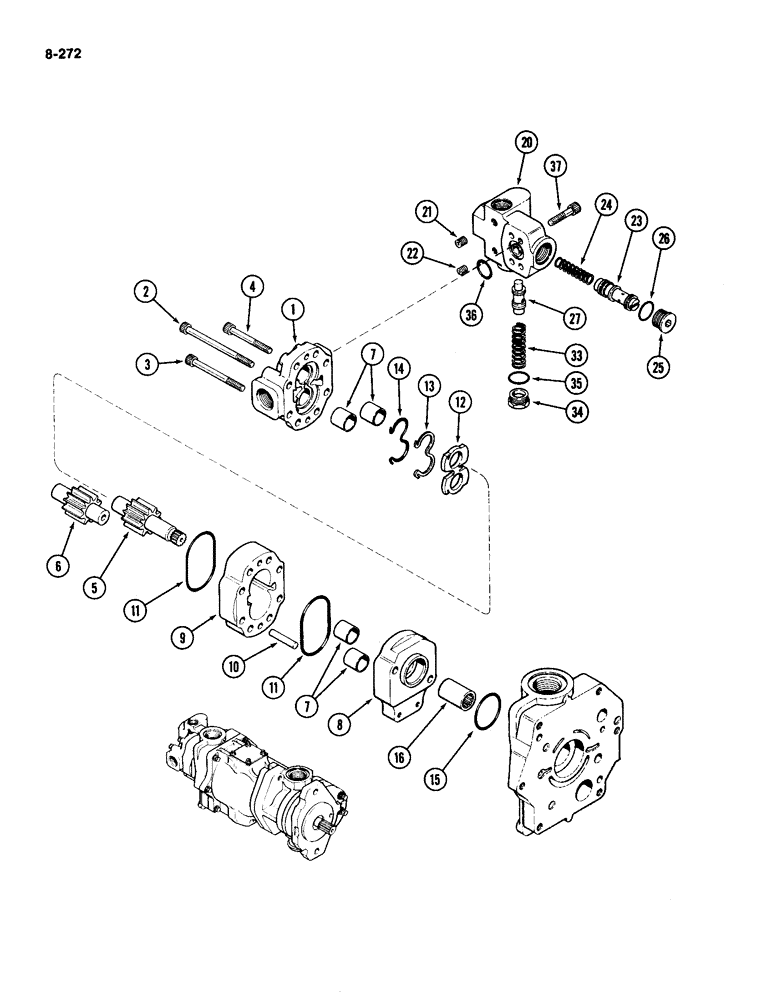

Схема запчастей Case IH 4490 - (8-272) - TRIPLE HYDRAULIC PUMP ASSEMBLY, GEAR PUMP SECTION (08) - HYDRAULICS
20
24
26
25
36
23
11
4
13
11
34
10
21
6
16
8
33
27
5
1
3
37
35
22
7
15
14
7
12
2
9

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - triple hydraulic (Continued from Figure 8-270) (P.I.N. 8860322 and after)(Order A149963 and A47882, Ref 27), Includes: Ref. 1 - 16

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic (Prior to P.I.N. 8860322), Includes: Ref. 1 - 16

1шт.

129330A1R

REMAN-HYD PUMP

4490 Prior to P.I.N. 8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

A48145

PUMP

ASSEMBLY - gear, steering hydraulic (Replaces A47638), Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - cap, mounting

2шт.

3

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

4шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - idler -

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - gear shaft

4шт.

8

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body (Order A47643)

2шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - rear (Order A47643)

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - teflon (Order A47643)

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rubber (Order A47643)

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

15

F98069

O-RING

- gear pump to piston pump (See A47643)

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

16

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump drive to piston pump

1шт.

A47643

SEAL

KIT - seal, gear pump, Includes: ref. nos. 11, 12, 13, 14, 15

1шт.

A48144

VALVE

ASSEMBLY - flow divider (P.I.N. 8860322 and after), front steer, Includes: Ref. 20 - 37

1шт.

A47642

VALVE

ASSEMBLY - flow divider (Prior to P.I.N. 8860322), front steer, Includes: Ref. 20 - 37

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

221-1849

PLUG

- 1/8" PT socket head

1шт.

22

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" PT socket head

1шт.

23

A47647

SPOOL

- flow divider

1шт.

24

A47648

SPRING

- flow divider spool

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

27

A47882

SPOOL

ASSEMBLY - relief valve (P.I.N. 8860322 and after)

1шт.

27

A47650

SPOOL

ASSEMBLY - relief valve (Prior to P.I.N. 8860322)

1шт.

33

A47651

SPRING

- relief valve

1шт.

34

A47652

PLUG

ASSEMBLY - relief valve, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

36

S48928

O-RING

-, Serial Range: valve-pump

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

37

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW, Hex Soc Hd, M8 x 35, 12.9

4шт.

A47653

KIT

- seal, flow divider valve, front steer, Includes: ref. nos. 26, 35, 36

1шт.

Выбрано товаров: 47
