Запчасти Case IH 4490 (8-266) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

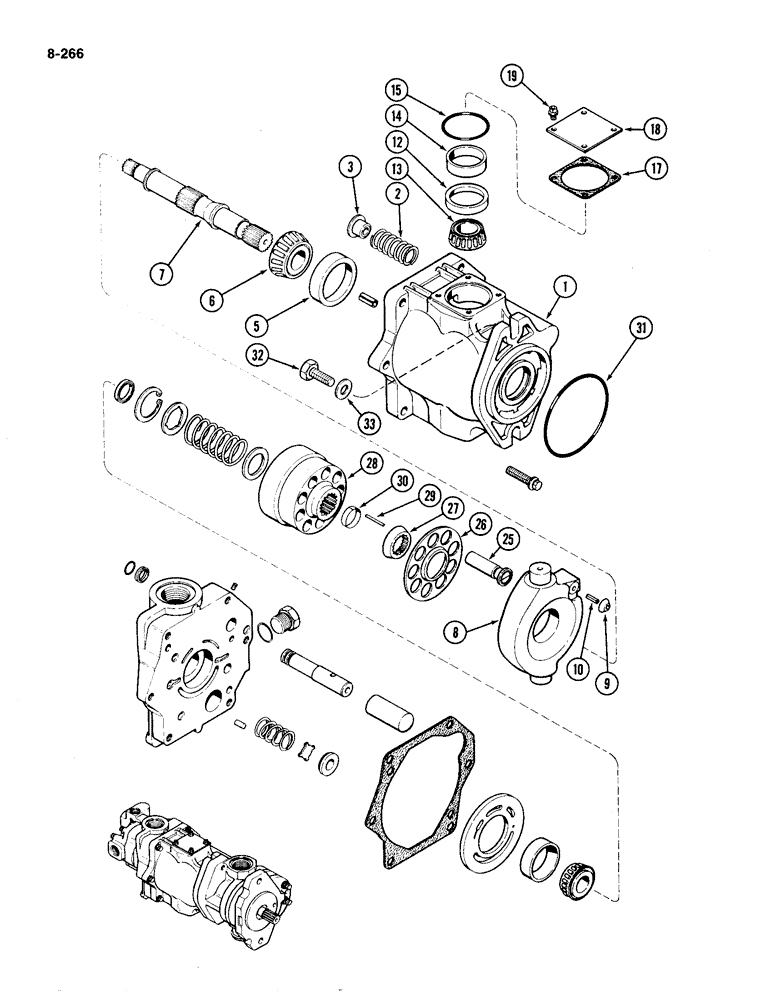

Схема запчастей Case IH 4490 - (8-266) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS
30
1
18
3
6
26
9
31
27
7
25
32
5
13
29
12
17
19
10
8
2
15
14
28
33

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - triple hydraulic (Continued from Figure 8-264) (P.I.N. 8860322 and after)(Order A149963 and A47882, Page 9-273), Includes: Ref. 1 - 33, 35 - 63 on Figure 8-268, and kit

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic (Prior to P.I.N. 8860322)

1шт.

129330A1R

REMAN-HYD PUMP

4490 Prior to P.I.N. 8860322 (1/79-12/83), Center Section (Piston Pump) Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A47278

HOUSING

BODY - piston pump

1шт.

2

A47281

SPRING

- housing

1шт.

3

A47282

PLUG

SEAT - spring

1шт.

5

D59595

TAPERED BEARING

CUP - front bearing, 2-7/16" (61.91 mm) OD

1шт.

6

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - front bearing, 1" (25.4 mm) ID

1шт.

7

A47634

SHAFT

- drive, piston pump

1шт.

8

A47284

YOKE

- swing

1шт.

9

A47283

SEAT

- spherical

1шт.

10

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

12

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - yoke pivot bearing, 1-63/64" (50.4 mm) OD

2шт.

13

D53168

TAPERED BEARING

CONE - yoke pivot bearing

2шт.

14

A47286

SPACER

- bearing

2шт.

15

S80753

WASHER

O-RING - cover

2шт.

Part of Seal Kit, P/N A47567

1шт.

A47287

KIT

- shim, bearing, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.003" (0.76 mm)(3 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.005" (0.127 mm)(2 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (0.254 mm)(2 in kit)

1шт.

18

A47288

COVER

- housing

2шт.

19

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

25

A47334

PACKAGE

KIT - piston (includes 9 pistons and shoes)

1шт.

26

A47292

PLATE

- shoe, piston pump

1шт.

27

A47293

WASHER

- spherical

1шт.

28

A47295

BLOCK

- cylinder

1шт.

29

A47296

PIN

- cylinder block

3шт.

30

A47297

SNAP RING,7.11mm Thk, Int

- pin

1шт.

31

S5748

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- charge pump to piston pump

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32" (13.5 x 27 x 2.4 mm)

2шт.

A47567

KIT

- seal and gasket, includes: ref. no. 15, See Figure 8-270

1шт.
