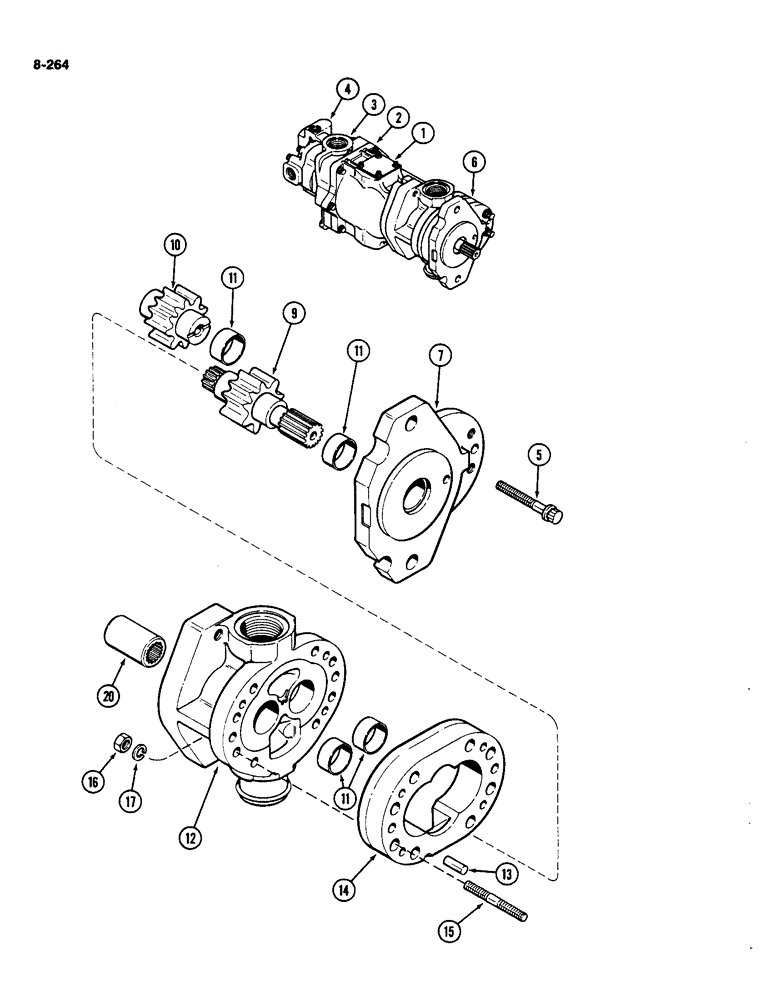

Запчасти Case IH 4490 (8-264) - TRIPLE HYDRAULIC PUMP ASSEMBLY, CHARGE PUMP SECTION (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - triple hydraulic (P.I.N. 8860322 and after) (Order A149963 and A47882, Figure 8-272), Includes: Ref. 1 - 17

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic (Prior to P.I.N. 8860322), Includes: Ref. 1 - 17

1шт.

129330A1R

REMAN-HYD PUMP

4490 Prior to P.I.N. 8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston (See Figure 8-266)

1шт.

2

A47637

HYDRAULIC PUMP

COMPENSATOR ASSEMBLY - (See Figure 8-270)

1шт.

3

A48145

PUMP

ASSEMBLY - gear (See Figure 8-272)(Replaces A47638)

1шт.

4

A47642

VALVE

ASSEMBLY - flow divider, front steer (See Figure 8-272)

1шт.

5

A47639

BOLT,12 Pt Flg, M8 x 110mm, Cl 12.9

- cap, 8 x 110 mm

2шт.

6

A47640

PUMP

ASSEMBLY - charge, Includes: Ref. 7 - 17

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - gear

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL - body

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - center section

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - body

4шт.

16

NSS

NOT SOLD SEPARAT

NUT - stud

4шт.

17

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

20

A47641

COUPLING, BREAK AWAY

COUPLING - charge pump to piston pump

1шт.
