(1-016) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS

Запчасти Case IH 4490 (1-016) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS (00) - PICTORIAL INDEX

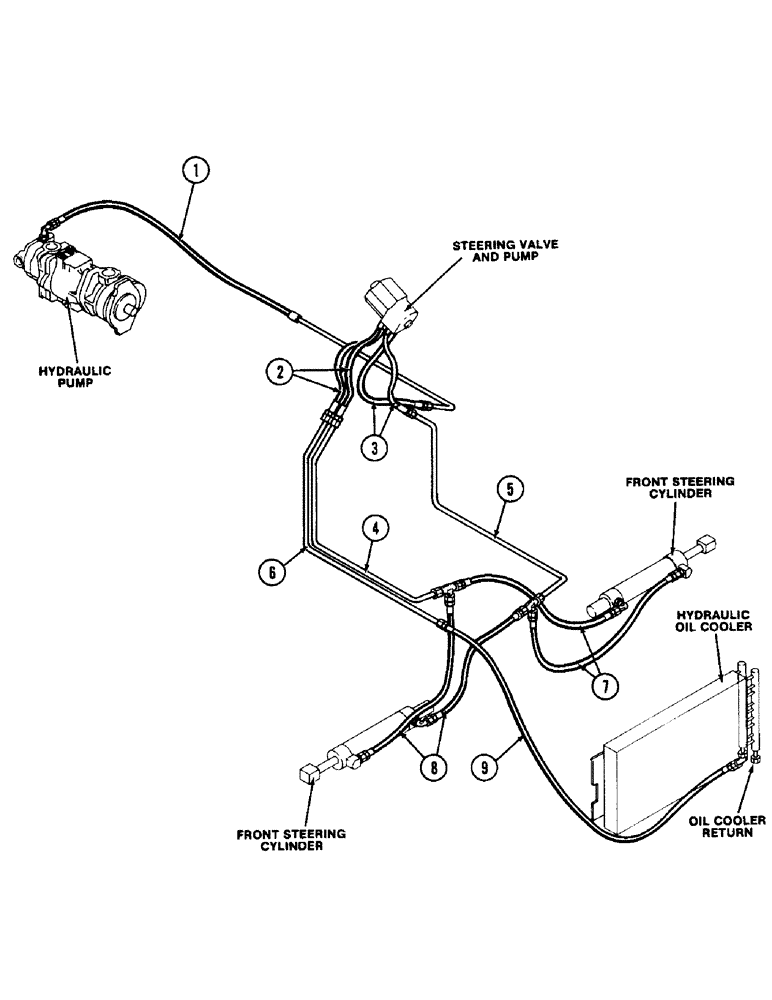

Схема запчастей Case IH 4490 - (1-016) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS (00) - PICTORIAL INDEX
3
9
6
7
4
8
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hydraulic Pump Pressure Hose, Page 5-125

1шт.

2

Steering Valve Port Hoses, Page 5-125

1шт.

3

Steering Valve Port Hoses, Page 5-125

1шт.

4

Right Hand Steering Cylinder Tube, Page 5-125

1шт.

5

Left Hand Steering Cylinder Tube, Page 5-125

1шт.

6

Oil Cooler Inlet Tube, Page 5-125

1шт.

7

Steering Cylinder Hoses, Page 5-125

1шт.

8

Steering Cylinder Hoses, Page 5-125

1шт.

9

Oil Cooler Inlet Hose, Page 8-255

1шт.
