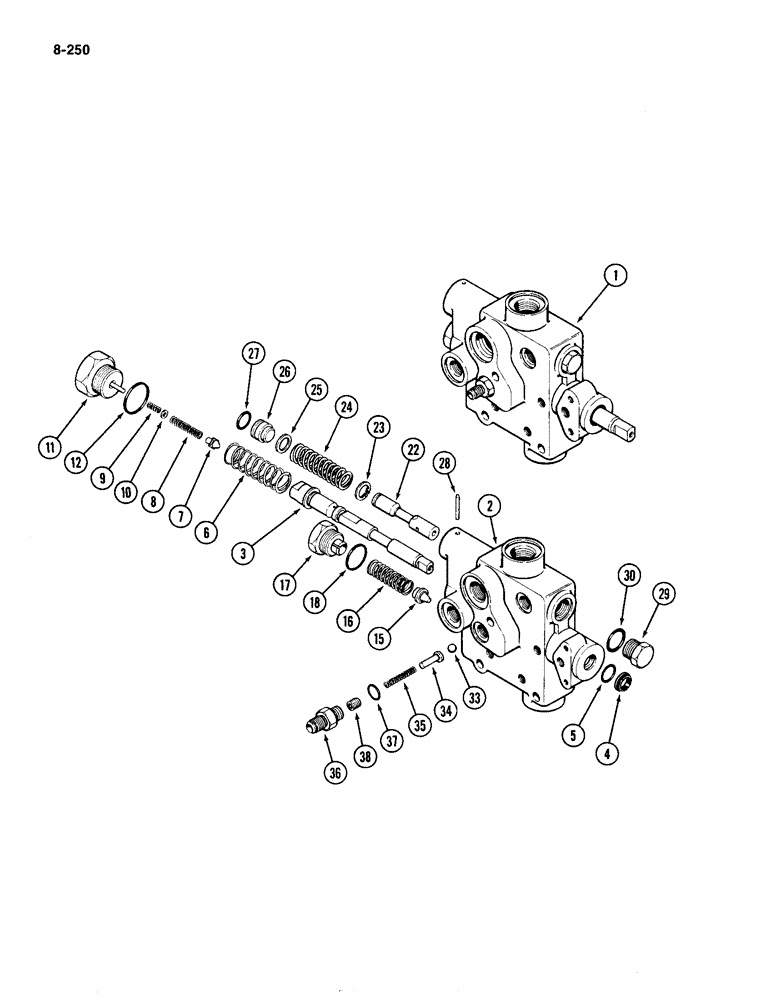

Запчасти Case IH 4490 (8-250) - HYDRAULIC PRESSURE REGULATOR VALVE (08) - HYDRAULICS

1

A139911

VALVE

ASSEMBLY - regulator, hydraulic pressure

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - (Includes relief valve seat)

1шт.

3

A139912

SPOOL

- control, PTO

1шт.

4

A63660

RING

- wiper, control spool

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool

1шт.

6

A139739

SPRING

- return, control spool

1шт.

7

A61991

POINT

- modulator, control spool

1шт.

8

A141647

SPRING

- modulator, 1-55/64" (47.23 mm) free length

1шт.

9

A139738

SPRING

- modulator, 5/8" (15.87 mm) free length

1шт.

10

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

11

A139689

PLUG

ASSEMBLY - modulator (1-3/16"-12 hex), Includes: Ref. 12

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64" width (26.59 ID x 2.95 MM width)

1шт.

15

A60687

VALVE POPPET

POPPET - relief valve

1шт.

16

A602876

SPRING - relief valve, 1-3/16" (30.16 mm) free length

1шт.

17

A139173

PLUG

ASSEMBLY - relief valve (7/8"-14 hex), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

22

A139708

SPOOL

- pressure regulator

1шт.

23

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

24

A60274

SPRING

- regulator spool, 2-7/8" (47.62 mm) free length

1шт.

25

A149281

SHIM

- regulator spring, 1/64" (0.40 mm)

1шт.

20

A149282

PLUG

- regulator spring

1шт.

27

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- plug

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4"

1шт.

29

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - 3/4"-16 hex, Incl. Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

33

211-28

BALL,13/32" Dia

- detent, 13/32" (10.31 mm)

1шт.

34

A161859

SPRING

PIN - detent spring

1шт.

35

A141647

SPRING

- detent, 1-55/64" (47.23 mm) free length

1шт.

36

A160659

HYD CONNECTOR

CONNECTOR ASSEMBLY - clutch tube (9/16"-18), Includes: Ref. 38

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

38

A160657

SET SCREW,3/8" - 16

- set

1шт.
