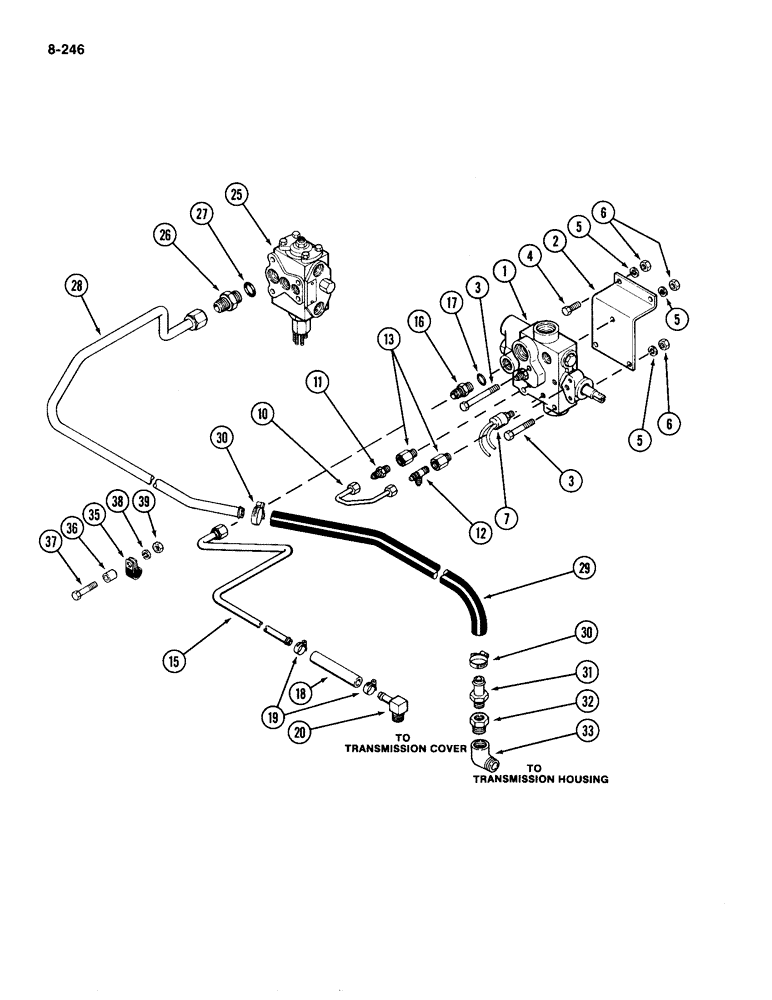

Запчасти Case IH 4490 (8-246) - HYDRAULIC PRESSURE REGULATOR VALVE CIRCUIT, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 8-250)

1шт.

2

A151099

BRACKET

- mounting regulator valve

1шт.

3

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

5шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

7

A162422

SWITCH

- sender, transmission oil pressure (See Figure 4-074) (Replaces A145119)

1шт.

10

A152299

TUBE

- bypass

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/8" PT x 7/16"-20

1шт.

12

218-611

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Run

- 1/4" tube x 1/8" PT x 7/16"-20

1шт.

13

217-1

ADAPTER

- brass, 1/8" PT

2шт.

15

A161156

TUBE

- return, regulator valve to transmission cover

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16, Incl. Ref 17

1шт.

18

A161153

SLEEVE,0.50" ID x 5.00", SAE30 R2, type 1, per J30

HOSE 0.50" ID x 5.00", SAE 30R2, type 1, per J30 - Return tube to cover

1шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 x 27.39 mm)

2шт.

20

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW - 90 degree, 1/2" hose x 1/2" PT

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - control, rear steer (See Figure 5-148)

1шт.

26

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16, Includes: Ref. 27

1шт.

28

A161154

TUBE

- return, rear steer valve to transmission sump

1шт.

29

A160209

HYDRAULIC HOSE,19 mm ID x 838.20 mm, SAE 30R2 TYPE 1 SAE J30

0.75" ID x 33.00", SAE 30R2 - Return to Sump (With PTO)

1шт.

29

A160450

HOSE,0.75" ID x 45.00", SAE 30R2 TYPE 1 PER SAE J30

0.75" ID x 45.00", SAE30 R2 type 1 per J30 - Return to Sump (Without PTO)

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 mm)

2шт.

31

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - 3/4" hose x 3/4" PT

1шт.

32

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer, 3/4" x 1" PT

1шт.

33

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 1" PT (at transmission case)

1шт.

35

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- return tube

1шт.

36

G49622

SPACER,5/8" Tube x 1 7/16"

- clamp, 1-7/16" (37 mm) long (Replaces A140434)

1шт.

37

113-644

SCREW

BOLT - 3/8 x 2" NC hex (Grade 5)

1шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
