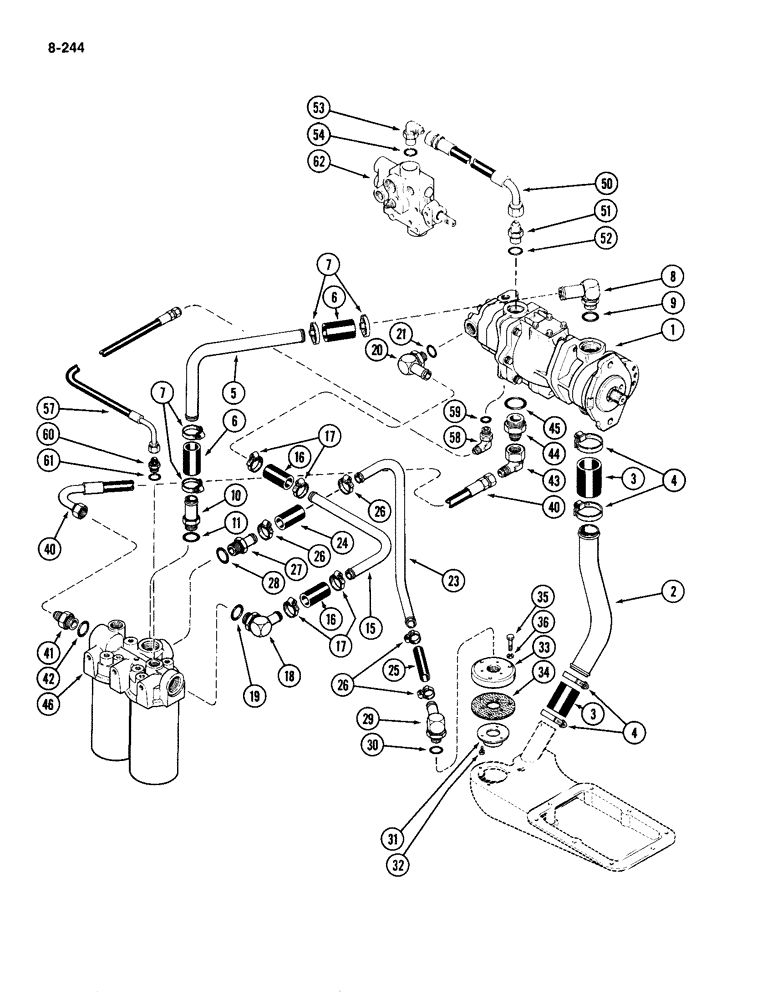

Запчасти Case IH 4490 (8-244) - HYDRAULIC CHARGE SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-264)

1шт.

2

A160168

TUBE

- suction, Serial Range: sump-pump

1шт.

3

A144526

HOSE

- suction tube, 2" ID x 3-1/32" long (50.8 x 76.81 mm)

2шт.

4

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 2-1/16" to 3"

4шт.

5

A160212

TUBE

- outlet, Serial Range: pump-filter

1шт.

6

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- outlet tube (Replaces A160210) 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

8

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded (At pump), Includes Ref. 9

1шт.

9

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8" width (43.69 ID x 3.00 mm width)

1шт.

10

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - 1-1/4" hose x 1-5/8"-12 (at filter), Incl. Ref. 11

1шт.

11

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8" width (43.69 ID x 3.00 mm width)

1шт.

15

A160213

TUBE

- filter to gear pump

1шт.

16

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Gear Pump Tube

2шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.

18

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW ASSEMBLY - 90 degrees, 1" hose x 1-5/8"-12 (at filter), Includes: Ref. 19

1шт.

19

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8" width (43.69 ID x 3.00 mm width)

1шт.

20

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Assy (At pump), Includes Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

23

A160214

TUBE

- filter to pressure relief valve

1шт.

24

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Tube to Filter

1шт.

25

L60332

HOSE

- tube to relief valve, 1" ID x 5" long (25.4 x 127.9 mm)

1шт.

Ref #25 - Use H307926 and cut to length

1шт.

26

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.

27

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

(at filter), Includes Ref. 28 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

28

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8" width (43.69 ID x 3.00 mm width)

1шт.

29

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degrees, 1" hose x 1-5/16"-12 (at relief valve)

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width), Includes: Ref. 31

1шт.

31

A152794

VALVE

- relief, filter oil pressure (in transmission sump)

1шт.

32

113-37

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

- lock, 1/4 x 3/4" NC hex (Grade 5)

3шт.

33

A152779

HOUSING

- pressure relief valve

1шт.

34

A152826

GASKET

-, Serial Range: housing-sump

1шт.

35

113-157

BOLT,Locking, 5/16" - 18 x 1-1/2", Gr 5

- lock, 5/16 x 1-1/2" NC hex (Grade 5)

3шт.

36

92-5

LOCK WASHER,5/16"

3шт.

40

L101916

HOSE,1.00" ID x 28.00"

Filter to Piston Pump (Replaces A151127) 1.00" ID x 28.00"

1шт.

41

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - 1" tube x 1-5/8"-12 (at filter), Includes: Ref. 42

1шт.

42

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/21 ID x 1/8" width (43.69 ID x 3.00 mm width)

1шт.

43

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees, 1" tube x 1-5/16"-12

1шт.

44

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - elbow to pump (1-5/16"-12 x 1-7/8"-12), Includes: Ref. 45

1шт.

45

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 2-3/32 ID x 1/8" width (53.18 ID x 3.17 mm width) (replaces 218-5349)

1шт.

46

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-252)

1шт.

50

A148749

HOSE

- outlet, piston pump to regular valve

1шт.

51

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/4" tube x 1-5/16"-12 (at pump), Incl. Ref. 52

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64" width (29.74 ID x 2.95 mm width)

1шт.

53

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degrees, 3/4" tube x 1-1/16"-12 (at valve), Incl. Ref. 54

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 mm width)

1шт.

57

A151831

HOSE

- gear, Serial Range: pump-filter

1шт.

58

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube (at pump), Includes: Ref. 59 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

60

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 1/2" tube x 1-1/16" (at filter), Includes: Ref. 61

1шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" (23.47 ID x 2.95 mm width)

1шт.

62

REF

INSTRUCTION

VALVE ASSEMBLY - regulator (See Figure 8-250)

1шт.

59

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
